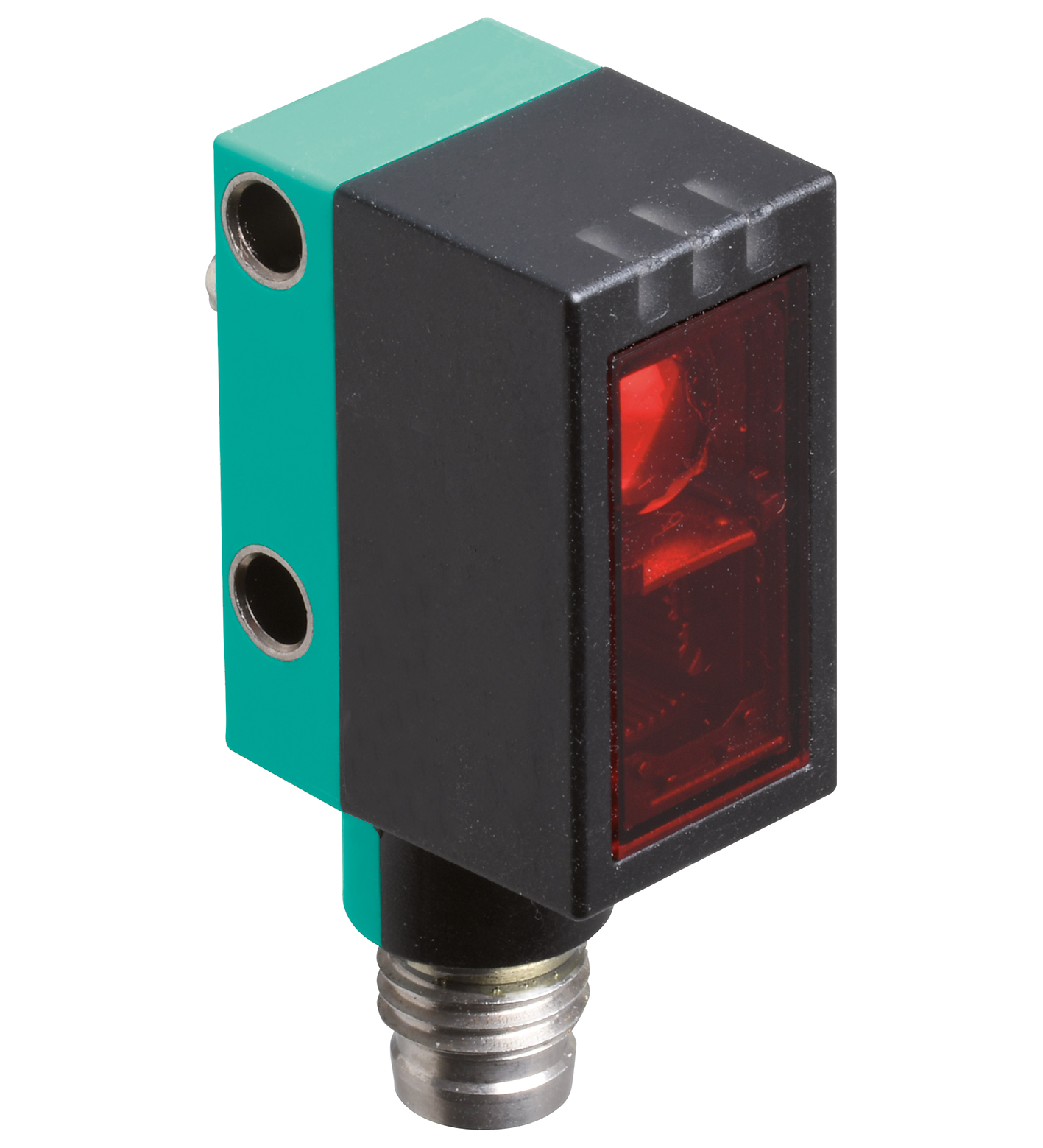

OBR7500-R101-P1-Y0447

Retroreflective sensor. Retroreflective sensor with polarization filter, Miniature design with versatile mounting options, Extended temperature range<br>-40 °C ... 60 °C, High degree of protection IP6...

Retroreflective sensor. Retroreflective sensor with polarization filter, Miniature design with versatile mounting options, Extended temperature range<br>-40 °C ... 60 °C, High degree of protection IP69K. Effective detection range: 0 ... 7.5 m. Reflector distance: 0.03 ... 7.5 m. Threshold detection range: 10 m. Reference target: H85-2 reflector. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Polarization filter: yes. Diameter of the light spot: approx. 65 mm at a distance of 1 m. Opening angle: 3.7 °. Ambient light limit: EN 60947-5-2. MTTFd: 724 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: Green LED:Permanently lit - power onFlashing (4 Hz) - short circuit. Function indicator: Yellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA at 24 V supply voltage. Protection class: III. Switching type: The default setting is: Q - Pin4: NPN normally closed / light-on, PNP normally open / dark-on. Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Communication interface: IEC 61131-9. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67 / IP69 / IP69K. Connection: M8 x 1 connector, 3-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 15 g. Dimensions: . Height39.5 mmWidth13.9 mmDepth18.3 mm: . Height: 39.5 mm. Width: 13.9 mm. Depth: 18.3 mm. Cable length: 0.3 m

Brand	Pepperl Fuchs
Lifecycle status	active
