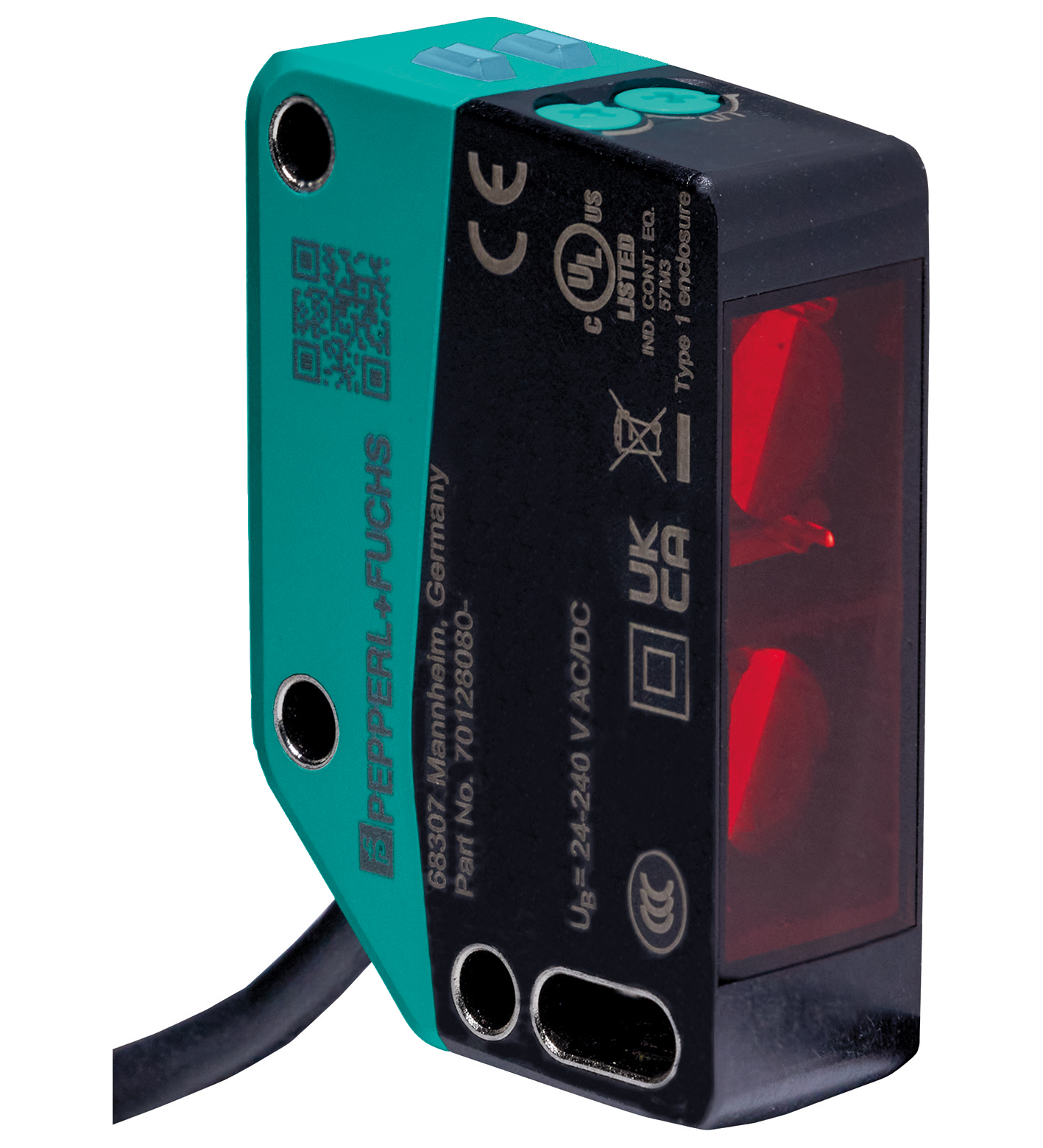

OBT1250-R202-K2

Triangulation sensor (BGS). Version for universal voltages, Medium design with versatile mounting options, Degree of protection IP67, Mounting on full metal sockets, Very bright, highly visible light...

Triangulation sensor (BGS). Version for universal voltages, Medium design with versatile mounting options, Degree of protection IP67, Mounting on full metal sockets, Very bright, highly visible light spot. Detection range: 0 ... 1250 mm. Detection range min.: 0 ... 200 mm. Detection range max.: 0 ... 1250 mm. Adjustment range: 200 ... 1250 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Black-white difference (6 %/90 %): < 40 % at 1250 mm. Diameter of the light spot: approx. 50 mm at a distance of 1250 mm. Opening angle: 3 °. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 642 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: Power on. Function indicator: LED yellow:constantly on - object detectedconstantly off - object not detected Flashing (8 Hz) - fault detected, the outputs maintain the status. Control elements: Light-on/dark-on changeover switch. Control elements: Sensing range adjuster. Operating voltage: 24 ... 240 V AC/DC. No-load supply current: < 30 mA at 24 V Operating voltage. Protection class: II. Rated insulation voltageUi250 VRated impulse withstand voltageUimp2500 V: Ui. Rated insulation voltage: 250 V. Rated impulse withstand voltage: 2500 V. Power consumption: ≤ 3.5 VA. Fuse: Safety fuse ≤ 2 A (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.. Switching type: The switching type of the sensor is adjustable. The default setting is: Q - BK: normally-open / light-on /Q - GY: normally-closed / dark-on C - WH: Common. Signal output: Relay, 1 alternator. Switching voltage: max. 240 V AC/DC. Switching current: max. 2.5 A , see section characteristic curve. Switching power: DC: max. 95 W AC: max. 600 VA. Usage category: DC-12 , DC-13 , AC-12 u. AC-140. Switching frequency: 25 Hz. Response time: ≤ 20 ms. Product standard: EN 60947-5-2 , EN 60947-1. UL approval: E87056 , cULus Listed. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F) , cable, fixed installation -20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains. Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Pollution degree: 3. Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 120 g. Dimensions: . Height61.9 mmWidth20 mmDepth41.7 mm: . Height: 61.9 mm. Width: 20 mm. Depth: 41.7 mm. Cable length: 2 m

Brand	Pepperl Fuchs
Lifecycle status	active
