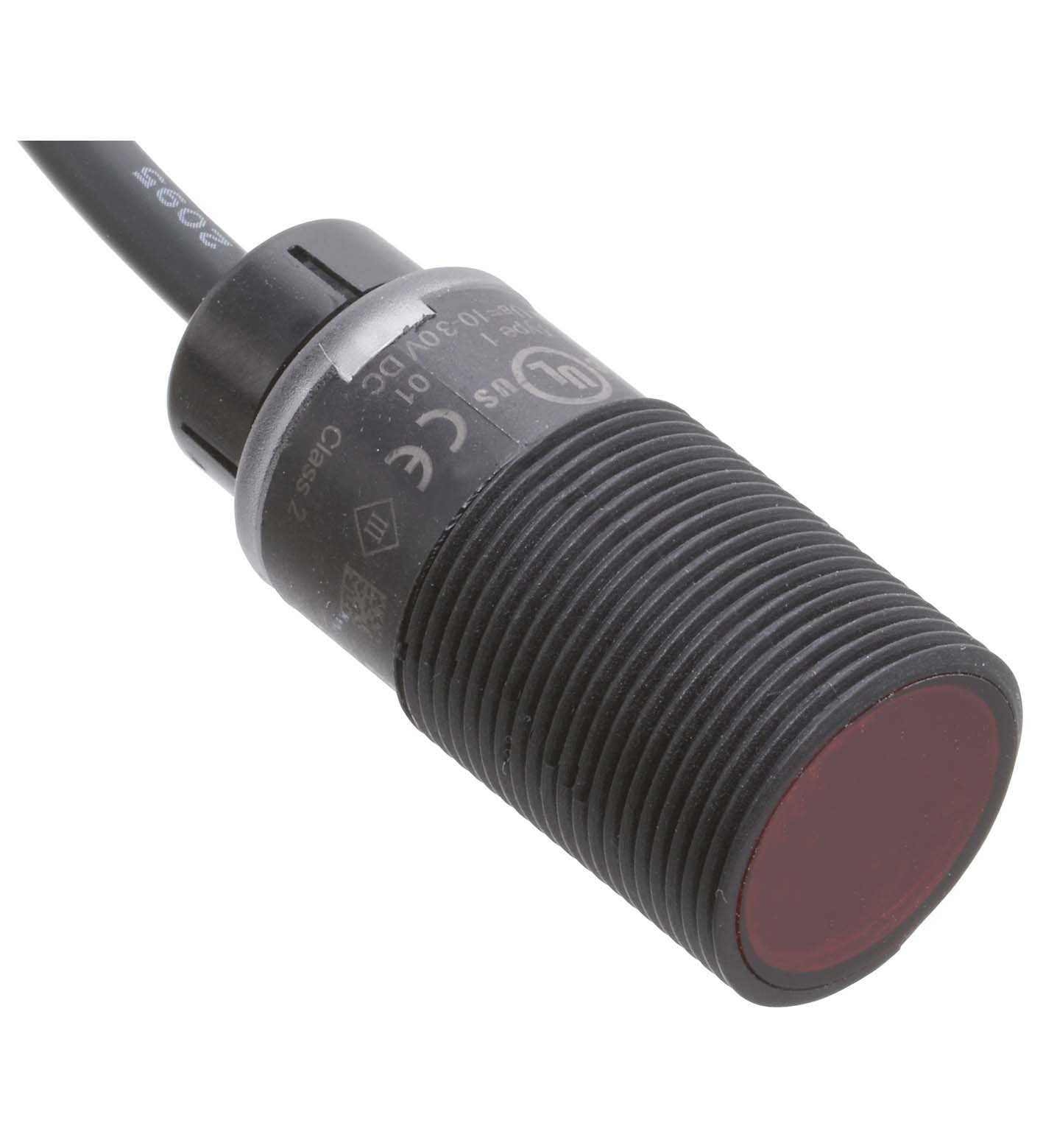

OBT300-18GK40-E2

Triangulation sensor (BGS). Triangulation sensor with background suppression, Short design in M18 plastic housing, Adjustable background suppression, Not sensitive to ambient light, Degree of protecti...

Triangulation sensor (BGS). Triangulation sensor with background suppression, Short design in M18 plastic housing, Adjustable background suppression, Not sensitive to ambient light, Degree of protection IP67, High operating distance. Detection range: 10 ... 300 mm. Detection range min.: 10 ... 50 mm. Detection range max.: 12 ... 300 mm. Adjustment range: 50 ... 300 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light. Black-white difference (6 %/90 %): < 40 % at 300 mm. Diameter of the light spot: approx. 16 mm at detection range 300 mm. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 100000 Lux. Hysteresis: < 4 %. MTTFd: 1734 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:on - power onflashing (4 Hz) - short circuit. Function indicator: LED yellow:constantly on - object detectedconstantly off - object not detected. Control elements: sensitivity adjustment. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA. Protection class: III. Switching type: Q - Pin4: PNP normally open / light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMACablePVC: . Housing: PC (Polycarbonate). Optical face: PMMA. Cable: PVC. Mass: approx. 54 g. Dimensions: . Length40 mmDiameter18 mmThread sizeM18: . Length: 40 mm. Diameter: 18 mm. Thread size: M18

Brand	Pepperl Fuchs
Lifecycle status	active
