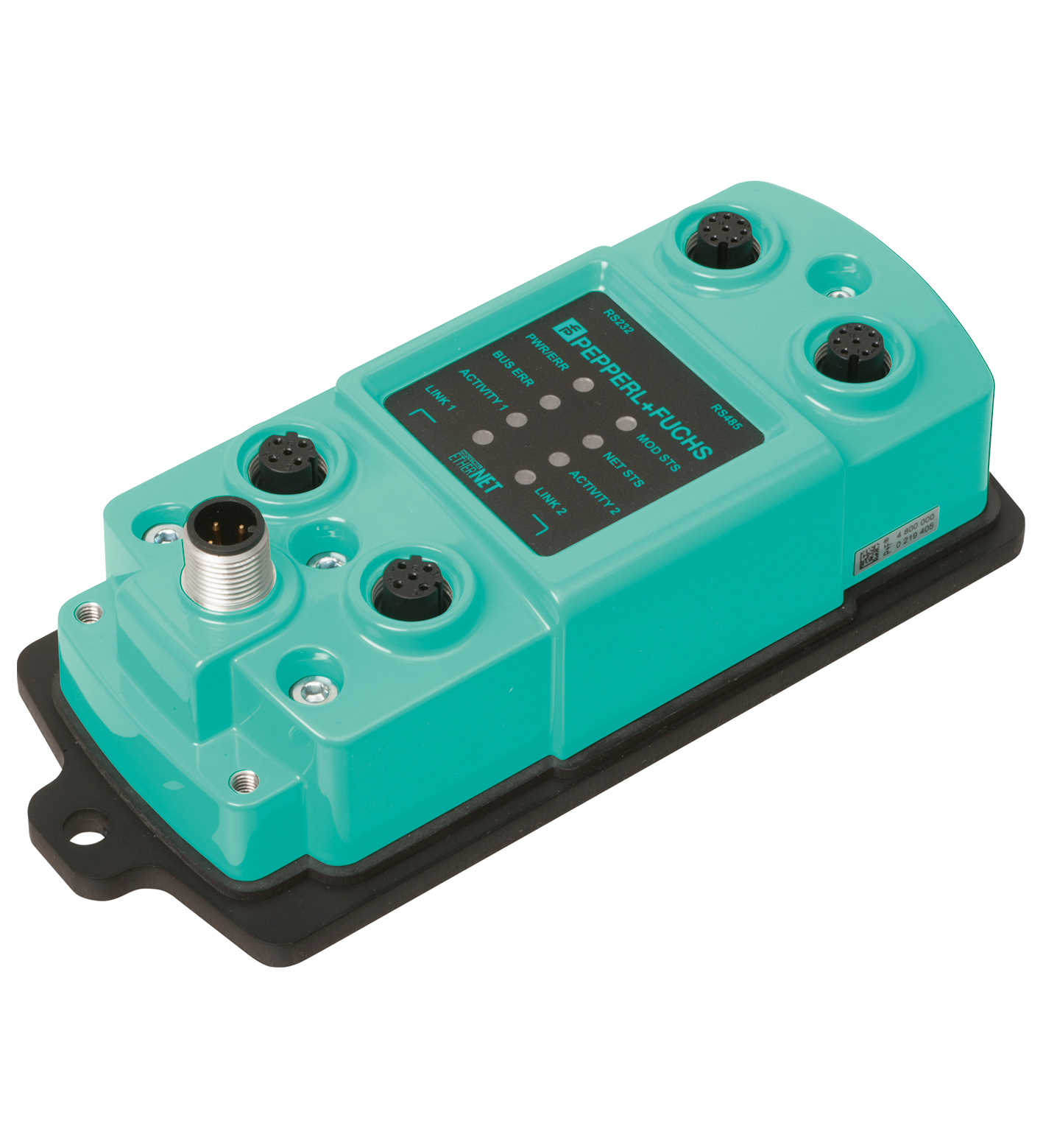

OHV-F230-B17

Gateway. PROFINET Gateway for OHV handheld. MTTFd: 110 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED green: LINK 1/LINK2: Port 1/2 connected. LED yellow: ACTIVITY 1/ACTIVITY 2: data a...

Gateway. PROFINET Gateway for OHV handheld. MTTFd: 110 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED green: LINK 1/LINK2: Port 1/2 connected. LED yellow: ACTIVITY 1/ACTIVITY 2: data at port 1/2. LED red: BUS ERR: Communication error. LED red/green: PWR/ERR: green: on; red: system error. Operating voltage: 10 ... 30 V DC PELV. Ripple: ≤ 10 % at 30 V DC. Current consumption: ≤ 1.1 A Inc. readers. Power consumption: 2.5 W Without readers. Interface type: RS-232, EIA/TIA-232E. Transfer rate: 115k, 8N1. Interface type: RS485 , No function. Interface type: 2 x PROFINET IO with int. switch. Protocol: Conformance Class BRealtime class RTMin. cycle time 1 ms. Transfer rate: 10/100 Mbps. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F) , noncondensing. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP65. Connection: RS232/RS485: 2 x M12 connector, 8-pin, A-coded Power supply: M12 connector Protective earth: M4 earthing screw Ethernet: M12 connection, 4-pin, D-coded. Material: . Housingpowder coated aluminum: . Housing: powder coated aluminum. Installation: screw fixing : 6 mm. Mass: approx. 400 g. Dimensions: . Height41 mmWidth62 mmLength137 mm: . Height: 41 mm. Width: 62 mm. Length: 137 mm

Brand	Pepperl Fuchs
Lifecycle status	active
