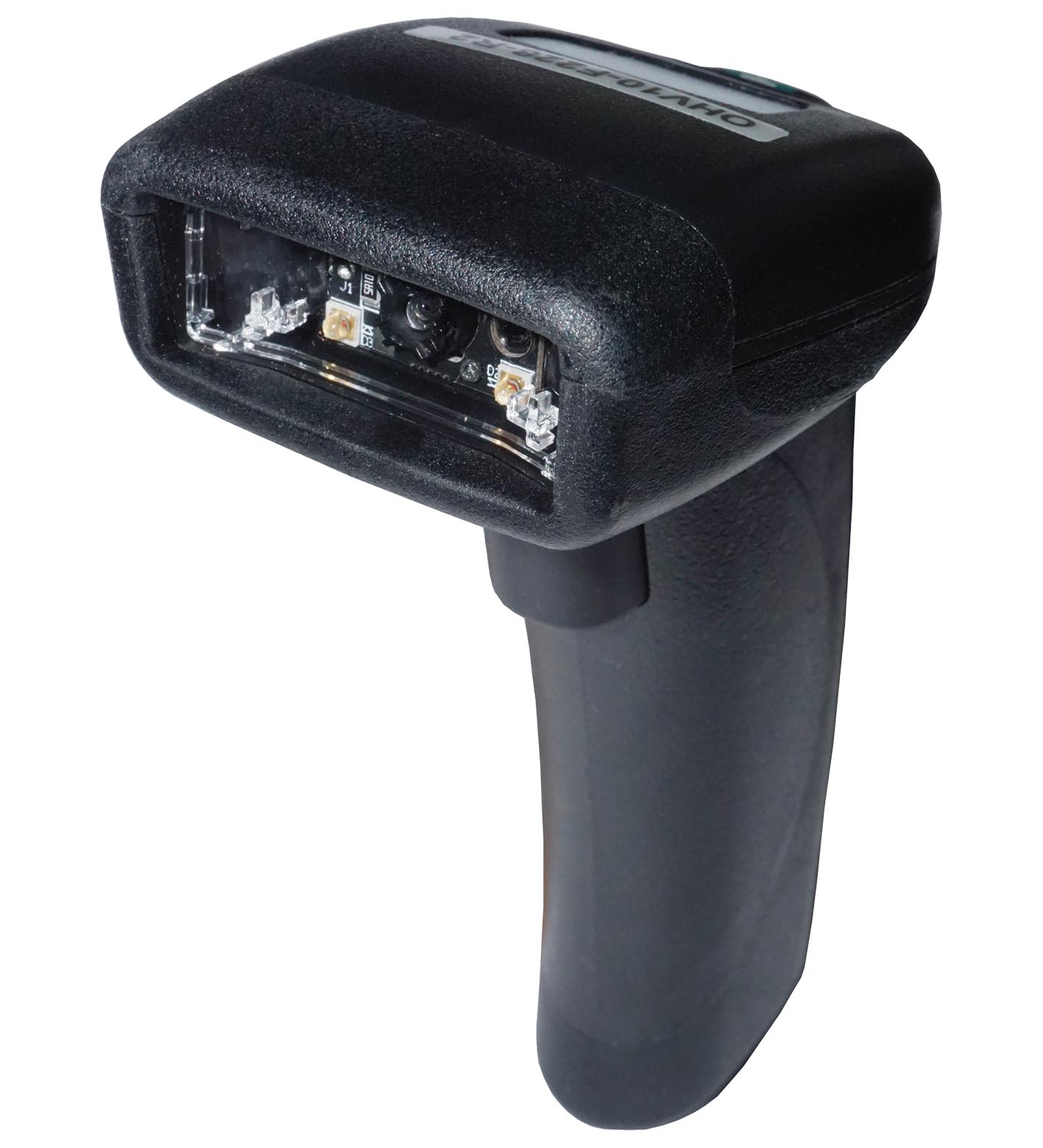

OHV10-F228-R2

Handheld reader. Handheld reader for all common 1-D and 2-D codes. Light type: Integrated LED lightning (red). Readable codes: 1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, Interle...

Handheld reader. Handheld reader for all common 1-D and 2-D codes. Light type: Integrated LED lightning (red). Readable codes: 1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN, BC412 Gestapelte 1-D Codes: Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 2-D Codes: Aztec Code, Data Matrix, Data Matrix Rectangular, Grid Matrix, Han Xin, Maxicode, Micro QR Code, QR Code, QR Model 1 Post Codes: Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Post-Net, Planet, Postnet, UK Royal Mail, UPU ID-tags. Read distance: 40 ... 310 mm depending on the code type. Reading field: max. 190 mm x 290 mm. Modul size: min. 0.2 mm. Ambient light limit: 96890 Lux. Target velocity: Stop. Camera: . TypeCMOSNumber of pixels1280 x 960Image recordingreal-time , manually triggered: . Type: CMOS. Number of pixels: 1280 x 960. Image recording: real-time , manually triggered. Function indicator: LED green: Data carrier read. Supply: via cable. Physical: USB 2.0 , RS-232. Standard conformity: . Noise immunityEN 55024:2010Emitted interferenceEN 55032:2012+AC:2013: . Noise immunity: EN 55024:2010. Emitted interference: EN 55032:2012+AC:2013. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -30 ... 65 °C (-22 ... 149 °F). Relative humidity: 5 ... 95 % non-condensing. Shock and impact resistance: Withstands multible drops from 1.8 m / 6 ft onto a concrete surface. Degree of protection: IP54. Connection: System connector for connecting cable. Material: . Housingplastic: . Housing: plastic. Mass: 110 g. Dimensions: 70 mm x 50 mm x 140 mm (l x w x h). Height140 mmWidth50 mmLength70 mm: . Height: 140 mm. Width: 50 mm. Length: 70 mm. Scope of delivery: Handheld reader

Brand	Pepperl Fuchs
Lifecycle status	active
