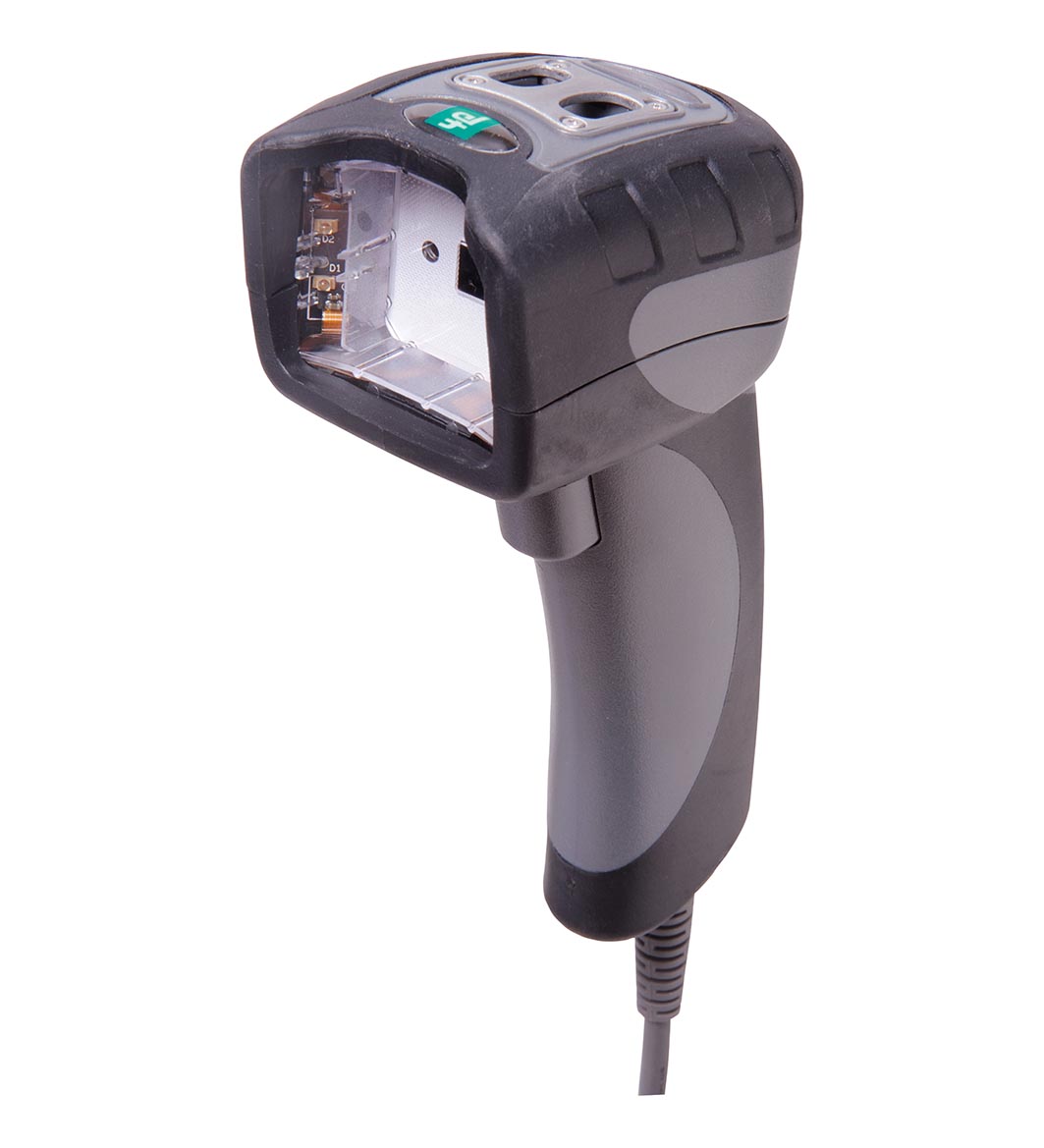

OHV1000-F223-R2

Handheld reader. Handheld reader for reading lasered, punched or printed 1-D and 2-D codes. Light type: Integrated LED lightning (red). Readable codes: 1-D Codes: Codabar, Code 11, Code 32, Code 39, C...

Handheld reader. Handheld reader for reading lasered, punched or printed 1-D and 2-D codes. Light type: Integrated LED lightning (red). Readable codes: 1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN, BC412 Stacked 1-D Codes: GS1 Composite, MicroPDF, PDF417 2-D Codes: Aztec Code, Code 49, Codablock F, Data Matrix, Han Xin, MaxiCode, Micro QR, QR Code Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags. Read distance: 0 ... 200 mm depending on the code type and reading mode. Modul size: min. 0.1 mm. Ambient light limit: 96890 Lux. Target velocity: Stop. Camera: . TypeCMOSNumber of pixels1280 x 960Image recordingreal-time , manually triggered: . Type: CMOS. Number of pixels: 1280 x 960. Image recording: real-time , manually triggered. Function indicator: LED green: Data carrier read. Supply: via cable. Physical: USB 2.0 , RS-232. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -30 ... 65 °C (-22 ... 149 °F). Relative humidity: 5 ... 95 % non-condensing. Shock and impact resistance: Withstands multible drops from 1.8 m / 6 ft onto a concrete surface. Degree of protection: IP54. Connection: System connector for connecting cable. Material: . Housingplastic: . Housing: plastic. Mass: 130 g. Dimensions: 93 mm x 53 mm x 151 mm (l x w x h). Height151 mmWidth53 mmLength93 mm: . Height: 151 mm. Width: 53 mm. Length: 93 mm. Scope of delivery: Handheld reader

Brand	Pepperl Fuchs
Lifecycle status	active
