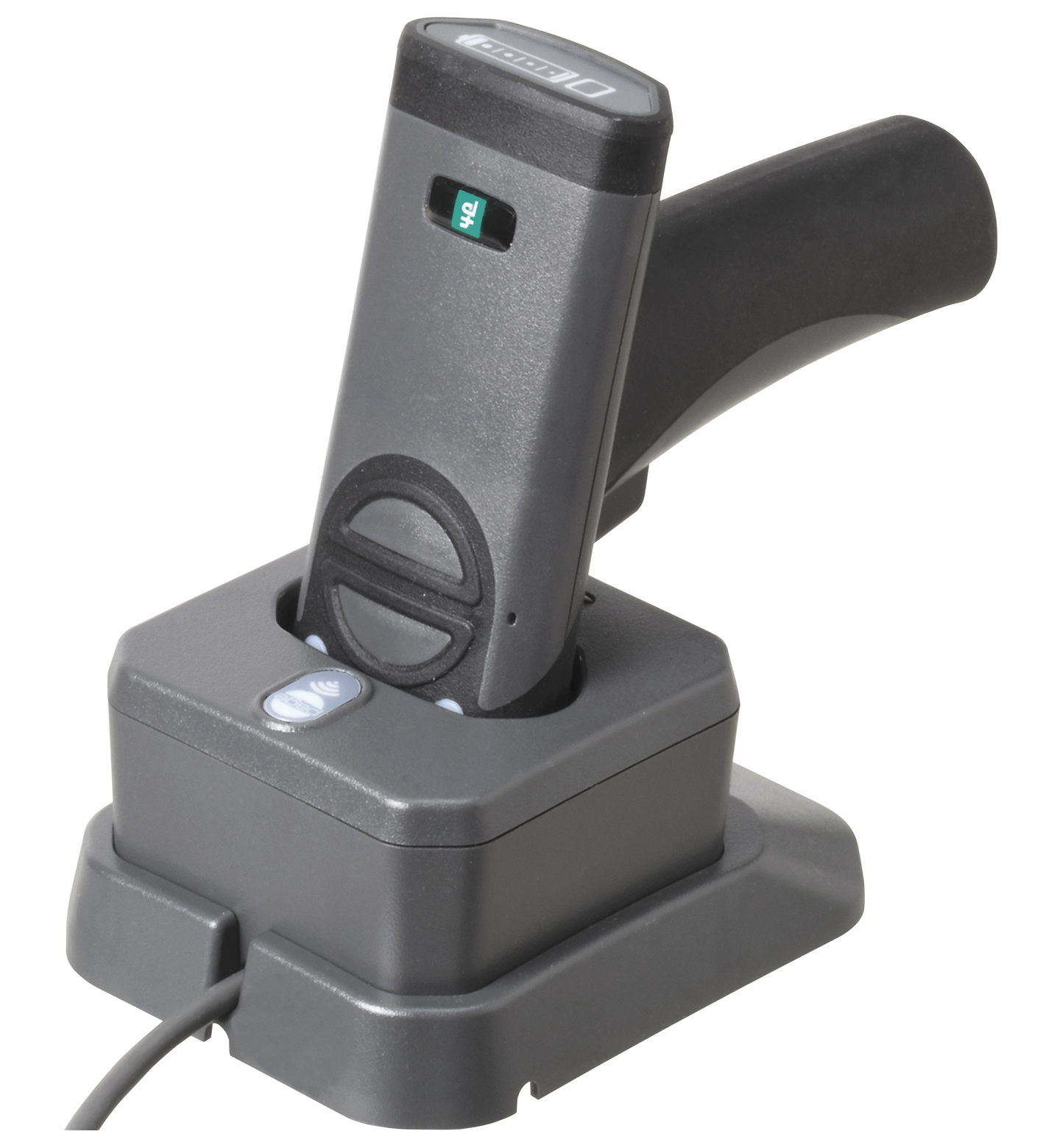

OHV210-F229-B15

Handheld reader. Handheld reader with Bluetooth for all common 1-D and 2-D codes. Light type: Integrated LED lightning (red). Readable codes: 1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Co...

Handheld reader. Handheld reader with Bluetooth for all common 1-D and 2-D codes. Light type: Integrated LED lightning (red). Readable codes: 1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN, BC412 Gestapelte 1-D Codes: Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF 2-D Codes: Aztec Code, Data Matrix, Data Matrix Rectangular, Grid Matrix, Han Xin, Maxicode, Micro QR Code, QR Code, QR Model 1 Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags. Read distance: 40 ... 310 mm depending on the code type. Reading field: High density reading field: 30° horizontal by 20° verticalWide reading range: 50° horizontal by 33.5° vertical. Modul size: min. 0.1 mm. Ambient light limit: 96890 Lux. Target velocity: Stop. Camera: . TypeCMOSNumber of pixels1280 x 960Image recordingreal-time , manually triggered: . Type: CMOS. Number of pixels: 1280 x 960. Image recording: real-time , manually triggered. Function indicator: 3 LEDs. Key: 3 programmable function keys. Supply: from Li-Ion battery. Physical: Bluetooth 5.0 LE , USB 2.0. Transmitter frequency: 2.4 GHz. Standard conformity: . Electromagnetic compatibilityEN 61000-6-1:2007EN 61000-6-2:2005/AC:2005EN 61000-6-3:2007/A1:2011/AC:2012EN 61000-6-4:2007/A1:2011Radio spectrumETSI EN 300328 V2.2.2StandardsEN 50581:2012: . Electromagnetic compatibility: EN 61000-6-1:2007EN 61000-6-2:2005/AC:2005EN 61000-6-3:2007/A1:2011/AC:2012EN 61000-6-4:2007/A1:2011. Radio spectrum: ETSI EN 300328 V2.2.2. Standards: EN 50581:2012. FCC approval: FCC-ID: HSW2832 (handheld reader), X8WBT840 (charger). Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -30 ... 65 °C (-22 ... 149 °F). Relative humidity: 5 ... 95 % non-condensing. Shock and impact resistance: Withstands multible drops from 1.8 m / 6 ft onto a concrete surface. Degree of protection: IP65. Material: . Housingplastic: . Housing: plastic. Mass: 177 g (incl. battery). Dimensions: 130 mm x 51 mm x 135 mm (l x w x h). Height135 mmWidth51 mmLength130 mm: . Height: 135 mm. Width: 51 mm. Length: 130 mm. Scope of delivery: Handheld reader + Lithium ion battery 1200 mAh + charger

Brand	Pepperl Fuchs
Lifecycle status	active
