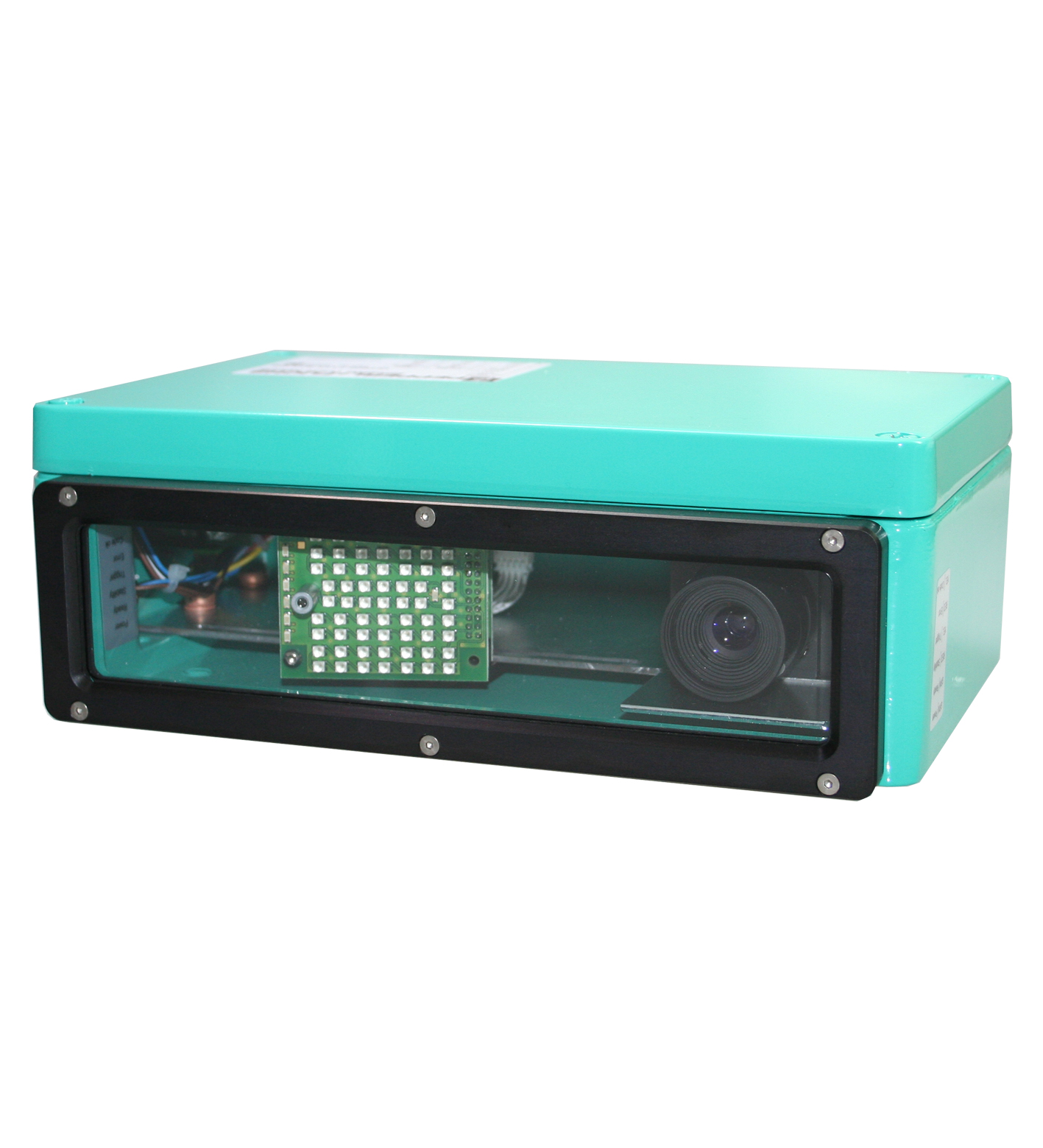

OIT300-F113-B12-CB2
High temperature identification system. Optical high temperature identification system, 100 to 270 mm. Light source: Integrated LED lightning. Light type: infrared. Symbologies: Hole matrix Value ra...
High temperature identification system. Optical high temperature identification system, 100 to 270 mm. Light source: Integrated LED lightning. Light type: infrared. Symbologies: Hole matrix Value range: 4-digit numerical,between 1 and 4095 Code carrier size: 80 mm x 36 mm. Read distance: adjustable 100 ... 270 mm. Depth of focus: ± 50 mm. Reading field: 210 mm x 160 mm at max. read distance. Evaluation frequency: 5 Hz. Target velocity: triggered max. 0.5 m/s. MTTFd: 51 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: supply LED green: ready. Function indicator: Yellow LED: triggerYellow LED: code readRed LED: pre-faultRed LED: group error. Operating voltage: 24 V DC ± 15% , PELV. Operating current: 250 mA without output drivers. Physical: Ethernet. Protocol: TCP/IP. Transfer rate: 100 MBit/s. Input voltage: to be applied externally 24 V ± 15% PELV. Number/Type: 1 trigger input 2 control unit inputs , optically decoupled. Input current: approx. 1 mA at 24 V DC. Number/Type: 1 electronic output, PNP, optically decoupled. Switching voltage: to be applied externally 24 V ± 15 % PELV. Switching current: 100 mA each output. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61326-1:2013. Photobiological safety: EN 62471:2008 exempt group. CE conformity: CE. Ambient temperature: 0 ... 45 °C (32 ... 113 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP64. Connection: 8-pin Harting HAN RJ-45 2 x 5-pin M12 socket Supplied ferrite sleeve for suppression of the Ethernet cable. Material: . Housingdiecast aluminum powder coated: . Housing: diecast aluminum powder coated. Mass: approx. 4000 g. Dimensions: . Height101 mmWidth261 mmDepth171 mm: . Height: 101 mm. Width: 261 mm. Depth: 171 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
