Pepperl Fuchs

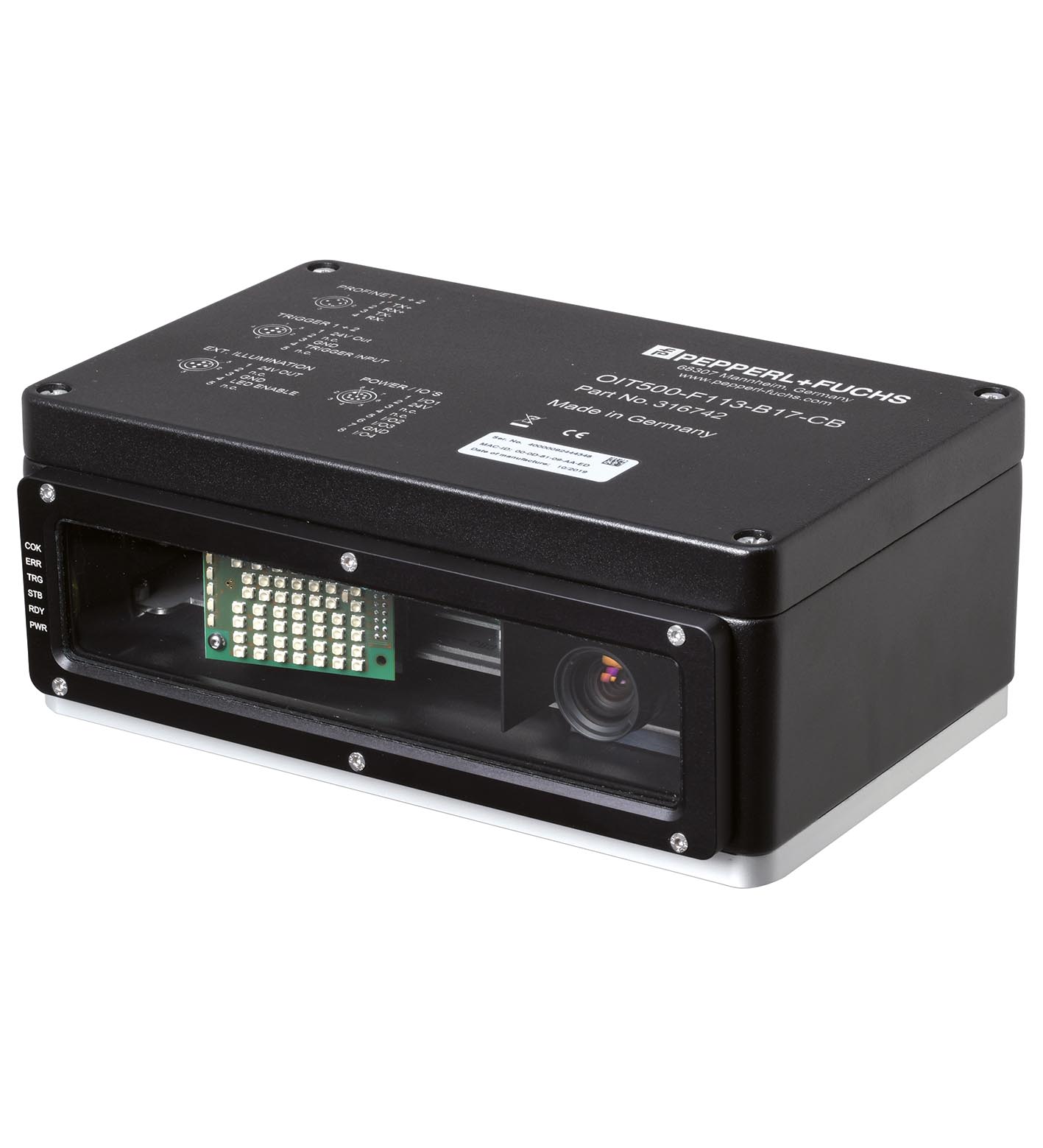

OIT500-F113-B17-CB

High temperature identification system. Optical high temperature identification system, 300 to 450 mm. Light source: Integrated LED lightning. Light type: Infrared. Symbologies: CB1: perforated matrix 6 x 6 6 decimal digits. Read distance: CB1: 300 ... 520 mm. Reading field: 335 mm x 185 mm at max. read distance. Evaluation frequency: 5 Hz. Target velocity: triggered max. 1.5 m/s. MTTFd: 86 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED indication: status , Function , communication. Operating voltage: 24 V DC ± 15% , PELV. Operating current: 200 mA without output drivers. Interface type: 100 BASE-TX. Protocol: PROFINET IO Real-Time (RT) Conformance Class B Netload Class III. Transfer rate: 100 Bit/s. Interface type: Ethernet. Protocol: TCP/IP. Transfer rate: 100 MBit/s. Input voltage: 24 V DC low: < 8 V, high: > 12 V. Number/Type: 2 trigger input and supply max. 4 switching inputs. Number/Type: supply max. 200 mA and 1 control output for External lighting max. 4 switching outputs programmable. Switching voltage: operating voltage minus voltage drop typ. 1.1 V. Switching current: 100 mA each output. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Photobiological safety: EN 62471:2008 exempt group. CE conformity: CE. Ambient temperature: 0 ... 60 °C (32 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP67. Connection: 8-pin, M12x1 connector, standard (supply+IO) 2 x 4-pin, M12x1 socket, D-coded (LAN) 3 x 5-pin, M12x1 socket, A-coded ( Trigger , External lighting ). Material: . Housingdiecast aluminum powder coated: . Housing: diecast aluminum powder coated. Mass: approx. 4000 g. Dimensions: . Height101 mmWidth261 mmDepth171 mm: . Height: 101 mm. Width: 261 mm. Depth: 171 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
