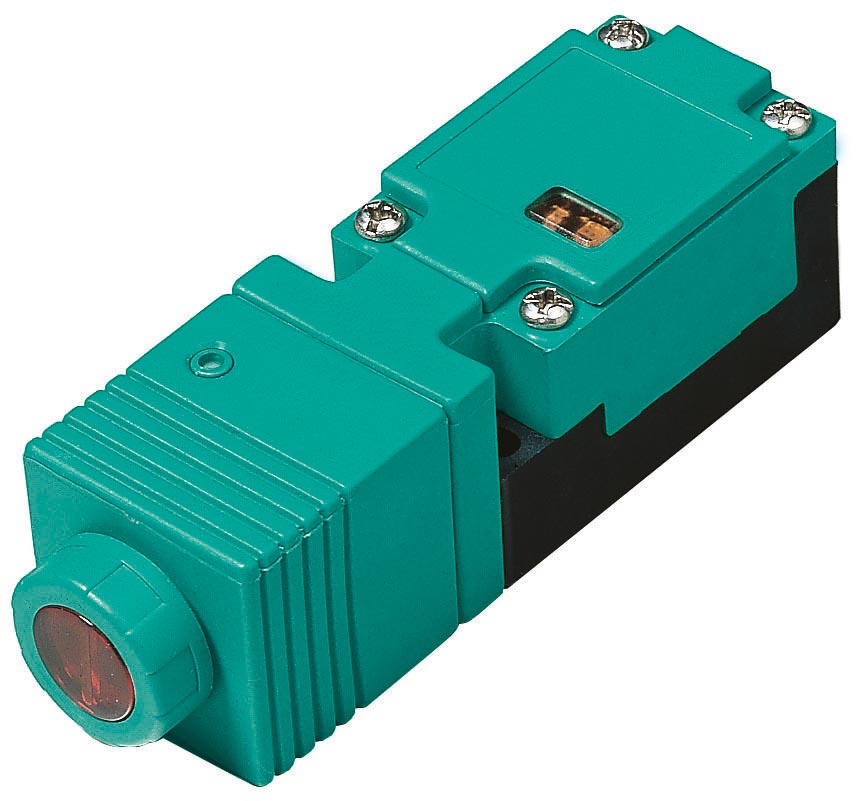

OJ500-M1K-E23

Fiber optic sensor. Fiber optic sensor for glass fiber optics, Light-on/dark-on parameterizable, Adjustable sensor head. Sensor range: up to 100 mm (LMR 18-3,2-1,0-K4). Detection range: up to 600 mm...

Fiber optic sensor. Fiber optic sensor for glass fiber optics, Light-on/dark-on parameterizable, Adjustable sensor head. Sensor range: up to 100 mm (LMR 18-3,2-1,0-K4). Detection range: up to 600 mm (LME 18-2,3-0,5-K3). Reference target: standard white 200 mm x 200 mm (only for retroreflective fiberoptic cables). Light source: LED. Light type: modulated infrared light. Ambient light limit: 40000 Lux. Temperature influence: ≤ 0.5 mm/K. Operation indicator: LED green. Function indicator: LED yellow: switching stateLED red: operating reserve (flashing). Control elements: programming switch: light-on/dark-on changeover switchselection of the operating frequencyselection of the switching frequencypulse extensionoperating reserve dynamic/static. Control elements: Sensing range adjuster. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: ≤ 35 mA. Stability alarm output: 1 PNP, active when falling short of operating reserve (only available if 200 Hz switching frequency is selected). Switching type: light/dark on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: ≤ 200 mA. Voltage drop: ≤ 2.5 V. Switching frequency: ≤ 1.5 kHz / 200 Hz switchable. Response time: ≤ 0.3 ms at 1.5 kHz ≤ 2.5 ms at 200 Hz. Timer function: pulse extension 20 ms, switchable. Product standard: EN 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Approvals: CE. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Degree of protection: IP67. Connection: M16 terminal compartment, core cross section ≤ 2.5 mm2. Material: . HousingPBTOptical faceScratch resistant mineral glass lens: . Housing: PBT. Optical face: Scratch resistant mineral glass lens. Mass: 100 g. Dimensions: . Height30 mmWidth30 mmDepth102 mm: . Height: 30 mm. Width: 30 mm. Depth: 102 mm

Brand	Pepperl Fuchs
Lifecycle status	active
