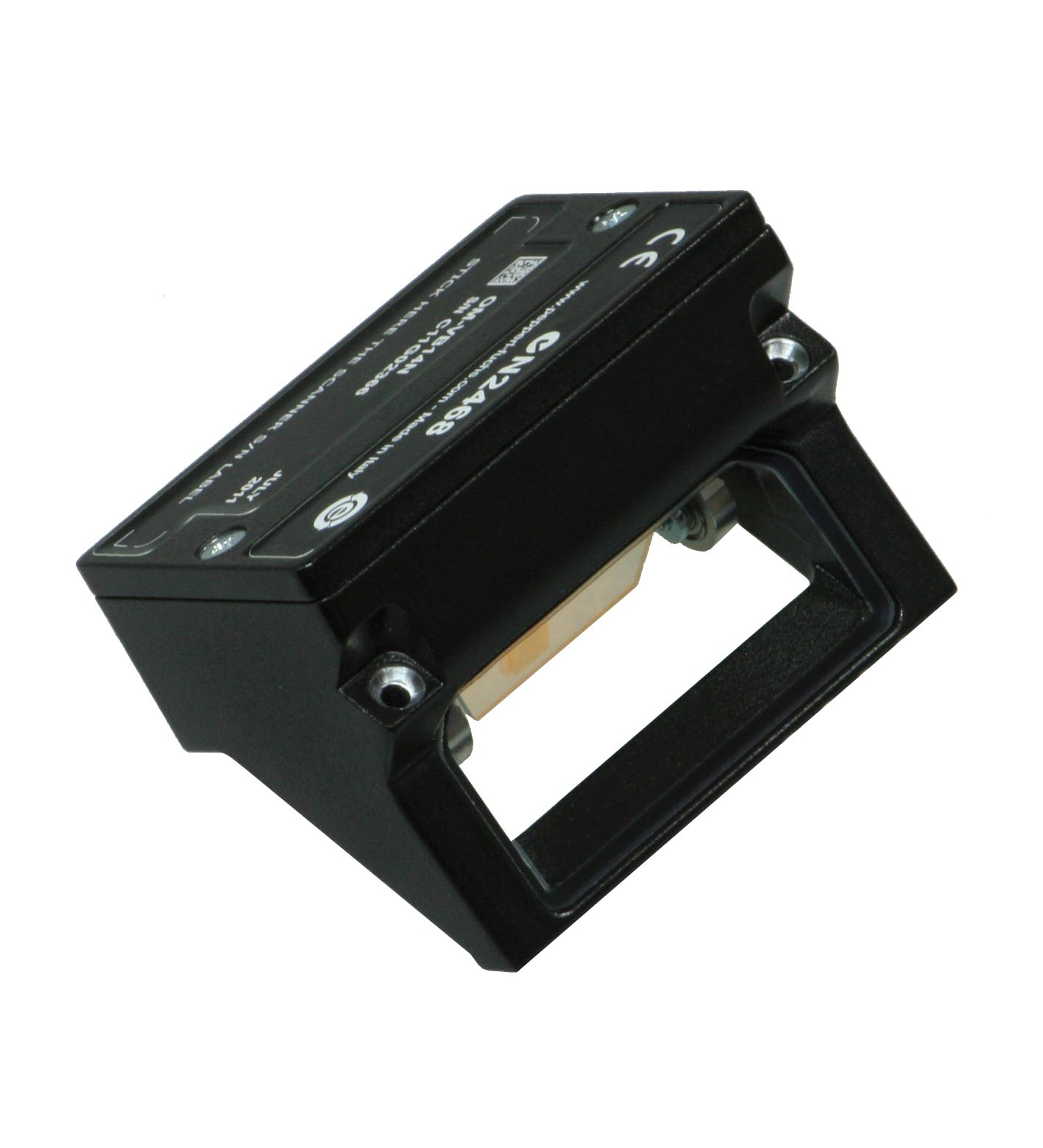

OM-VB14N

oscillating mirror. oscillating mirror for the VB14N barcode scanner series. Viewing angle: 10 ... 40 ° , adjustable. Oscillator frequency: 0.5 ... 4 Hz , adjustable. Operating voltage: 10 ... 30 V DC...

oscillating mirror. oscillating mirror for the VB14N barcode scanner series. Viewing angle: 10 ... 40 ° , adjustable. Oscillator frequency: 0.5 ... 4 Hz , adjustable. Operating voltage: 10 ... 30 V DC. Operating current: max. 40 mA @ 10 V DC. Power consumption: max. 1 W @ 30 V DC. Inrush current: 1.2 A @ 10 V DC at max. duration = 100 ms. Response time: max. 1 ms. Ambient temperature: 0 ... 45 °C (32 ... 113 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: 90 % , noncondensing. Shock resistance: IEC 68-2-6 FC 0,5 G at 9 ... 150 Hz 2 hours on each axis. Vibration resistance: IEC 68-2-27 Test EA 30G; 11 ms; 3 impacts on each axis. Degree of protection: IP65 (with correct installation on the barcode scanner). Connection: Connector plug , 4-pin. Mass: approx. 160 g. Dimensions: . Height44 mmWidth68 mm: . Height: 44 mm. Width: 68 mm

Brand	Pepperl Fuchs
Lifecycle status	active
