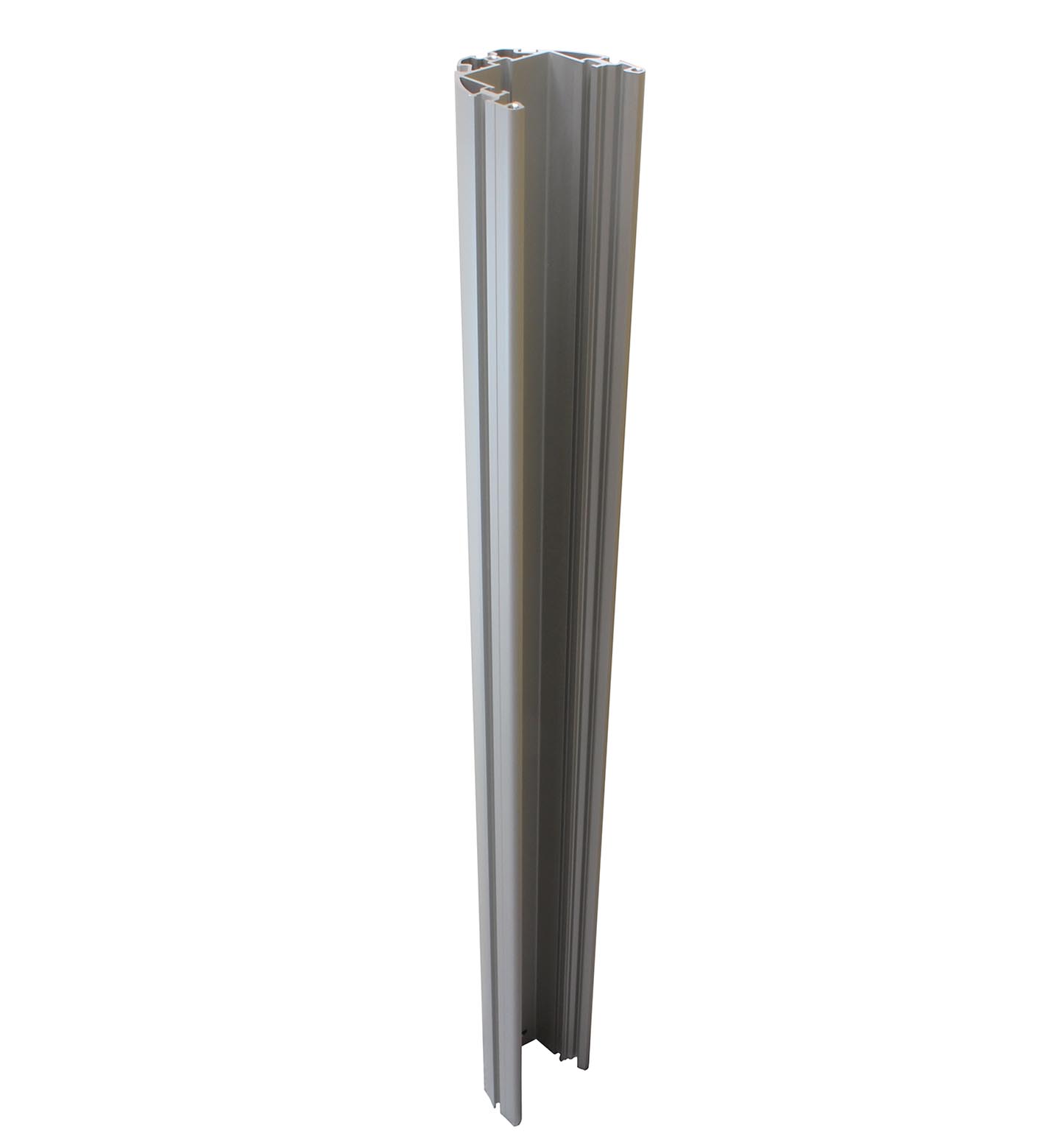

OMH-SLCT-100-1200

Accessories Safety. Eight grooves for mounting photoelectric sensors or accessories, three on the inside and five on the outside, Corner mounting of photoelectric sensors with a directional difference...

Accessories Safety. Eight grooves for mounting photoelectric sensors or accessories, three on the inside and five on the outside, Corner mounting of photoelectric sensors with a directional difference of 90°, Cover prepared for indicator light mounting, Safety Series: SLCT / SLCS. Setting angle: ± 5 ° with product OMH-SLCT-200. Tilting angle: ± 2.5 ° with product OMH-SLCT-200. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Relative humidity: 80 % , noncondensing. Housing length L: 1180 mm. Material: . Housinganodized aluminum: . Housing: anodized aluminum. Mass: approx. 5.6 kg. Dimensions: . Height102.1 mmWidth123.1 mmLength1180 mm: . Height: 102.1 mm. Width: 123.1 mm. Length: 1180 mm. Scope of delivery: Mounting base, cover plate The three fillister head screws for the cover plate are supplied with the floor mount. Safety Series: SLCT / SLCS

Brand	Pepperl Fuchs
Lifecycle status	active
