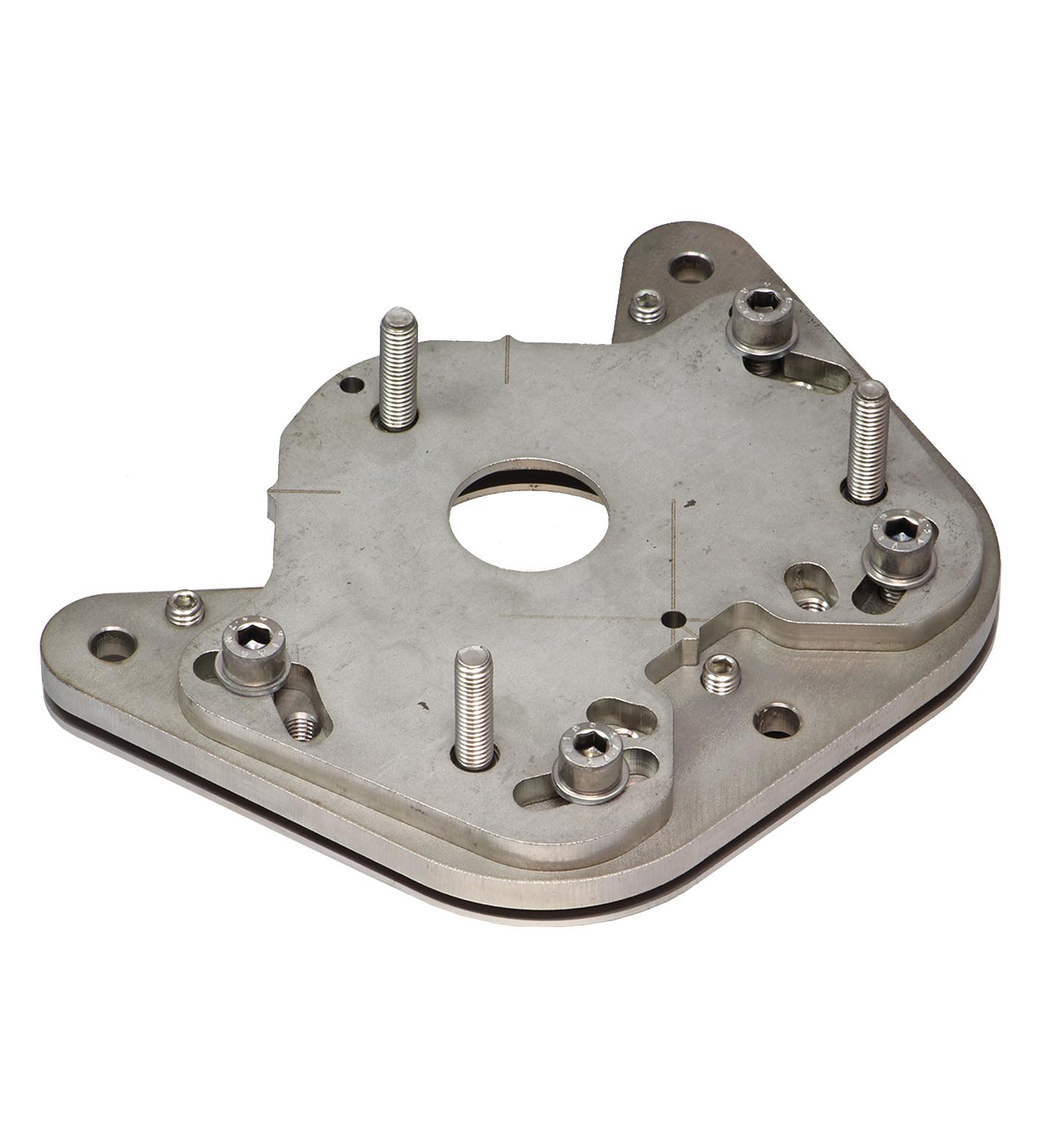

OMH-SLCT-200

Accessories Safety. Rotation of the SLCT-M-01 inclined mirror around the physically preferred rotational axis, Vertical adjustment decoupled from rotation, Mounting on ground anchors, Lead-away of lin...

Accessories Safety. Rotation of the SLCT-M-01 inclined mirror around the physically preferred rotational axis, Vertical adjustment decoupled from rotation, Mounting on ground anchors, Lead-away of lines in floor via hole for NW29 coupling nut and corrugated hose, Base plate to compensate for uneven ground, particularly for brittle surfaces, Only approx. 20 mm in height from bottom edge of base plate to top edge of ground plate, Safety Series: SLCT / SLCS. Setting angle: ± 5 °. Tilting angle: ± 2.5 °. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Relative humidity: 80 % , noncondensing. Material: . HousingStainless steelMounting screwSteel bronzed: . Housing: Stainless steel. Mounting screw: Steel bronzed. Mass: approx. 2.3 kg. Dimensions: . Height8 mmWidth141.7 mmLength195.4 mm: . Height: 8 mm. Width: 141.7 mm. Length: 195.4 mm. Note: Hole for NW29 corrugated hose ∅33 mm. Scope of delivery: Base plate, intermediate plate, ground plate, drilling plan Mounting accessories M8 ground anchor not included with delivery. Safety Series: SLCT / SLCS

Brand	Pepperl Fuchs
Lifecycle status	active
