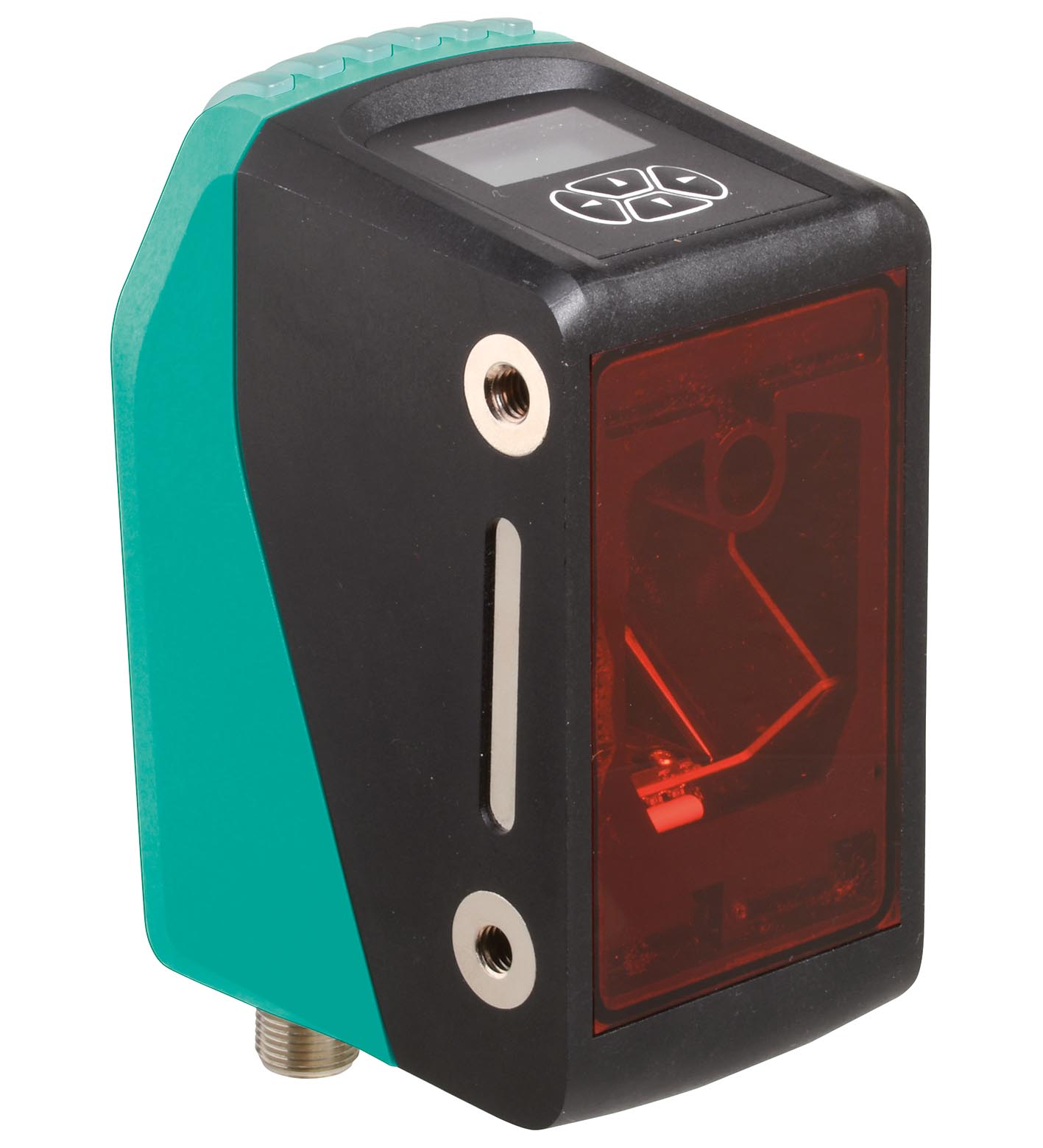

OMR50M-R1000-B17-2V1DV1-T
Distance sensor. Distance sensor for positioning tasks accurate to the millimeter, PRT, measuring range up to 50 m, PROFINET, M12 plug, PROFINET interface with integrated switch, Maximum measurement a...
Distance sensor. Distance sensor for positioning tasks accurate to the millimeter, PRT, measuring range up to 50 m, PROFINET, M12 plug, PROFINET interface with integrated switch, Maximum measurement accuracy, Red laser as the light emitter, Display and keypad for parameter settings, Compact and space-saving design. Measuring range: 0.3 ... 50 m. Reference target: REF-500MMx500MM (Foil reflector 500 mm x 500 mm) REF-250MMx250MM (Film reflector 250 mm x 250 mm) up to 75 m. Light source: laser diode. Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length660 nmBeam divergence< 5 mradPulse length5 nsRepetition rate300 kHzmax. pulse energy< 2 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 660 nm. Beam divergence: < 5 mrad. Pulse length: 5 ns. Repetition rate: 300 kHz. max. pulse energy: < 2 nJ. Measuring method: Pulse Ranging Technology (PRT). Max. Motion velocity: 15 m/s. Diameter of the light spot: < 75 cm at 150 m. Ambient light limit: > 80000 Lux. Resolution: 0.1 mm , adjustable. Temperature influence: 0.03 mm/K. MTTFd: > 100 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Function indicator: 10 LEDs. Control elements: Control panel (4 membrane keys) for setting parameters. Parameterization indicator: Illuminated display for displaying measured values and parameterization. Operating voltage: 10 ... 30 V DC. No-load supply current: 660 mA (18 V) ... 400 mA (30 V). Time delay before availability: < 10 s. Interface type: PROFINET. Physical: Ethernet. Transfer rate: 100 MBit/s. Read out rate: 1000/s. Product standard: EN 60947-5-2. Laser safety: EN 60825-1:2014. Measured value output: 1 ms. Average data age: 3 ms , 6 ms , 12 ms , 25 ms , adjustable. Absolute accuracy: typ. ± 2.5 mm. Repeat accuracy: < 1 mm. Protection class: III (rated insulation voltage 50 V). UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. FDA approval: IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Relative humidity: 95 % , no moisture condensation. Degree of protection: IP67. Connection: 4-pin, M12x1 connector, A-coded (supply) ,2x 4-pin, M12x1 socket, D-coded (LAN). Material: . HousingABS / PCOptical facePMMA , hard coated: . Housing: ABS / PC. Optical face: PMMA , hard coated. Mass: approx. 300 g. Dimensions: . Height106.6 mmWidth55 mmDepth80.6 mm: . Height: 106.6 mm. Width: 55 mm. Depth: 80.6 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
