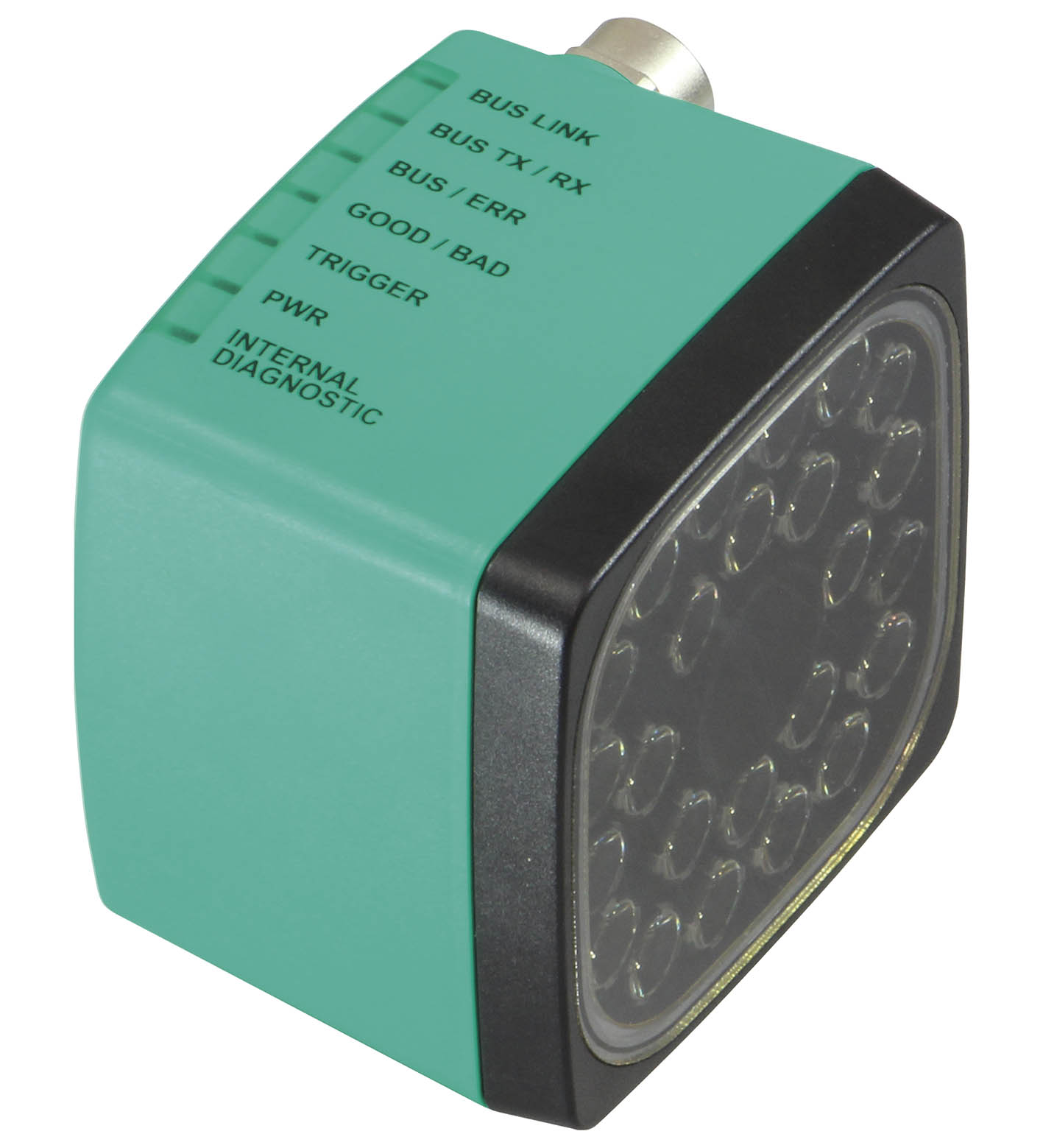

OPC120P-F201-B17

Stationary read device. Optical Print Inspector, reading of Data Matrix codes, PROFINET, speeds up to 10 m/sec, polarization filter. Light type: Integrated LED lightning (white). Polarization filter:...

Stationary read device. Optical Print Inspector, reading of Data Matrix codes, PROFINET, speeds up to 10 m/sec, polarization filter. Light type: Integrated LED lightning (white). Polarization filter: yes. Symbologies: Data Matrix. Read distance: 70 ... 180 mm Nominal distance: 120 mm. Reading field: Minimum read field: 28 mm x 45 mmRead field at nominal distance: 45 mm x 70 mmMaximum read field: 65 mm x 105 mm. Modul size: Minimum module size: 0.2 mm. Evaluation frequency: up to 50 Hz. Target velocity: triggered max. 10 m/s. Data Matrix: . Symbol sizerectangular up to 144 x 144 modules rectangular up to 16 x 48 modulesData formatASCII, C40, Text, X12, Edifact, Base 256 , all according to ISO 646Orientationomnidirectional: . Symbol size: rectangular up to 144 x 144 modules rectangular up to 16 x 48 modules. Data format: ASCII, C40, Text, X12, Edifact, Base 256 , all according to ISO 646. Orientation: omnidirectional. Camera: . TypeCMOS , Global shutterNumber of pixels752 x 480 pixelsGray scale256Image recordingreal-time , Program-controlled or triggered externally: . Type: CMOS , Global shutter. Number of pixels: 752 x 480 pixels. Gray scale: 256. Image recording: real-time , Program-controlled or triggered externally. MTTFd: 40.5 a. Mission Time (TM): 8 a. Diagnostic Coverage (DC): 0 %. LED indication: 7 LEDs (communication, alignment aid, status information). Operating voltage: 24 V DC ± 15% , PELV. No-load supply current: max. 300 mA. Power consumption: 6 W. Interface type: 100 BASE-TX. Protocol: PROFINET IO Real-Time (RT) Conformance class A. Transfer rate: 100 MBit/s. Interface type: USB Service. Input voltage: to be applied externally 24 V ± 15% PELV. Number/Type: Trigger. Input current: approx. 10 mA at 24 V DC. Switching threshold: low: < 10 V, high: > 15 V. Cable length: max. 30 m. Switching type: PNP. Switching voltage: to be applied externally 24 V ± 15 % PELV. Switching current: 100 mA each output. Cable length: max. 30 m. Standard conformity: . Noise immunityEN 61326-1:2006Emitted interferenceEN 61000-6-4:2007/A1:2011Degree of protectionEN 60529Photobiological safetyRisk group 1 according to IEC 62471: . Noise immunity: EN 61326-1:2006. Emitted interference: EN 61000-6-4:2007/A1:2011. Degree of protection: EN 60529. Photobiological safety: Risk group 1 according to IEC 62471. CCC approval: CCC approval / marking not required for products rated ≤36 V. Approvals: CE. Ambient temperature: 0 ... 45 °C (32 ... 113 °F). Storage temperature: -20 ... 85 °C (-4 ... 185 °F). Relative humidity: 90 % , noncondensing. Degree of protection: IP67. Connection: 8-pin, M12x1 connector, standard (supply+IO) ,4-pin, M12x1 socket, D-coded (LAN) ,4-pin, M12x1 socket, D-coded (LAN). Material: . HousingPC/ABSOptical facePlastic pane: . Housing: PC/ABS. Optical face: Plastic pane. Installation: 4 x M6 threading. Mass: approx. 200 g. Dimensions: . Height70 mmWidth70 mmDepth53 mm: . Height: 70 mm. Width: 70 mm. Depth: 53 mm
