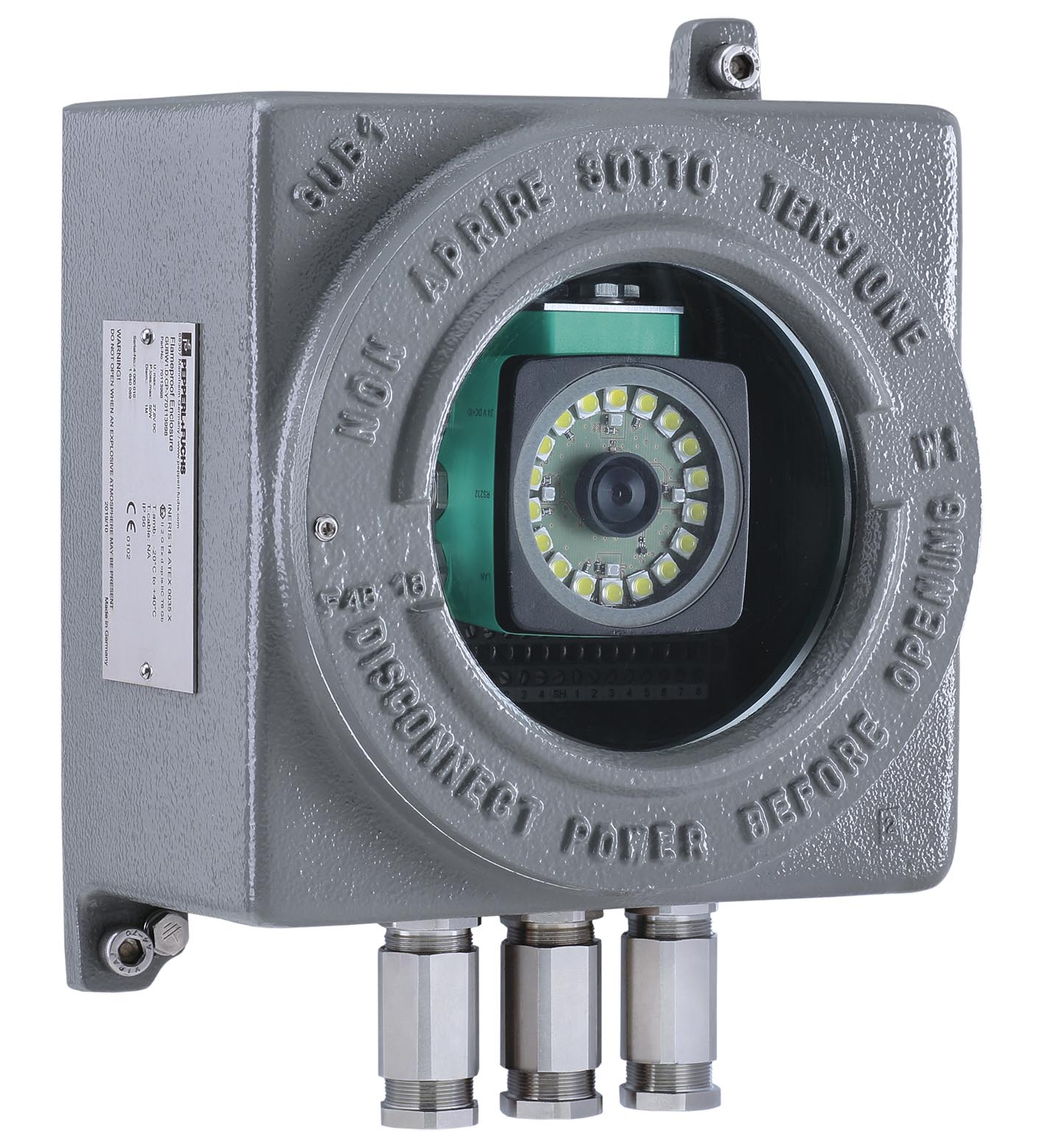

OPC120W-F200-R2-Ex

Stationary read device. Stationary read device for hazardous area. Light type: Integrated LED lightning (white). Symbologies: Data Matrix, Code 39, Code 128, Int 2 of 5, EAN13, Pharmacode. Read distan...

Stationary read device. Stationary read device for hazardous area. Light type: Integrated LED lightning (white). Symbologies: Data Matrix, Code 39, Code 128, Int 2 of 5, EAN13, Pharmacode. Read distance: 60 ... 160 mm Nominal distance: 120 mm. Reading field: Minimum read field: 28 mm x 45 mmRead field at nominal distance: 44 mm x 70 mmMaximum read field: 60 mm x 95 mm. Modul size: Minimum module size: 0.3 mm. Evaluation frequency: up to 30 Hz. Target velocity: triggered max. 6 m/s. Data Matrix: . Symbol sizerectangular up to 144 x 144 modules rectangular up to 16 x 48 modulesData formatASCII, C40, Text, X12, Edifact, Base 256 , all according to ISO 646Orientationomnidirectional: . Symbol size: rectangular up to 144 x 144 modules rectangular up to 16 x 48 modules. Data format: ASCII, C40, Text, X12, Edifact, Base 256 , all according to ISO 646. Orientation: omnidirectional. Camera: . TypeCMOS , Global shutterNumber of pixels752 x 480 pixelsGray scale256Image recordingreal-time , Program-controlled or triggered externally: . Type: CMOS , Global shutter. Number of pixels: 752 x 480 pixels. Gray scale: 256. Image recording: real-time , Program-controlled or triggered externally. MTTFd: 40.5 a. Mission Time (TM): 8 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: Ready for operation. LED indication: for good/poor reading. Operating voltage: 24 V DC ± 15% , PELV. No-load supply current: max. 250 mA. Power consumption: 6 W. Interface type: serial , RS 232. Transfer rate: max. 115.2 kBit/s. Cable length: max. 30 m. Interface type: Ethernet. Protocol: TCP/IP. Transfer rate: 100 MBit/s. Cable length: max. 30 m. Input voltage: to be applied externally 24 V ± 15% PELV. Number/Type: Trigger. Input current: approx. 10 mA at 24 V DC. Switching threshold: low: < 10 V, high: > 15 V. Cable length: max. 30 m. Number/Type: GOOD, BAD, Matchcode. Switching type: PNP. Switching voltage: to be applied externally 24 V ± 15 % PELV. Switching current: 100 mA each output. Cable length: max. 30 m. Standard conformity: . Noise immunityEN 61326-1Emitted interferenceEN 61000-6-4Degree of protectionEN 60529Laser classIEC 60825-1:2007: . Noise immunity: EN 61326-1. Emitted interference: EN 61000-6-4. Degree of protection: EN 60529. Laser class: IEC 60825-1:2007. IECEx approval: IECEx INE 14.0042X. ATEX approval: INERIS 14 ATEX 0035X Device type: GUBW1.D.OS-OPC120W-F200-R2. Marking II 2 GDEx db IIC T6 GbEx tb IIIC T85°C Db: . Marking: II 2 GDEx db IIC T6 GbEx tb IIIC T85°C Db. Ambient temperature: 0 ... 37 °C (32 ... 98.6 °F). Connection type: Connection terminals, max. conductor cross-section 2.5 mm2. Conductor cross section: 0.13 ... 2.5 mm2. Cable gland: 3 ... 8.5 mm. Enclosure cover: threaded round cover. Cover fixing: flamepath thread. Cover seal: none, O-ring for IP66/67. Flamepath grease: petroleum jelly. Degree of protection: IP66 (IP66/IP67 with O-ring). Material: . Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey): . Enclosure: aluminum alloy. Glass: thermo-resistant tempered glass. Finish: epoxy coated RAL 7005 (grey). Mass: approx. 7 kg. Dimensions: . Height279 mmWidth202 mmDepth134 mm: . Height: 279 mm. Width: 202 mm. Depth: 134 mm. Grounding: M6 external grounding points

Brand	Pepperl Fuchs
Lifecycle status	active
