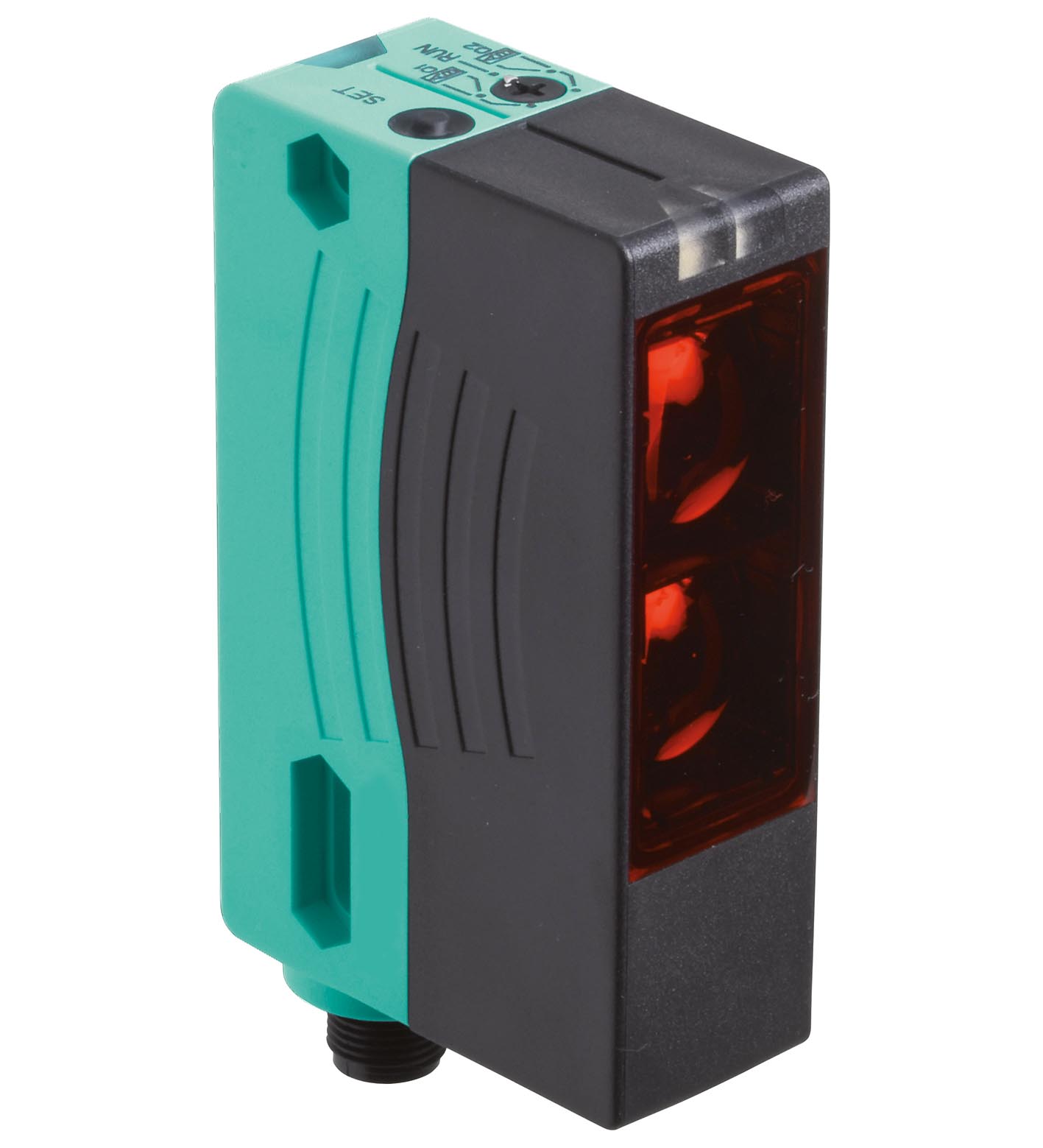

OQD8000-R300-2EP-V1-L

Diffuse mode sensor (PRT). Diffuse sensor with measurement core technology, Extremely long detection range paves the way for new applications , Pulse Ranging Technology (PRT), Visible light source for...

Diffuse mode sensor (PRT). Diffuse sensor with measurement core technology, Extremely long detection range paves the way for new applications , Pulse Ranging Technology (PRT), Visible light source for easy alignment, Minimal black-white difference, Absolutely reliable background suppression. Detection range: 0.03 ... 8 m. Adjustment range: 0.05 ... 8 m. Reference target: Kodak white (90%). Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTSLaser class1MWave length660 nmBeam divergence< 25 mradPulse length4 nsRepetition rate250 kHzmax. pulse energy< 2.4 nJ: . Note: LASER LIGHT , DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. Laser class: 1M. Wave length: 660 nm. Beam divergence: < 25 mrad. Pulse length: 4 ns. Repetition rate: 250 kHz. max. pulse energy: < 2.4 nJ. Black-white difference (6 %/90 %): < 0.5 %. Angle deviation: max. ± 2°. Measuring method: Pulse Ranging Technology (PRT). Diameter of the light spot: vertical 60 mm , horizontal 30 mm at a distance of 2 m. Ambient light limit: 50000 Lux. MTTFd: 100 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow for switching state. Teach-in indicator: Teach-In: LED green/yellow equiphase flashing; 2.5 Hz Teach Error:LED green/yellow non equiphase flashing; 8.0 Hz. Control elements: 5-step rotary switch for operating modes selection (threshold setting and operating modes). Control elements: Switch for setting the threshold values. Operating voltage: 10 ... 30 V DC. Ripple: 10 % within the supply tolerance. No-load supply current: ≤ 80 mA / 24 V DC. Time delay before availability: < 0.7 s , for temperatures < -30 °C compliance of the specification 5 mins after power on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Switching frequency: 50 Hz. Response time: 5 ms. Product standard: EN 60947-5-2. Laser safety: EN 60825-1:2014. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. FDA approval: IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 4-pin, M12 x 1 connector. Material: . HousingPlastic ABSOptical facePMMA: . Housing: Plastic ABS. Optical face: PMMA. Mass: 90 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
