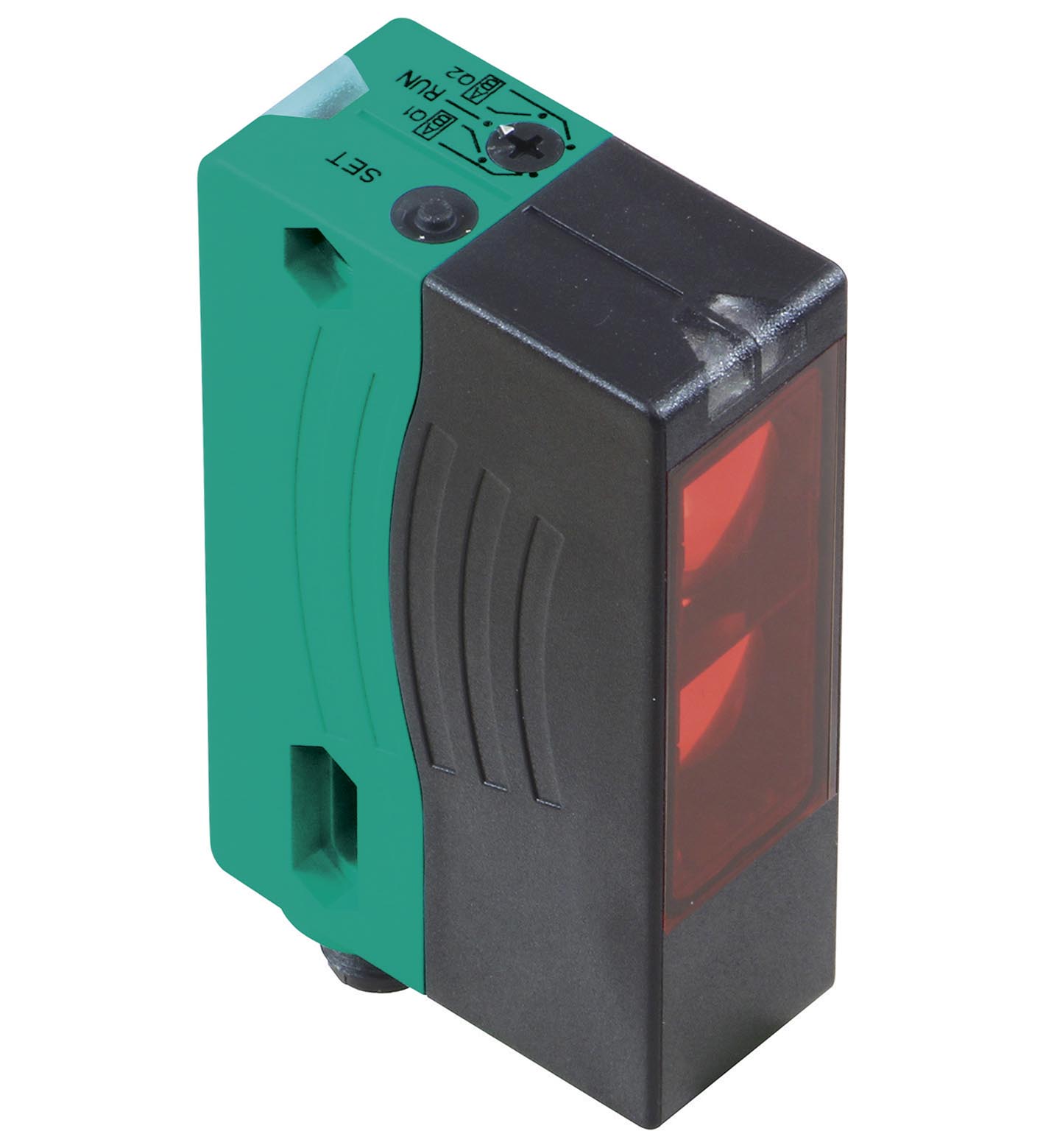

OQR50M-R300-2EP-V1

Retroreflective sensor (PRT). Retroreflective sensor with measurement core technology, Pulse Ranging Technology (PRT), Optimized for use with fixed reflectors, Good alignability due to red transmissio...

Retroreflective sensor (PRT). Retroreflective sensor with measurement core technology, Pulse Ranging Technology (PRT), Optimized for use with fixed reflectors, Good alignability due to red transmission LED, Reliable detection of reflecting metall objects. Effective detection range: 0 ... 50 m. Reflector distance: 0.2 ... 50 m. Reference target: 3 x REF-H100. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Angle deviation: max. ± 2°. Measuring method: Pulse Ranging Technology (PRT). Diameter of the light spot: approx. 16 cm x 18 cm at a distance of 10 m. Ambient light limit: 50000 Lux. MTTFd: 100 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow for switching state. Teach-in indicator: Teach-In: LED green/yellow equiphase flashing; 2.5 Hz Teach Error:LED green/yellow non equiphase flashing; 8.0 Hz. Control elements: 5-step rotary switch for operating modes selection (threshold setting and operating modes). Control elements: Switch for setting the threshold values. Operating voltage: 10 ... 30 V DC. Ripple: 10 % within the supply tolerance. No-load supply current: ≤ 80 mA / 24 V DC. Time delay before availability: < 0.7 s , for temperatures <-30°C compliance of the specification 5 mins after power on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Switching frequency: 50 Hz. Response time: 5 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 4-pin, M12 x 1 connector. Material: . HousingPlastic ABSOptical facePMMA: . Housing: Plastic ABS. Optical face: PMMA. Mass: 90 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
