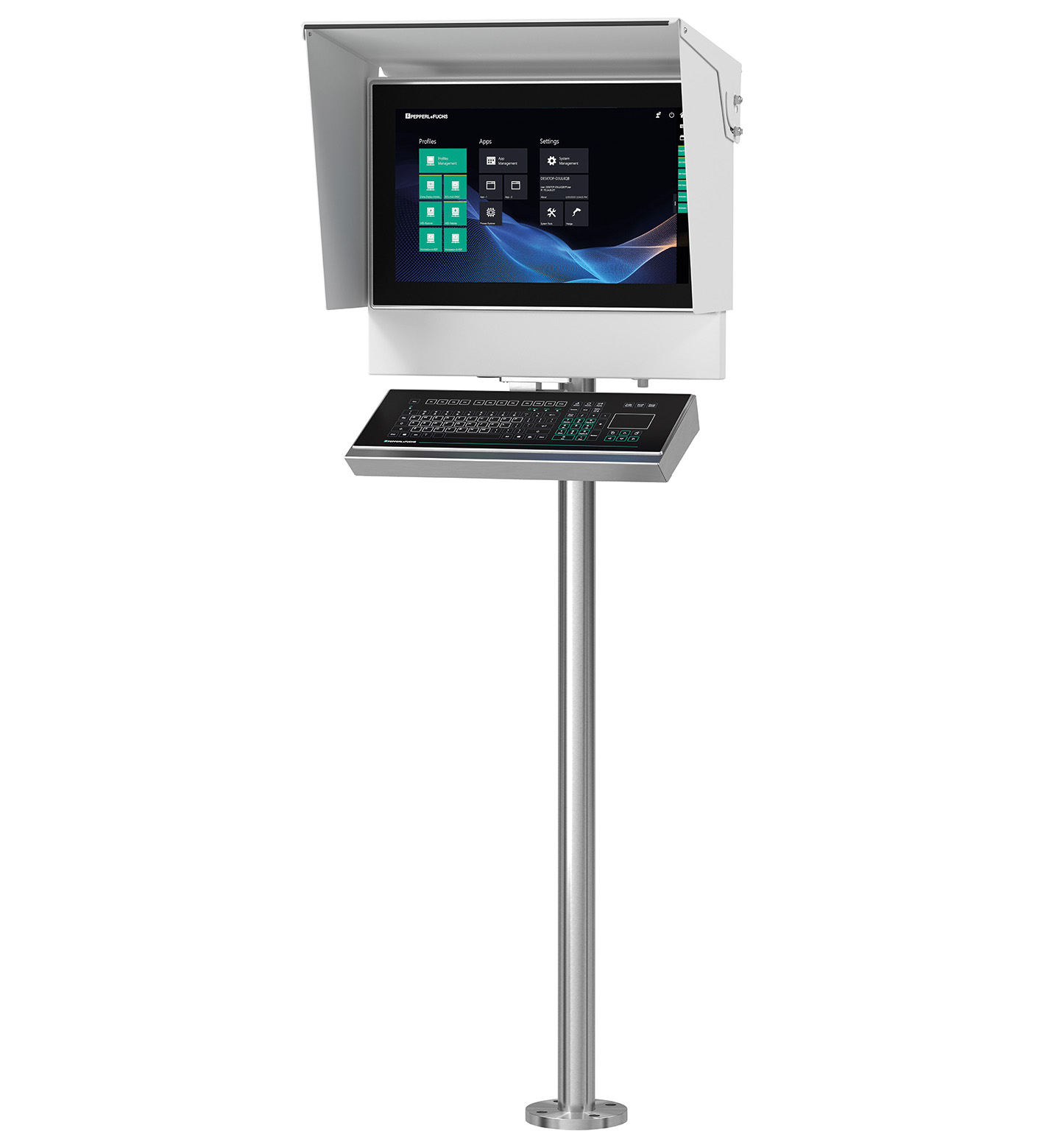

PC-320S-*B-*
Personal Computer - System with Enclosure. Personal Computer - System with Enclosure, Designed for use in the extended temperature range of -20 °C ... 50 °C with rugged aluminum housing, Suitable for...
Personal Computer - System with Enclosure. Personal Computer - System with Enclosure, Designed for use in the extended temperature range of -20 °C ... 50 °C with rugged aluminum housing, Suitable for outdoor use with various sunshield options, Fully modular design allowing easy migration of individual<BR> components, High application flexibility due to identical basic components that can be can be configured as required, 7th generation Intel Celeron and i5 embedded processor generation, Optional preinstalled RFID20-* reader. Type: Personal Computer. Processor: 1N: Intel® Celeron2N: Intel® Core™ i5-7300U. RAM: 2x SO-DIMM slots,supports up to 32 GB DDR4-2133 (one SO-DIMM slot) Configurable RAM options:Wide temperature grade (temperature option B):L: 1x 8GB DDR4-2133M: 1x 16GB DDR4-2133P: 2x 16GB DDR4-2133 [Industrial, general purpose (Non-Ex), i5]. Mass storage: Storage interface:1x M.2 2242/2280 M Key, PCIe + SATA 3 Configurable storage options:Wide temperature grade (temperature option B):P: 256 GB M.2 NVMe 1.3 (PCIe 4x)Q: 512 GB M.2 NVMe 1.3 (PCIe 4x). Power consumption: . ACmax. load: 64 W Further information can be found in the VisuNet FLX manual for the extended temperature range.DCmax. load: 55 W Further information can be found in the VisuNet FLX manual for the extended temperature range.: . AC: max. load: 64 W Further information can be found in the VisuNet FLX manual for the extended temperature range.. DC: max. load: 55 W Further information can be found in the VisuNet FLX manual for the extended temperature range.. Display: . TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21,5 '')Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio22FC: 5000:1Brightness22FC: 300 cd/m2Viewing angle22FC: 170 ° horizontal, 160 ° verticalLife span22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F): . Type: Liquid Crystal Display (LCD) with LED backlight. Screen size: 54.61 cm (21,5 ''). Resolution: 1920 x 1080 pixels (Full HD) Aspect ratio 16:9. Color depth: 24 bit (16.7 M) color. Contrast ratio: 22FC: 5000:1. Brightness: 22FC: 300 cd/m2. Viewing angle: 22FC: 170 ° horizontal, 160 ° vertical. Life span: 22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F). Input devices: . Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)RFID readerOptional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data): . Touch screen: 10-finger multi-touch, glove-friendlyConfigurable display options:22FC: Capacitive touch, optical bonding. Keyboard: Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet). RFID reader: Optional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data). Interface type: 1 x DisplayPort 1.2 (DP++) 1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw) 1 x Audio Line-out 2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard2 x USB 3.1 Gen1 (5 Gbps) ports1 x USB 2.0 port 2 x LAN ports (RJ45, 10/100/1000 Mbps) 2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45). Electromagnetic compatibility: . Directive 2014/30/EUNon-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013: . Directive 2014/30/EU: Non-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013. Explosion protection: . Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024: . Directive 2014/34/EU: EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024. Radio and telecommunication terminal equipment: . Directive 2014/53/EURFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008: . Directive 2014/53/EU: RFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating system: Windows® 10 IoT Enterprise LTSC 2021 x64. Operating temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Relative humidity: max. relative humidity 93% at 50°C (non-condensing) according to EN60068-2-78. Climatic conditions: Passive cooling, no rotating parts.. Altitude: Operating altitude max. 2000 m. Shock resistance: 18 shocks 15 g, 11 ms all axis, IEC 60068-2-27. Vibration resistance: 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6. Degree of protection: IP66 Type 4X: with RFID option for indoor use only. Material: Housing: Powder-coated marine-grade aluminum alloy (EN AW-5754). Installation: System with enclosure. Mass: Approx. 11.4 kgApprox. 13.4 kg with AC power supplywith top sunshield: + Approx. 1.6 kgwith top and side sunshield: + Approx. 3 kg. Dimensions: 577 mm x 466 mm x 233 mm. UL approval: . Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL HazLocUL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C: . Approved for: UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL HazLocUL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C. ATEX approval: . ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc: . ATEX certificate: UL 22 ATEX 2481X. ATEX marking: II 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc. IECEx approval: . IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3: . IECEx certificate: IECEx ULD 22.0019X. IECEx marking: Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc. IECEx standard: IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3. CCC approval: . CCC certificate2024322309005748CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021: . CCC certificate: 2024322309005748. CCC marking: Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc. CCC standard: GB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
