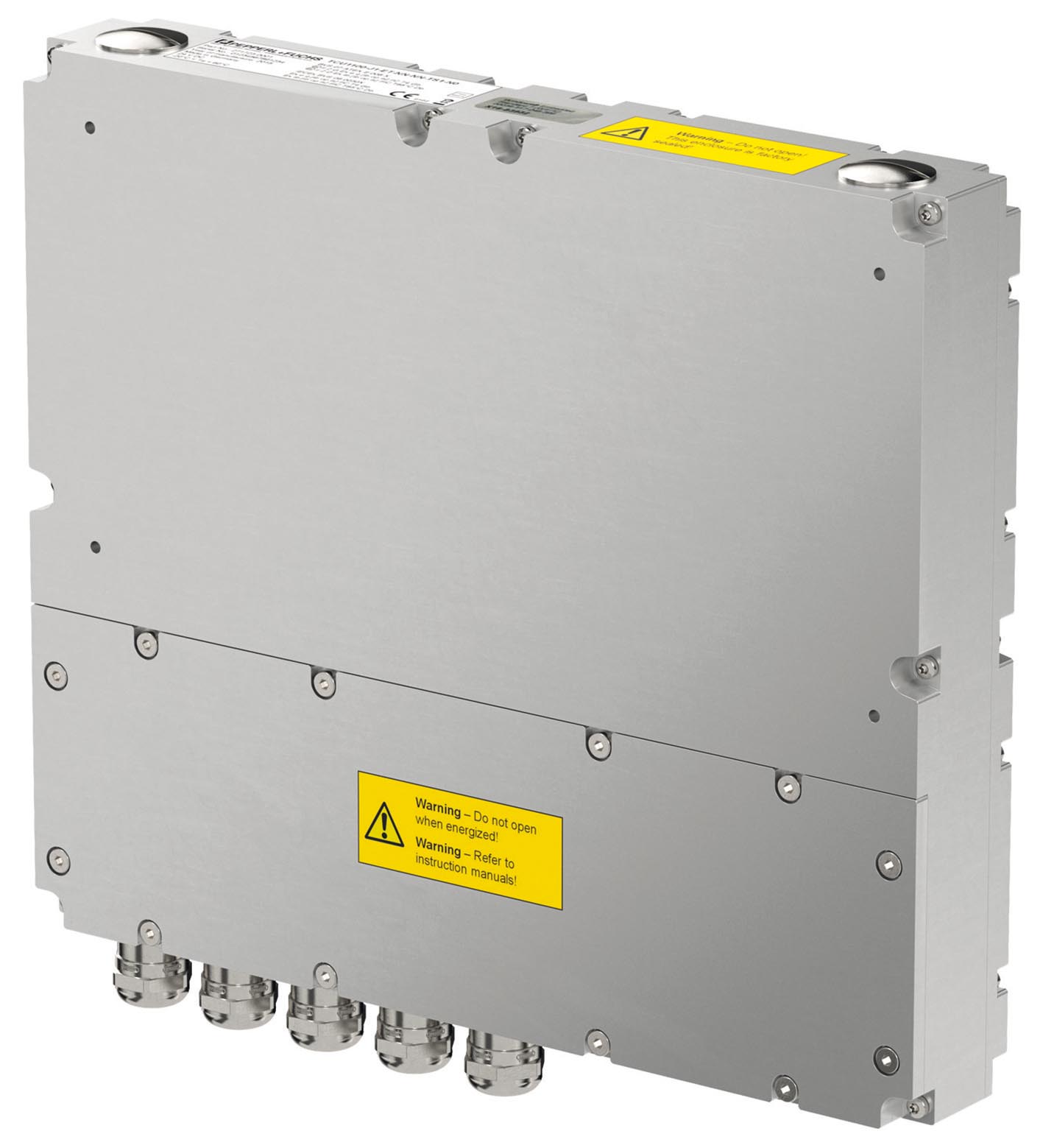

PCU1200-* (Intel® Atom Elkhart Lake Processor)

Personal Computer Unit (PCU). Personal Computer Unit (PCU), Modular, lightweight design, Low-power design with minimal heat dissipation, High connectivity flexibility due to multiple interface options...

Personal Computer Unit (PCU). Personal Computer Unit (PCU), Modular, lightweight design, Low-power design with minimal heat dissipation, High connectivity flexibility due to multiple interface options, Powerful Intel® Atom Elkhart Lake processor, Certified for ATEX and IECEx Zone 2/22, IP66. Processor: Intel® Atom Elkhart Lake x6425RE. RAM: 8 GB. Mass storage: 240 GByte industrial grade SSD optional: 480 GByte SSD. Input voltage: 24 V DC , 2 A SELV/PELV. Power consumption: max. 48 W. Interface type: Standard:Pepperl+Fuchs interface v1.0 for display units 1 x Ethernet 100/1000BASE-TX (Ex e) or1 x fiber optic 1000BASE-SX (Multimode) or1 x fiber optic 1000BASE-LX (Singlemode),1 x USB 2.0 (Ex e; service port),2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs keyboard and mouse) Optional:1 x barcode reader interface Pepperl+Fuchs Pscan-D/B (Ex i) "S3": 1 x barcode reader interface for wired 1-D scanners IDM-160-D*, IDM-Z1-160-D-* and base station IDMx61-B-* and IDM-Z1-x61-B-* (Ex i)"S4": 1 x barcode reader interface for wired 2-D Scanner IDM-Z1-260-D-* (Ex i)"S5": 1 x RS-232 interface with Power Supply for miscellaneous devices and peripherals (Ex i) 1 x RS-232 (Ex e) 1 x RS-485 (Ex e) 1 x Ethernet 100/1000Base-TX (Ex e) Bluetooth v4.0, communication distance up to 30 m in open terrain, transmission power +8 dBm, transmission frequency 2.402 ... 2.48 GHz. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations) ; EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations) ; EN 61000-6-4:2007+A1:2011. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012-09: . Directive 2011/65/EU (RoHS): EN 50581:2012-09. Operating system: Windows® 10 IoT Enterprise LTSC 2021 x64. Operating temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Relative humidity: 93% at 40°C, non-condensating, according to EN 60068-2-78. Shock resistance: 30 g , 11 ms all axis, IEC 60068-2-27. Vibration resistance: 5 ... 100 Hz 1 G, 12 m/s2. Degree of protection: IP66 ( when mounted on the display unit from Pepperl+Fuchs ). Material: . Housinganodized aluminum: . Housing: anodized aluminum. Mass: approx. 5 kg. Dimensions: 280 mm x 240 mm x 43 mm. EU-type examination certificate: BVS 16 ATEX E 082 X. Marking II 3G Ex ec [ib] IIC T4 IP66 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C IP66 Dc: . Marking: II 3G Ex ec [ib] IIC T4 IP66 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C IP66 Dc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014. IECEx approval: IECEx BVS 16.0060X. Approved forEx ec [ib] IIC T4 IP66 GcEx tc [ib] IIIC T85°C IP66 DcStandardsIEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013: . Approved for: Ex ec [ib] IIC T4 IP66 GcEx tc [ib] IIIC T85°C IP66 Dc. Standards: IEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013
