PCV80-F200-SSI-V19

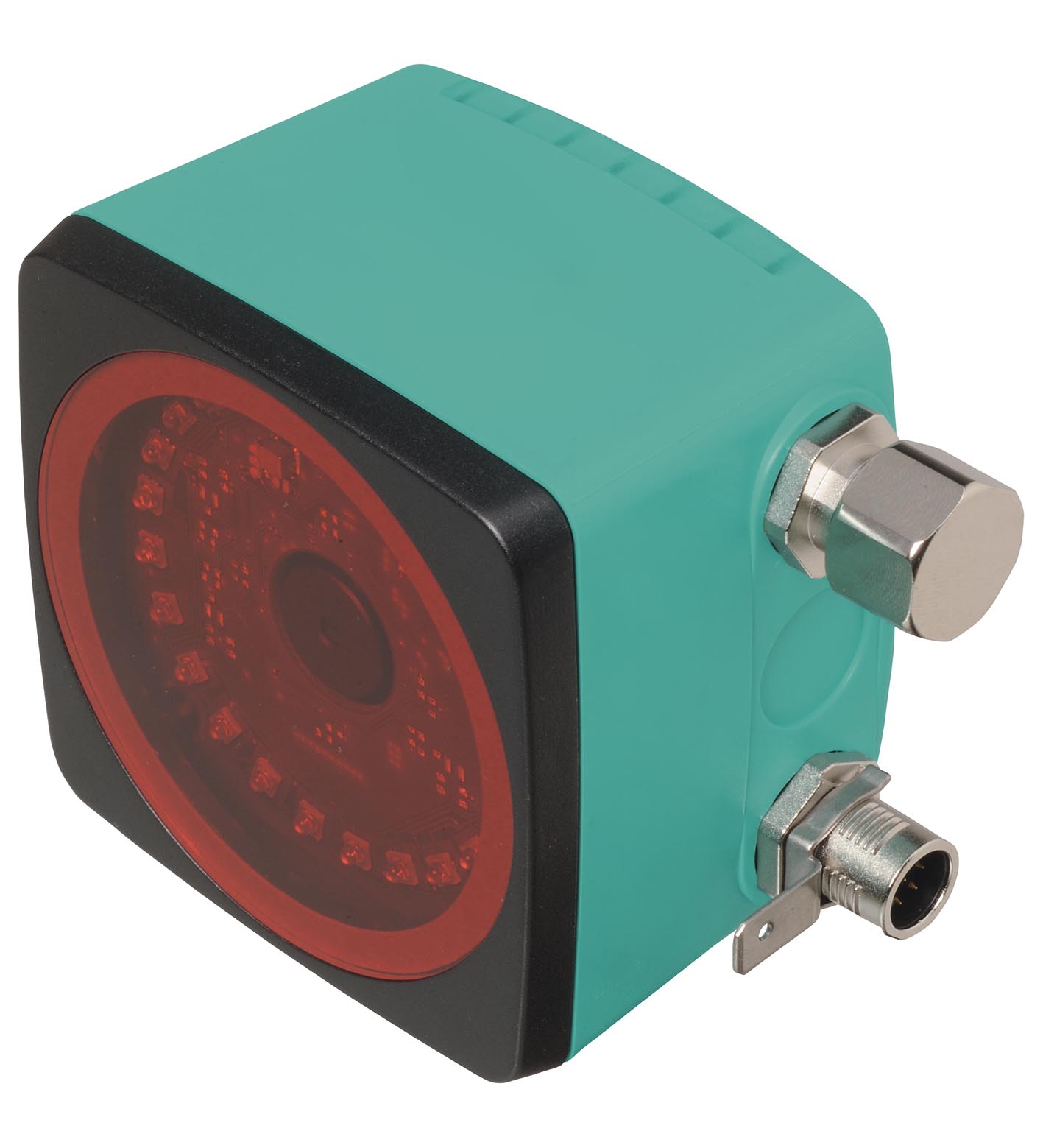

Optical reading head. Read head for incident light positioning system, SSI interface, Non-contact positioning on Data Matrix code tape, Mechanically rugged: no wearing parts, long operating life, main...

Optical reading head. Read head for incident light positioning system, SSI interface, Non-contact positioning on Data Matrix code tape, Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Travel ranges up to 10 km, in X and Y direction. Passage speed: ≤ 12.5 m/s. Measuring length: max. 10000 m. Light type: Integrated LED lightning (red). Scan rate: 40 s-1. Read distance: 80 mm. Depth of focus: ± 15 mm. Reading field: 40 mm x 25 mm. Ambient light limit: 100000 Lux. Resolution: ± 0.1 mm. Camera: . TypeCMOS , Global shutter: . Type: CMOS , Global shutter. Processor: . Clock pulse frequency600 MHzSpeed of computation4800 MIPSDigital resolution32 Bit: . Clock pulse frequency: 600 MHz. Speed of computation: 4800 MIPS. Digital resolution: 32 Bit. MTTFd: 93 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. LED indication: 7 LEDs (communication, alignment aid, status information). Operating voltage: 15 ... 30 V DC , PELV. No-load supply current: max. 200 mA. Power consumption: 3 W. Interface type: SSI interface. Data output code: Gray code, binary code , programmable. Monoflop time: Tm = 10 µs. Clock frequency: 100 ... 1000 kHz. Query cycle time: ≥ 1 ms. Pause time: ≥ 20 µs double request possible, if tp ≤ 10 µs. Interface type: USB (serial comport). Protocol: 8E1. Transfer rate: 38.4 ... 460.8 kBit/s. Input type: 1 to 2 functional inputs , programmable. Input impedance: 26 kΩ. Output type: 1 to 2 switch outputs , PNP , programmable , short-circuit protected. Switching voltage: Operating voltage. Switching current: 150 mA each output. Photobiological safety: exempt group according to EN 62471:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. CE conformity: CE. UKCA conformity: UKCA. UL approval: cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: 0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!). Storage temperature: -20 ... 85 °C (-4 ... 185 °F). Relative humidity: 90 % , noncondensing. Connection type: 8-pin, M12 x 1 connector. Degree of protection: IP67. Material: . HousingPC/ABS: . Housing: PC/ABS. Mass: approx. 160 g. Dimensions: . Height70 mmWidth70 mmDepth50 mm: . Height: 70 mm. Width: 70 mm. Depth: 50 mm. X resolution (protocol): 1 mm. Y resolution (protocol): 1 mm. Code tape orientation: 0 °. "No Position" X value: 0. "No Position" Y value: 0. "No Position" speed value: 127. Overspeed threshold (protocol): 12.5 m/s. X value in case of error: Error number. Y value in case of error: Error number. Speed value in case of error: Error number. SSI coding: digital. Code tape width: two-rowed. X positon offset: 0 mm. Function input/output: inactive. Data content: X position , status

Brand	Pepperl Fuchs
Lifecycle status	active
