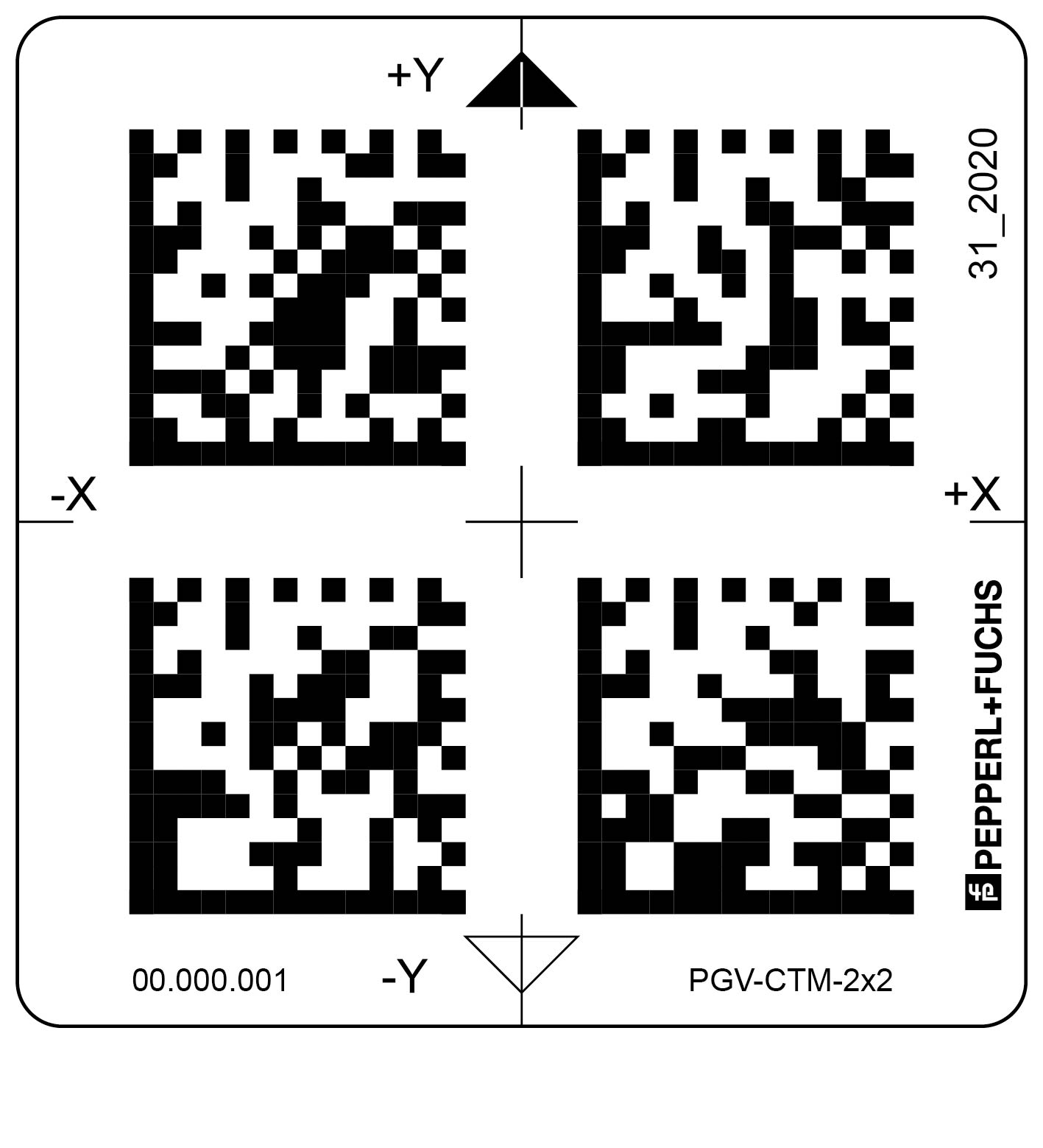

PGV-CTM-2x2

Metal Data Matrix tag. Metal Data Matrix tag for PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, Robust and insensitive to ambient interference....

Metal Data Matrix tag. Metal Data Matrix tag for PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, Robust and insensitive to ambient interference. Number interval: 1 ... 99999999 = Tag number (see Order Information). Light type: red blue/white Not suitable for infrared light color!. Operating temperature: -40 ... 80 °C (-40 ... 176 °F). Installation temperature: 10 ... 40 °C (50 ... 104 °F). Environmental resistance: UV radiation Humidity. Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 0.5 mm. Material: Aluminum. Mass: 3 g. Storage: Maximum 2 years under normal storage conditions.. Adhesive: Acrylate-based adhesive ; curing 72 h. Adhesive strength: Average values (FTM2) Metal (stainless steel, aluminum) : 33 N / 25 mm ABS : 32 N / 25 mm PP : 31 N / 25 mm. Note: To achieve a good adhesive bond, the material surfaces being glued must be completely dry and clean. Grease-free solvents such as n-Heptane and isopropyl alcohol are recommended for cleaning. Bonding should be carried out using the highest possible pressure and at a temperature of at least +10 °C. The higher the pressure and temperature, the better the adhesive will penetrate the pores of the base material, resulting in higher adhesive strength.. Ordering information: see additional information On the next page

Brand	Pepperl Fuchs
Lifecycle status	active
