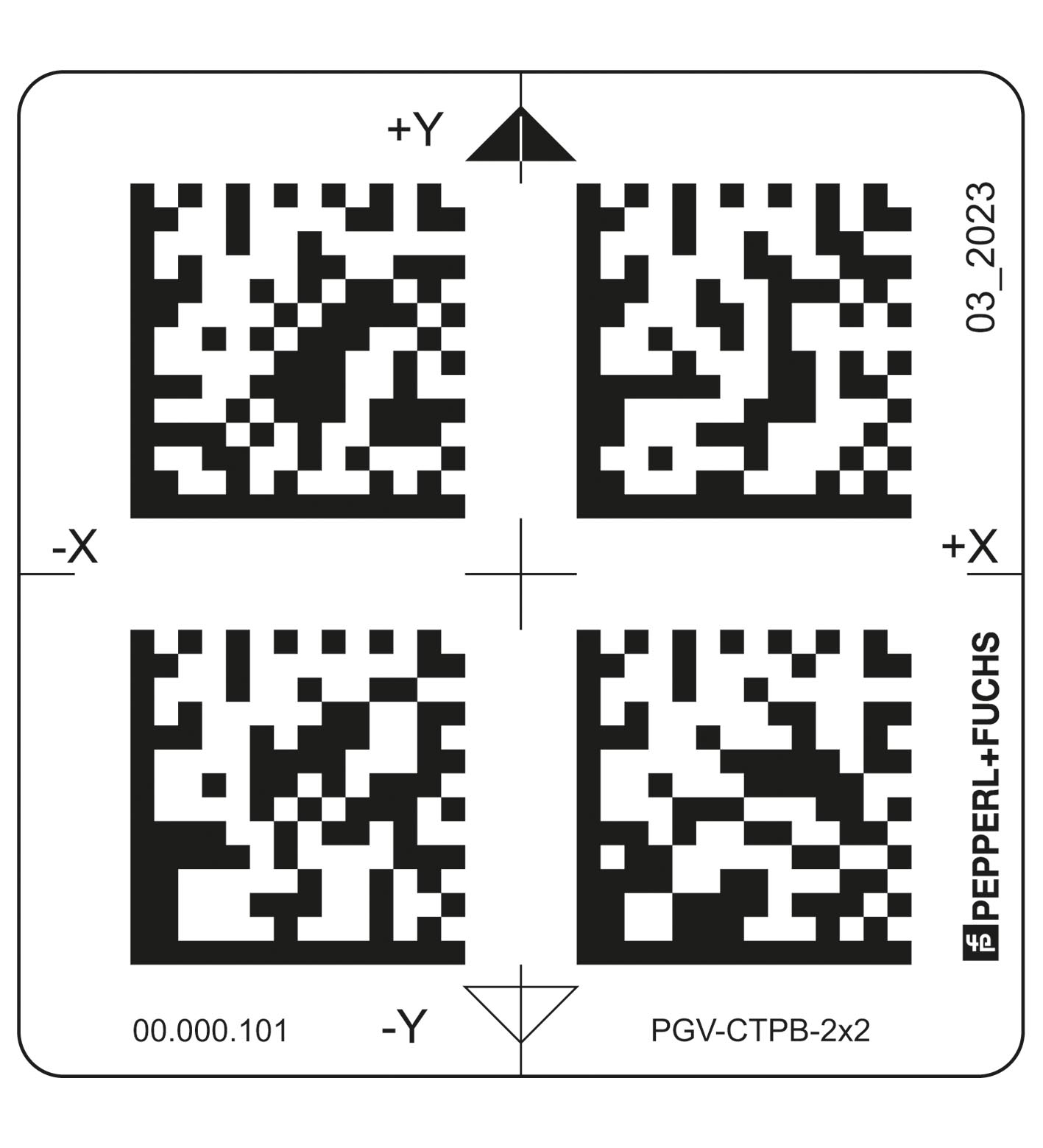

PGV-CTPB-2x2

Polyester Data Matrix tag. Self-adhesive polyester Data Matrix tag, backprinted, for the PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, Resistan...

Polyester Data Matrix tag. Self-adhesive polyester Data Matrix tag, backprinted, for the PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, Resistant against UV light. Number interval: 1 ... 99999999 = Tag number (see Order Information). Light type: red blue/white infrared. Operating temperature: -40 ... 95 °C (-40 ... 203 °F). Installation temperature: 10 ... 40 °C (50 ... 104 °F). Environmental resistance: UV radiation Humidity. Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 0.2 mm. Material: polyester. Mass: 0.9 g. Storage: Maximum 2 years under normal storage conditions.. Adhesive: Acrylate-based adhesive ; curing 72 h. Adhesive strength: Average values (FTM2) Metal (stainless steel, aluminum) : 33 N / 25 mm ABS : 32 N / 25 mm PP : 31 N / 25 mm. Note: To achieve a good adhesive bond, the material surfaces being glued must be completely dry and clean. Grease-free solvents such as n-Heptane and isopropyl alcohol are recommended for cleaning. Bonding should be carried out using the highest possible pressure and at a temperature of at least +10 °C. The higher the pressure and temperature, the better the adhesive will penetrate the pores of the base material, resulting in higher adhesive strength.. Ordering information: see additional information On the next page

Brand	Pepperl Fuchs
Lifecycle status	active
