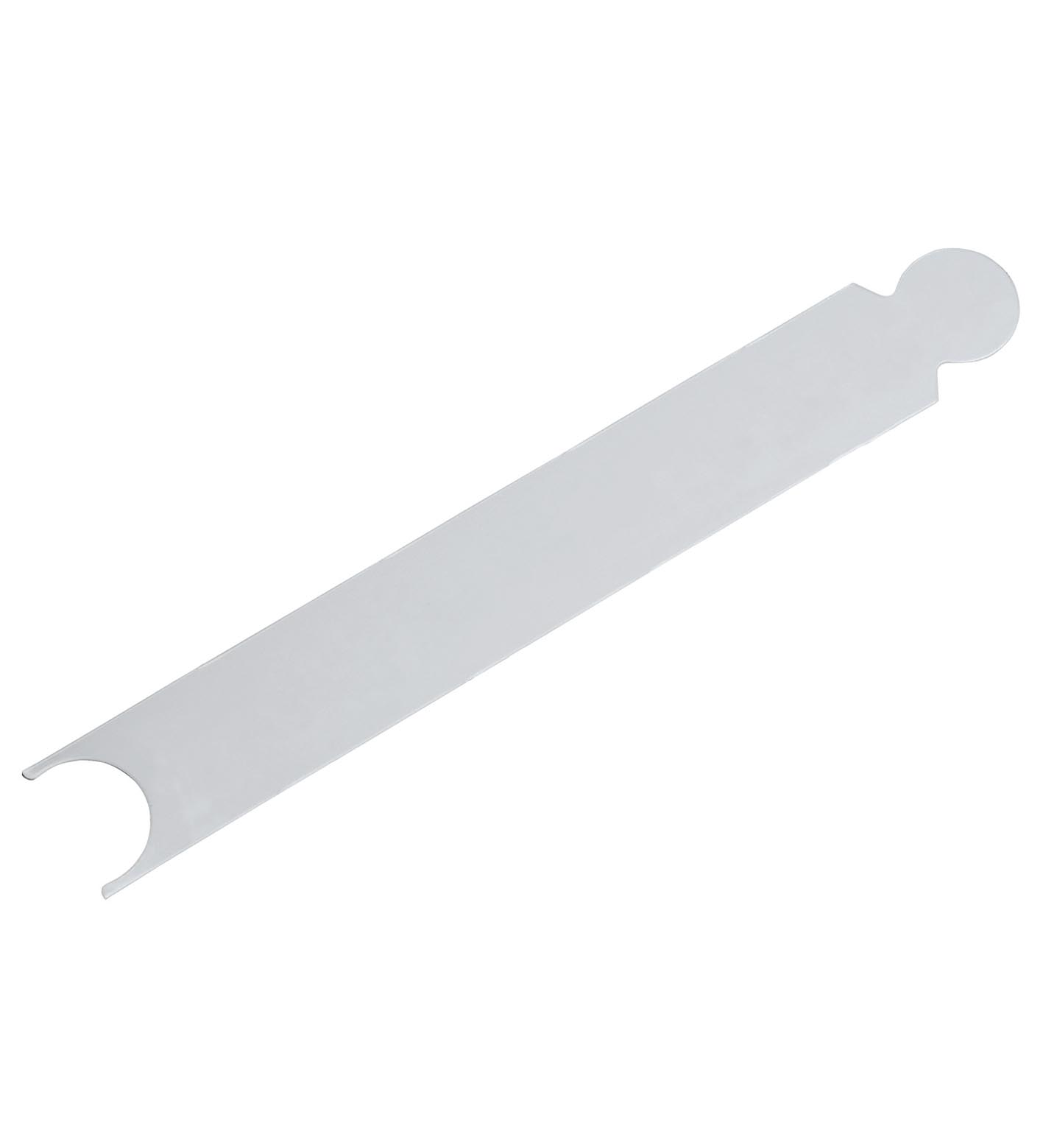

PGV-PR-PROTECT200

Protective mounting bar. Mounting protection strips for protecting the countersunk profile rails (200 mm) during installation in the floor. , Mounting aid, Easily interchangeable. Code bar segment: ....

Protective mounting bar. Mounting protection strips for protecting the countersunk profile rails (200 mm) during installation in the floor. , Mounting aid, Easily interchangeable. Code bar segment: . Nominal segment length200 mmWidth30 mm: . Nominal segment length: 200 mm. Width: 30 mm. Operating temperature: -40 ... 90 °C (-40 ... 194 °F). Installation temperature: -40 ... 90 °C (-40 ... 194 °F). Environmental resistance: UV radiation Humidity. Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 1 mm. Material: PVC. Mounting type: adhesive. Adhesive: Acrylate-based adhesive. Adhesive strength: 4 N / 25 mm

Brand	Pepperl Fuchs
Lifecycle status	active
