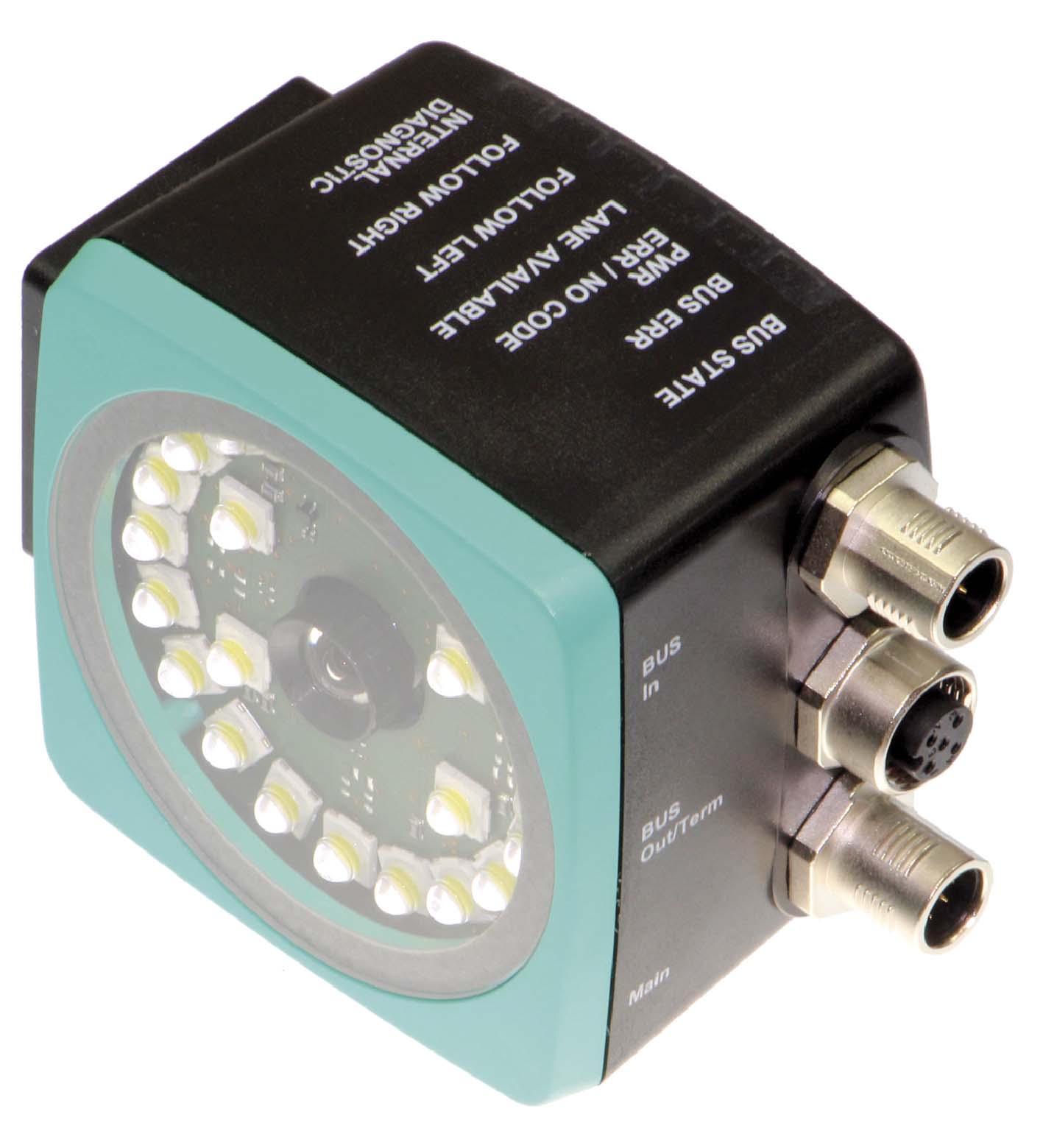

PGV100-F200A-B16-V15

Optical reading head. Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, CANopen interface, Non-contact positioning on Data...

Optical reading head. Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, CANopen interface, Non-contact positioning on Data Matrix code tape, Noncontact positioning with Data Matrix TAGs, Noncontact lane tracking of a colored strip, Reading of Data Matrix control codes, White-blue light. Passage speed: ≤ 8 m/s. Measuring length: max. 10000 m. Light type: Integrated LED lightning (white/blue). Scan rate: 25 s-1. Latency: 60 ms. Read distance: 100 mm. Depth of focus: ± 20 mm. Reading field: 120 mm x 80 mm. Ambient light limit: 100000 Lux. Accuracy: ± 0.2 mm. Camera: . TypeCMOS , Global shutter: . Type: CMOS , Global shutter. Processor: . Clock pulse frequency600 MHzSpeed of computation4800 MIPSDigital resolution32 Bit: . Clock pulse frequency: 600 MHz. Speed of computation: 4800 MIPS. Digital resolution: 32 Bit. MTTFd: 92 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. LED indication: 7 LEDs (communication, alignment aid, status information). Operating voltage: 15 ... 30 V DC , PELV. No-load supply current: max. 400 mA. Power consumption: 6 W. Interface type: CANopen , galvanically isolated. Data output code: binary code. Transfer rate: max. 1 MBit/s. Interface type: USB Service. Input type: 1 funtion input0-level: -UBor unwired1-level: +8 V ... +UB , programmable. Input impedance: ≥ 27 kΩ. Output type: 1 to 3 switch outputs , programmable , short-circuit protected. Switching voltage: Operating voltage. Switching current: 150 mA each output. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Photobiological safety: Risk group 1 according to EN 62471:2008. CE conformity: CE. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: 0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!). Relative humidity: 90 % , noncondensing. Connection type: 8-pin, M12x1 connector, standard (supply+IO) 5-pin, M12x1 socket, A-coded (bus out/termination) 5-pin, M12x1 connector, A-coded (bus in). Degree of protection: IP67. Material: . HousingPC/ABS: . Housing: PC/ABS. Mass: approx. 200 g. Dimensions: . Height70 mmWidth70 mmDepth50 mm: . Height: 70 mm. Width: 70 mm. Depth: 50 mm. X resolution (protocol): 0.1 mm. Y resolution (protocol): 0.1 mm. Speed resolution (protocol): 0.1 m/s. Angle resolution: 0.1 °. Baud rate: 500 kBit/s. Extrapolation: On. Read head address: 3

Brand	Pepperl Fuchs
Lifecycle status	active
