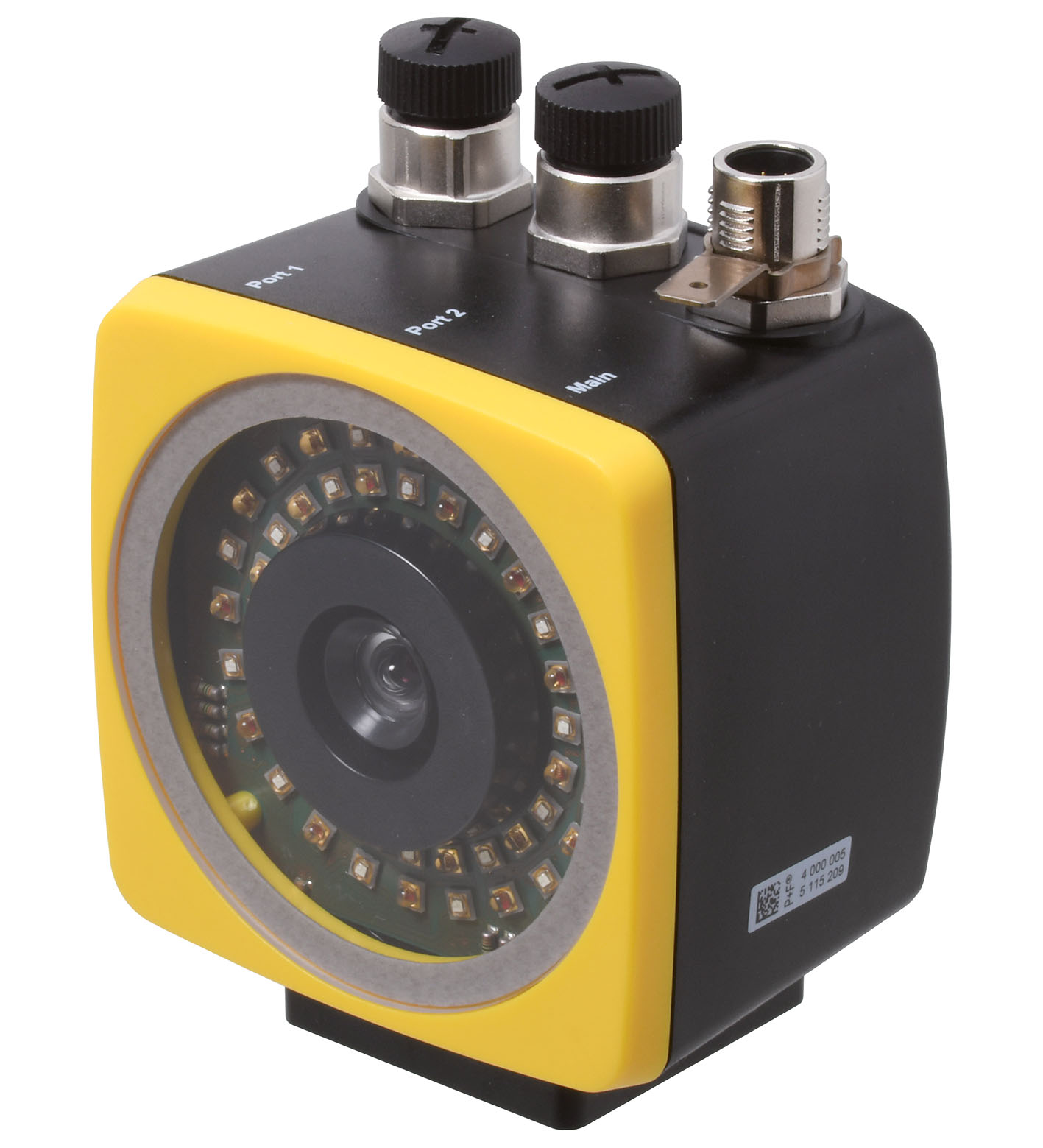

PGV100AQ-F200A-B28-V1D

Optical reader - safePGV. Read head for incident light positioning system, SIL 3 (EN 61508), PROFINET interface, Category 4 PL e (EN ISO 13849), PROFIsafe interface, Safe, non-contact positioning on D...

Optical reader - safePGV. Read head for incident light positioning system, SIL 3 (EN 61508), PROFINET interface, Category 4 PL e (EN ISO 13849), PROFIsafe interface, Safe, non-contact positioning on Data Matrix code tape, Traverse distance up to 100 km , Mechanically rugged: no wearing parts, long operating life, maintenance-free, Output of code quality, Pollution detection. Passage speed: ≤ 8 m/s. Measuring length: max. 100000 m. Light type: Integrated LED lightning (red/blue). Read distance: 100 mm. Depth of focus: ± 30 mm. Field of view: typ. 120 mm x 80 mm. Ambient light limit: 30000 Lux. Accuracy: . Non safety-related X, Y± 0.2 mmNon safety-related angle α± 0.5 °Safety-related XSee the original instructions: . Non safety-related X, Y: ± 0.2 mm. Non safety-related angle α: ± 0.5 °. Safety-related X: See the original instructions. Camera: . TypeCMOS , Global shutter: . Type: CMOS , Global shutter. Processor: . Clock pulse frequency600 MHzSpeed of computation4800 MIPSDigital resolution32 Bit: . Clock pulse frequency: 600 MHz. Speed of computation: 4800 MIPS. Digital resolution: 32 Bit. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Reaction time: 165 ms. MTTF: 41 a. MTTFd: 104.74 a. Mission Time (TM): 20 a. PFH: 1.09 E-8 typ.. LED indication: 7 LEDs (communication, status messages). Operating voltage: 20 ... 30 V DC , PELV. No-load supply current: max. 300 mA. Power consumption: 6 W. Interface type: 100 BASE-TX. Protocol: PROFINET IO Real-Time (RT) Conformance class B. Transfer rate: 100 MBit/s. Fieldbus standard: PROFIsafe in accordance with IEC 61784-3-3; profile 2.4. Functional safety: EN ISO 13849-1:2023 EN 61508:2010 part 1-7. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-7:2015 EN 61326-3-1:2017. Photobiological safety: Risk group 1 according to IEC 62471. CE conformity: CE. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. TÜV approval: TÜV Rheinland 01/205/5669.02/25. Operating temperature: 0 ... 45 °C (32 ... 113 °F) , -20 ... 45 °C (-4 ... 113 °F) (noncondensing; prevent icing on the lens!). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 90 % , noncondensing. Altitude: max. 2000 m above MSL. Connection type: 8-pin, M12x1 connector, standard 4-pin, M12x1 socket, D-coded (LAN) 4-pin, M12x1 socket, D-coded (LAN). Degree of protection: IP67. Material: . HousingPC/ABS: . Housing: PC/ABS. Mass: approx. 200 g. Dimensions: . Height70 mmWidth70 mmDepth50 mm: . Height: 70 mm. Width: 70 mm. Depth: 50 mm

Brand	Pepperl Fuchs
Lifecycle status	active
