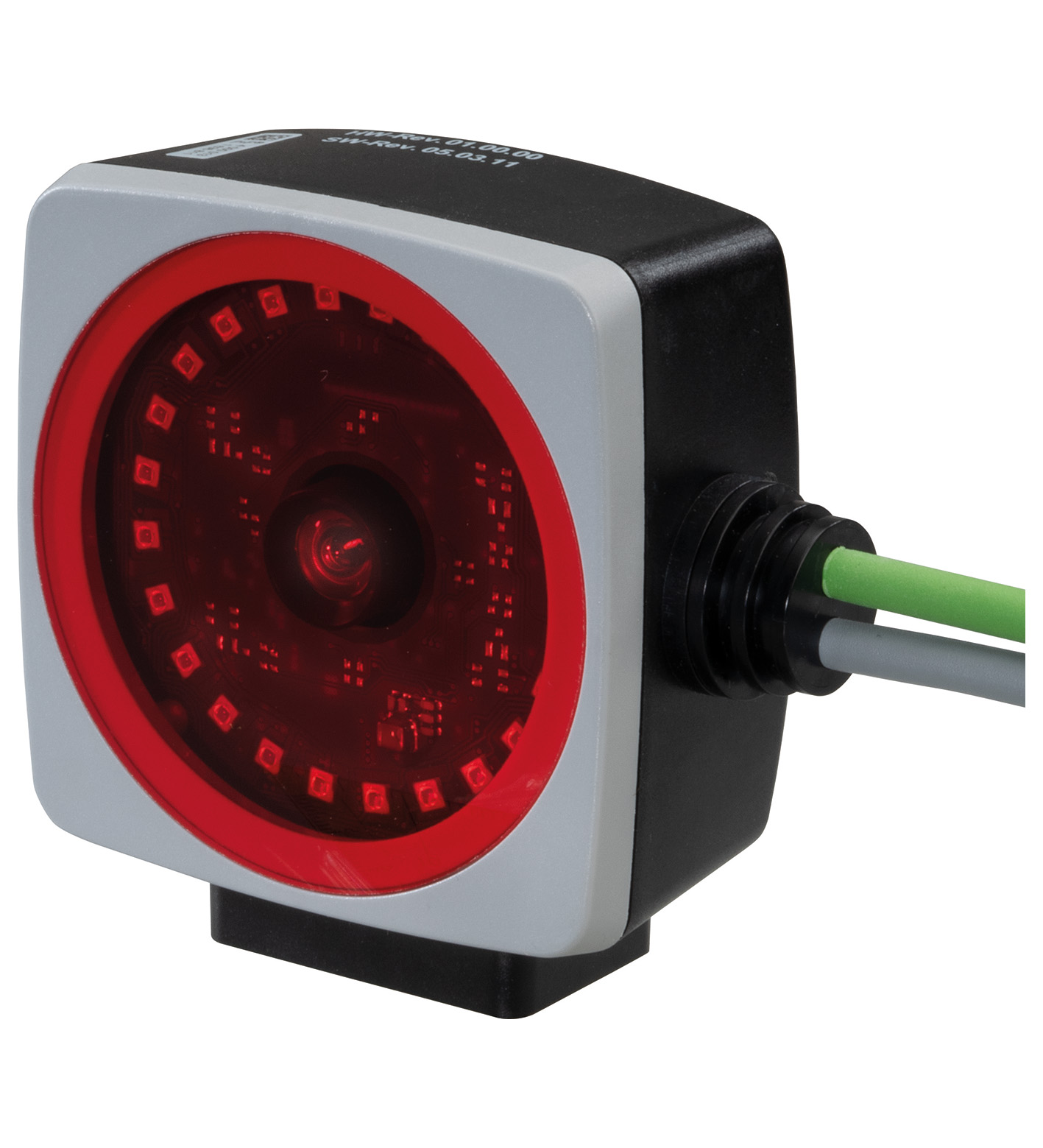

PGV100RS-F213-B12-0.7M-V1
Optical reading head. Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, TCP/IP protocol over ethernet, Non-contact position...
Optical reading head. Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, TCP/IP protocol over ethernet, Non-contact positioning on Data Matrix code tape, Visible red light, Fixed cable, Timestamp of the image capture, Synchronization option. Passage speed: ≤ 8 m/s. Measuring length: max. 10000 m. Light type: Integrated LED lightning (red). Scan rate: 100 s-1. Latency: 20 ms. Read distance: 100 mm. Depth of focus: ± 30 mm. Reading field: 120 mm x 80 mm. Resolution: 0.2 mm. Ambient light limit: 100000 Lux. Accuracy: ± 0.4 mm. Camera: . TypeCMOS , Global shutter: . Type: CMOS , Global shutter. Processor: . Clock pulse frequency600 MHzSpeed of computation4800 MIPSDigital resolution32 Bit: . Clock pulse frequency: 600 MHz. Speed of computation: 4800 MIPS. Digital resolution: 32 Bit. MTTFd: 144 a. MTBF: 72 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED indication: 2 LEDs. Operating voltage: 15 ... 30 V DC , PELV. No-load supply current: max. 200 mA. Power consumption: max. 4.8 W. Interface type: Ethernet. Protocol: TCP/IP. Transfer rate: max. 100 MBit/s. Dielectric strength: ± 16 V. Output type: 2 switch outputs, PNP. Switching voltage: Operating voltage. Switching current: max. 100 mA. Output resistance: 30 kΩ. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Photobiological safety: exempt group according to EN 62471:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005+AC:2005. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. CE conformity: CE. UKCA conformity: UKCA. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: 0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 90 % , noncondensing. Connection type: 1 x fixed cable with free cable end for supply voltage 1 x fixed cable with Ethernet socket, M12 x 1, 4-pin, D-coded. Degree of protection: IP54. Material: . HousingPC/ABSCablePUR: . Housing: PC/ABS. Cable: PUR. Cable: . Sheath diameter4.8 mmStrain relief60 NLengthL0.7 m: . Sheath diameter: 4.8 mm. Strain relief: 60 N. Length: 0.7 m. Mass: approx. 200 g. Dimensions: . Height70 mmWidth70 mmDepth35 mm: . Height: 70 mm. Width: 70 mm. Depth: 35 mm. X resolution (protocol): 0.1 mm. Y resolution (protocol): 0.1 mm. Angle resolution: 0.1 °. Function input/output 2: Illumination controll. Function input/output 3: Sync out
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
