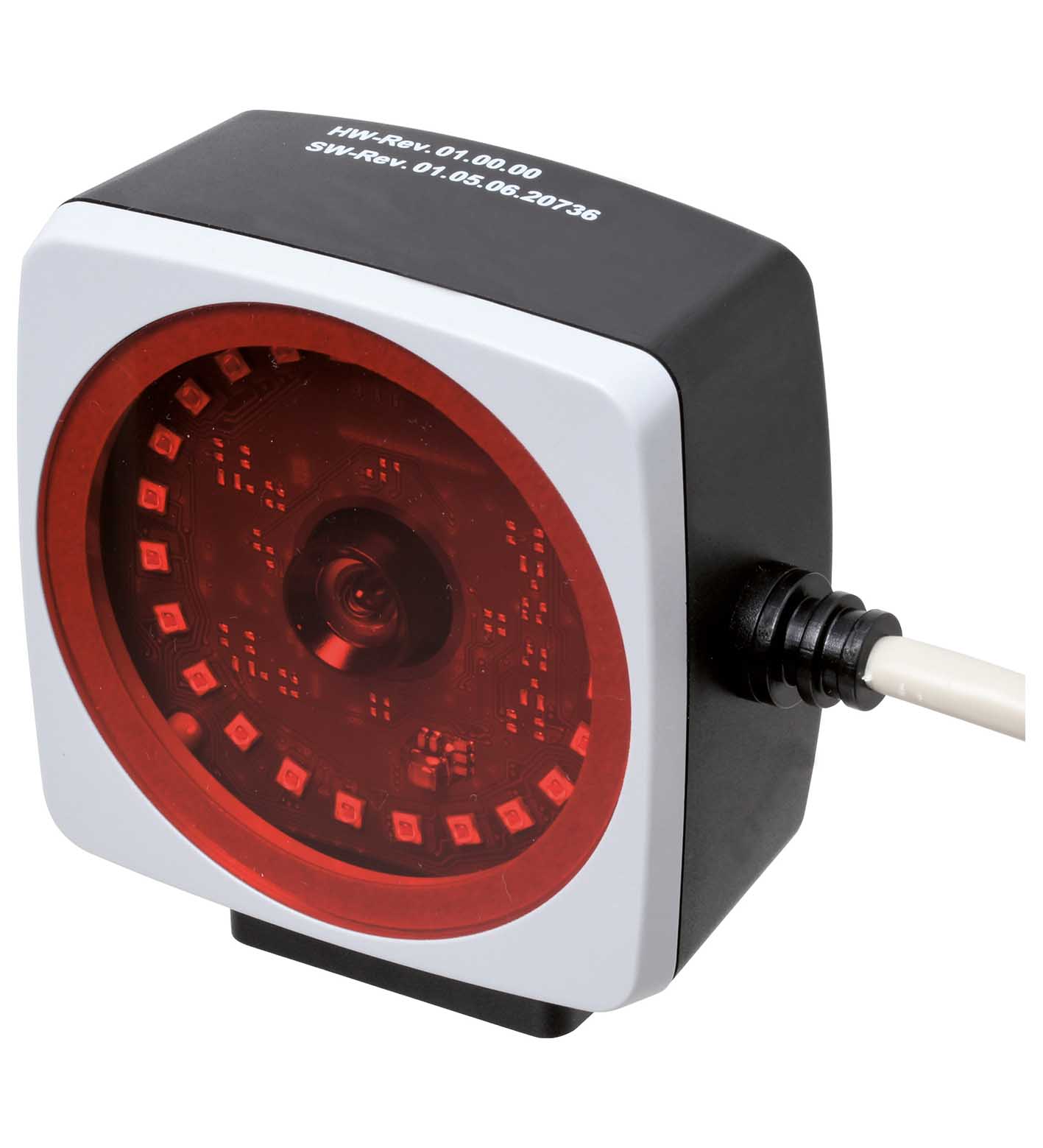

PGV40R-F213-B16-1.5M

Optical reading head. Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, CANopen interface, Non-contact positioning on Data...

Optical reading head. Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, CANopen interface, Non-contact positioning on Data Matrix code tape, Noncontact positioning with Data Matrix TAGs, Reading of Data Matrix control codes, Visible red light, Fixed cable, Terminating resistor, switchable, Timestamp of the image capture, Synchronization option. Passage speed: ≤ 8 m/s. Measuring length: max. 10000 m. Light type: Integrated LED lightning (red). Scan rate: 40 s-1. Latency: 50 ms. Read distance: 40 mm. Depth of focus: + 25 mm - 15 mm. Reading field: 70 mm x 45 mm. Resolution: 0.1 mm. Ambient light limit: 100000 Lux. Accuracy: ± 0.2 mm. Camera: . TypeCMOS , Global shutter: . Type: CMOS , Global shutter. Processor: . Clock pulse frequency600 MHzSpeed of computation4800 MIPSDigital resolution32 Bit: . Clock pulse frequency: 600 MHz. Speed of computation: 4800 MIPS. Digital resolution: 32 Bit. MTTFd: 144 a. MTBF: 72 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED indication: 2 LEDs. Operating voltage: 15 ... 30 V DC , PELV. No-load supply current: max. 200 mA. Power consumption: 3 W. Interface type: CANopen , Switchable terminal resistor. Data output code: binary code. Transfer rate: max. 1 MBit/s. Termination: Switchable terminal resistor. Dielectric strength: ± 16 V. Output type: 2 switch outputs, programmable , Push/pull , PNP , NPN. Switching voltage: Operating voltage. Switching current: 100 mA. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Photobiological safety: exempt group according to EN 62471:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005+AC:2005. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. CE conformity: CE. UKCA conformity: UKCA. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: 0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 90 % , noncondensing. Connection type: Open cable end. Degree of protection: IP54. Material: . HousingPC/ABSCablePVC: . Housing: PC/ABS. Cable: PVC. Cable: . Sheath diameter5.8 mmStrain relief60 NLengthL1.4 m: . Sheath diameter: 5.8 mm. Strain relief: 60 N. Length: 1.4 m. Mass: approx. 200 g. Dimensions: . Height70 mmWidth70 mmDepth35 mm: . Height: 70 mm. Width: 70 mm. Depth: 35 mm. X resolution (protocol): 0.1 mm. Y resolution (protocol): 0.1 mm. Angle resolution: 0.1 °. Baud rate: 500 kBit/s. Terminating resistor: On. Read head address: 8. Function input/output 2: Sync out , Push/pull. Function input/output 3: not connected

Brand	Pepperl Fuchs
Lifecycle status	active
