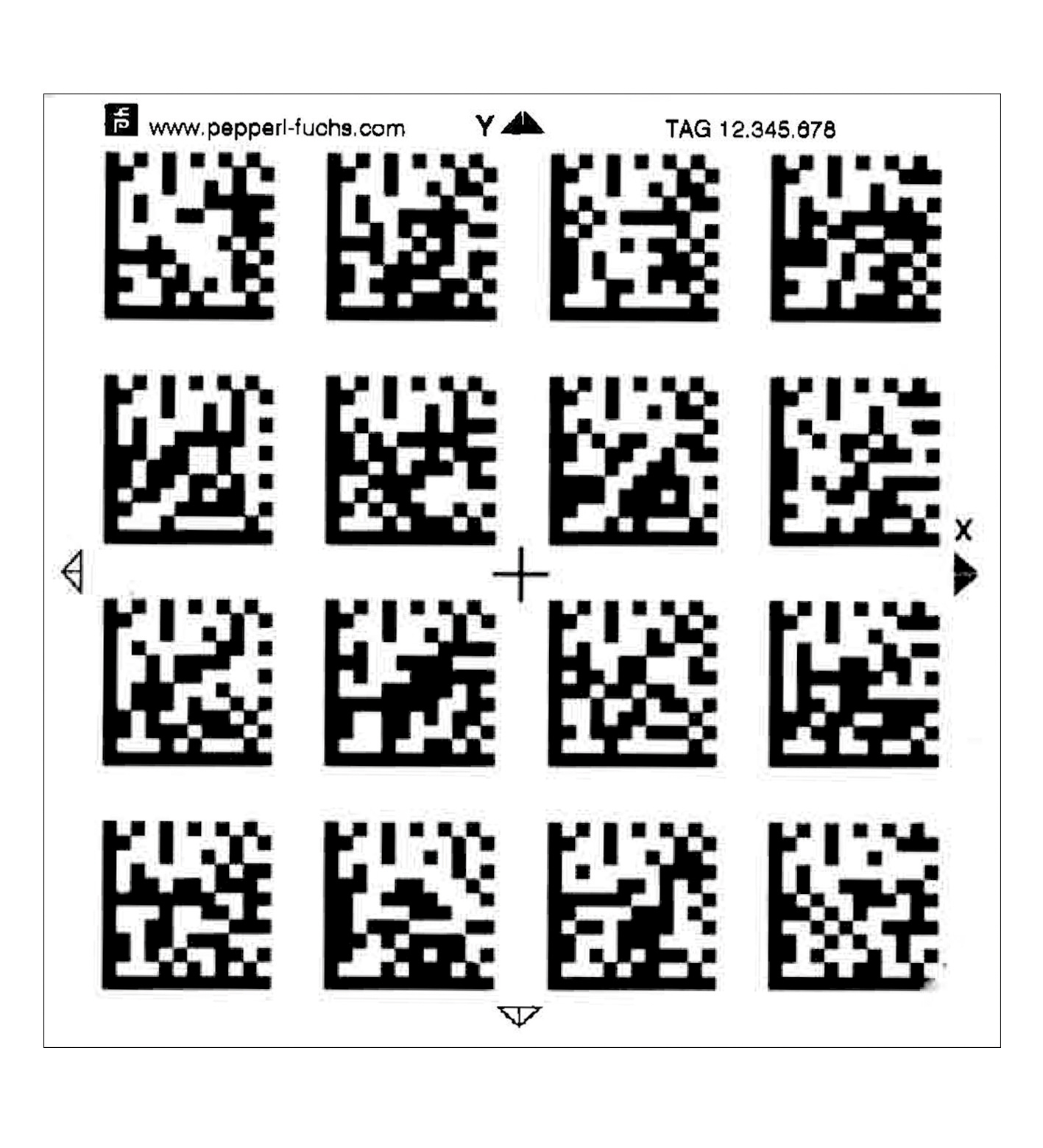

PGV85-CT4

Data Matrix tag. Data Matrix tag for PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance. Number interval: 1 ... 99999999 = TAG number (see Order Info...

Data Matrix tag. Data Matrix tag for PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance. Number interval: 1 ... 99999999 = TAG number (see Order Information). Length: 87 mm. Width: 87 mm. Operating temperature: -40 ... 100 °C (-40 ... 212 °F). Installation temperature: 10 ... 40 °C (50 ... 104 °F). Environmental resistance: UV radiation Humidity Salt spray (150 h / 5%). Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 100 µm. Material: polyester. Surface: polyester , glossy. Tensile strength: ≥ 50 N. Storage: Maximum 2 years under normal storage conditions.. Adhesive: Acrylate-based adhesive ; curing 72 h. Adhesive strength: Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm. Note: To improve readability and protect the Data Matrix tag from mechanical damage, the protective film PGV25M-CD160-CLEAR must be adhered over the Data Matrix tag.. Ordering information: The required tag numbers are entered in the additional text for the job in the form of the start and end position. The order quantity must match the specified range.

Brand	Pepperl Fuchs
Lifecycle status	active
