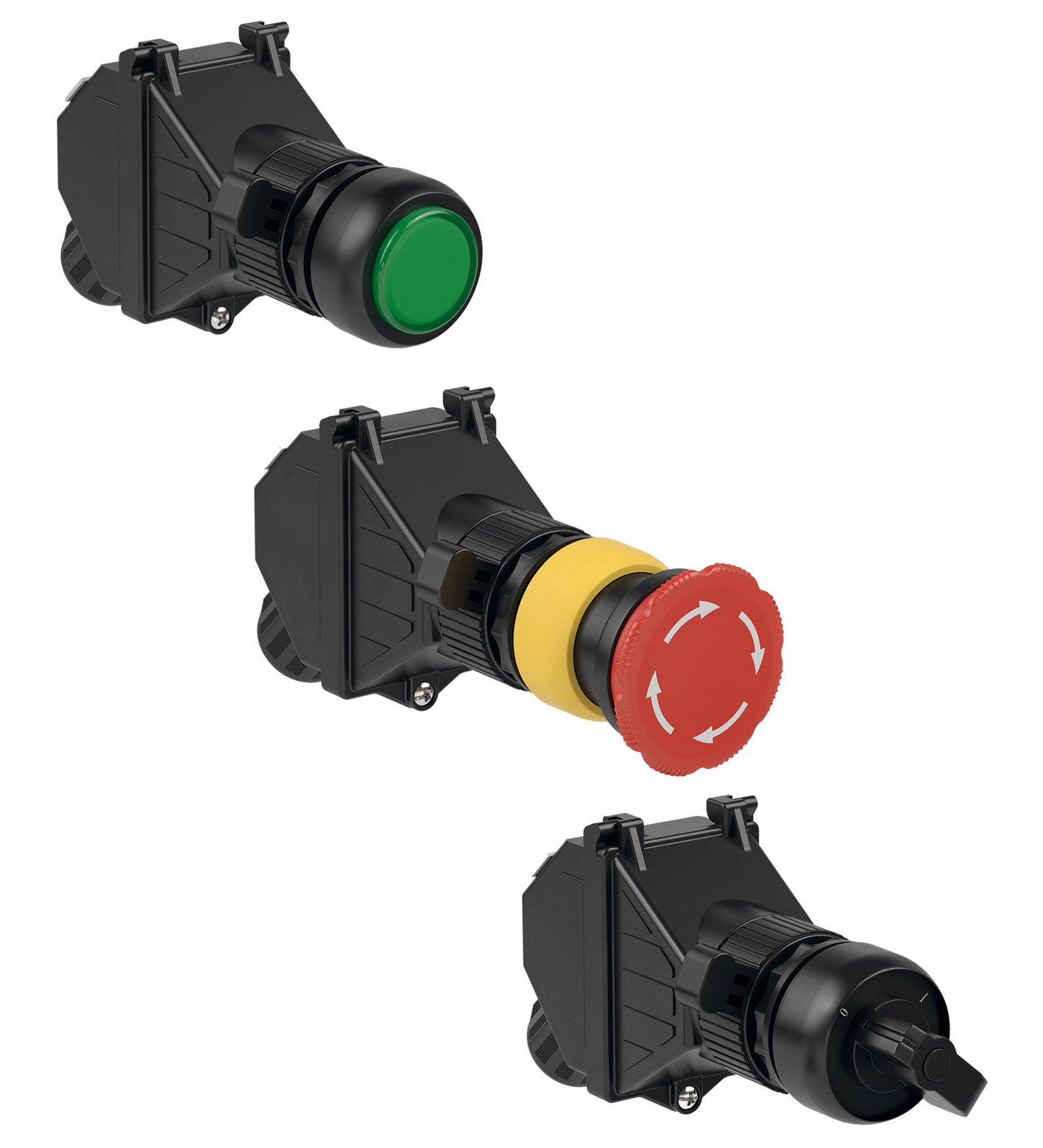

PM*.*.*

Control Units Ex e, Panel Mount. Customizable configuration of operators and contact modules as per specification, Ex de and Ex tb certified, Full equipment certified, Polyamide housing for panel moun...

Control Units Ex e, Panel Mount. Customizable configuration of operators and contact modules as per specification, Ex de and Ex tb certified, Full equipment certified, Polyamide housing for panel mount, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Cable Gland M20 integrated in protective cover, Degree of protection IP66, Function: see data table, Housing: Polyamide (PA), Marking: [exsign] II 2 GD <BR>Ex de IIC T6 Gb <BR>Ex tb IIIC T80 °C Db. Operating voltage: 250 V max.. Operating current: 16 A max.. Terminal capacity: 2x 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: see data table. Cable type: non-armored cables. Clamping range (D): 5.5 ... 13 mm. Covering: Protective cap fully detachable. Cover fixing: Phillips head screw. Degree of protection: IP66. Cable entry: . Number of cable entries1x M20 cable gland in protective cover: . Number of cable entries: 1x M20 cable gland in protective cover. Material: . HousingPolyamide (PA)Finishinherent color blackSealsiliconeWasher gasketsilicone: . Housing: Polyamide (PA). Finish: inherent color black. Seal: silicone. Washer gasket: silicone. Mass: max. 150 g. Dimensions: see data table. Tightening torque: . Nut torque at enclosure (SW1)2 Nm (SW1): . Nut torque at enclosure (SW1): 2 Nm (SW1). Mounting: via actuator head. Ambient temperature: -40 ... 50 °C (-40 ... 122 °F). EU-type examination certificate: CML 16 ATEX 3106X. Marking II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db: . Marking: II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db. IECEx approval: IECEx CML 16.0046X. UKCA approval: CML 21 UKEX 21275X. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Ordering information: For standard configured units please see pdf datasheet. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
