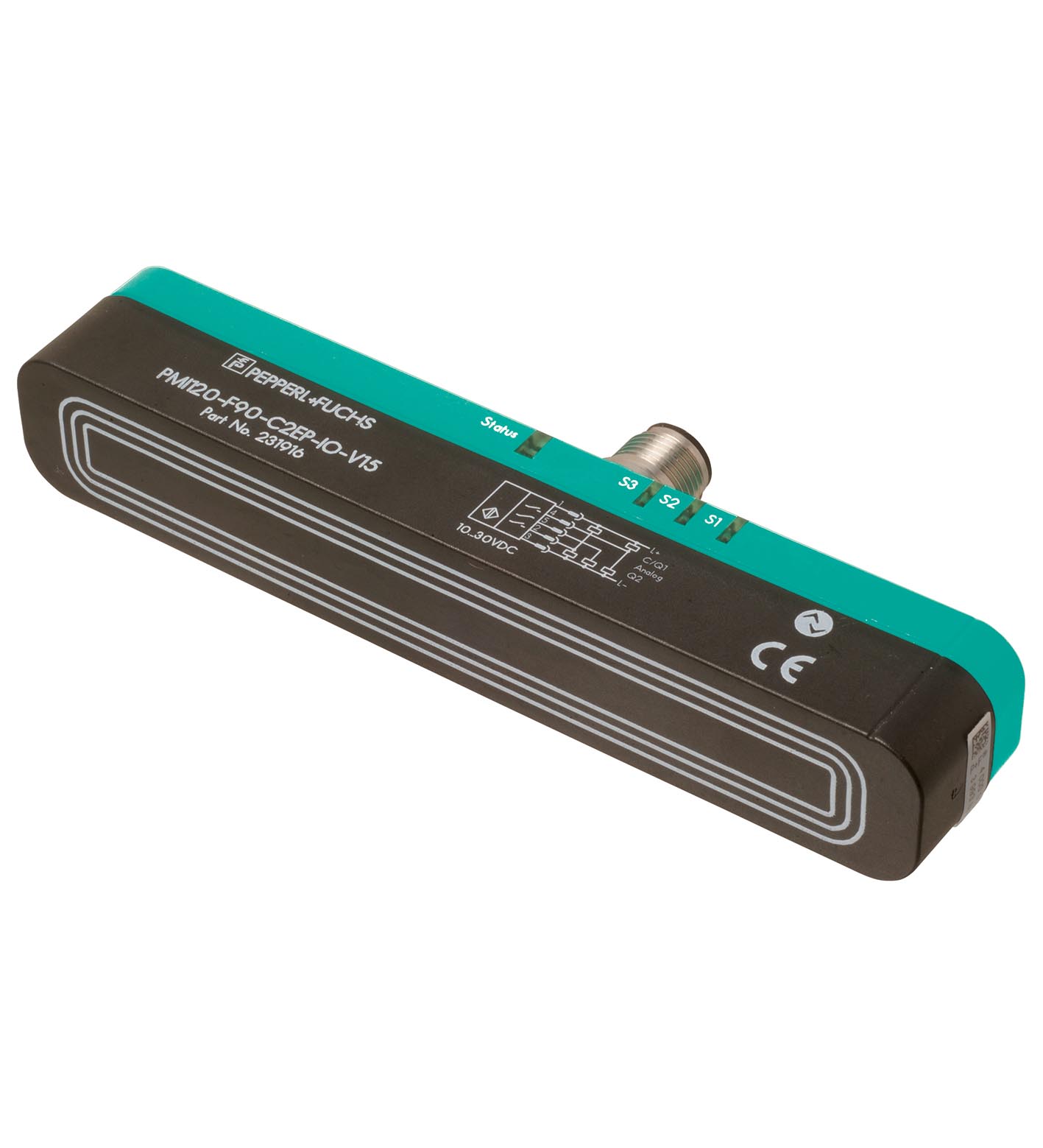

PMI120-F90-3EP-IO-V15

Inductive positioning system. Parameterization and diagnosis via IO-Link, Measuring range 0 ... 120 mm, Parameterizable measuring range, 3 Push-pull outputs, Switch points programmable via IO-Link, Sw...

Inductive positioning system. Parameterization and diagnosis via IO-Link, Measuring range 0 ... 120 mm, Parameterizable measuring range, 3 Push-pull outputs, Switch points programmable via IO-Link, Switching element function: 3 switch outputs, programmable, Output polarity: DC, Operating voltage: 12 ... 30 V DC, Type of voltage: DC, Interface type: IO-Link (via C/Q = Pin 4), Output type: 3 push-pull outputs (can be parameterized), short-circuit-proof, reverse polarity protection , <BR>overvoltage protected. Switching element function: 3 switch outputs, programmable. Object distance: 0.5 ... 3 mm , recommended: 1.5 mm. Measuring range: 0 ... 120 mm. Linearity range: 1 ... 119 mm. Operating voltage: 12 ... 30 V DC. Reverse polarity protection: reverse polarity protected. Linearity error: within measuring range: ± 0.8 mm within linearity range: ± 0.4 mm. Repeat accuracy: ± 0.1 mm. Resolution: 50 µm. Temperature drift: ± 0.5 mm (-25 °C ... 70 °C). No-load supply current: ≤ 40 mA. Operating voltage indicator: LED green. MTTFd: 271 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED S1: switching state Switching output 1. LED S2: switching state Switching output 2. LED S3: switching state, Switching output 3. LED STATUS: Status display LED, green/red (Power on, communication/error, missing damping element). Interface type: IO-Link (via C/Q = Pin 4). IO-Link revision: 1.1. Device profile: Smart Sensor. Device ID: 0x200402 (2098178). Transfer rate: COM2 (38.4 kBit/s). Value range: 0000h ... 9600h. Min. cycle time: 2.3 ms. Process data width: Process data input: 16 Bit Process data output: none. SIO mode support: yes. Compatible master port type: A. Output type: 3 push-pull outputs (can be parameterized), short-circuit-proof, reverse polarity protection , overvoltage protected. Operating current: ≤ 100 mA / Output. Switching window: ± 1 mm. Switching hysteresis: 0.2 mm. Voltage drop: ≤ 3 V. Short-circuit protection: pulsing. Standard conformity: . StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 IEC 61131-9:2013 EN 61131-9:2013: . Standards: EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 IEC 61131-9:2013 EN 61131-9:2013. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. Marine approval: DNVGL TAA00001V2. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: 5-pin, M12 x 1 connector. Degree of protection: IP67 / IP69K. Material: . HousingPBT, stainless steel 1.4571 , brass, nickel-platedTargetmild steel, e. g. 1.0037, SR235JR (formerly St37-2): . Housing: PBT, stainless steel 1.4571 , brass, nickel-plated. Target: mild steel, e. g. 1.0037, SR235JR (formerly St37-2). Mass: 113 g. Dimensions: . Height40 mmWidth23 mmLength135.2 mm: . Height: 40 mm. Width: 23 mm. Length: 135.2 mm

Brand	Pepperl Fuchs
Lifecycle status	active
