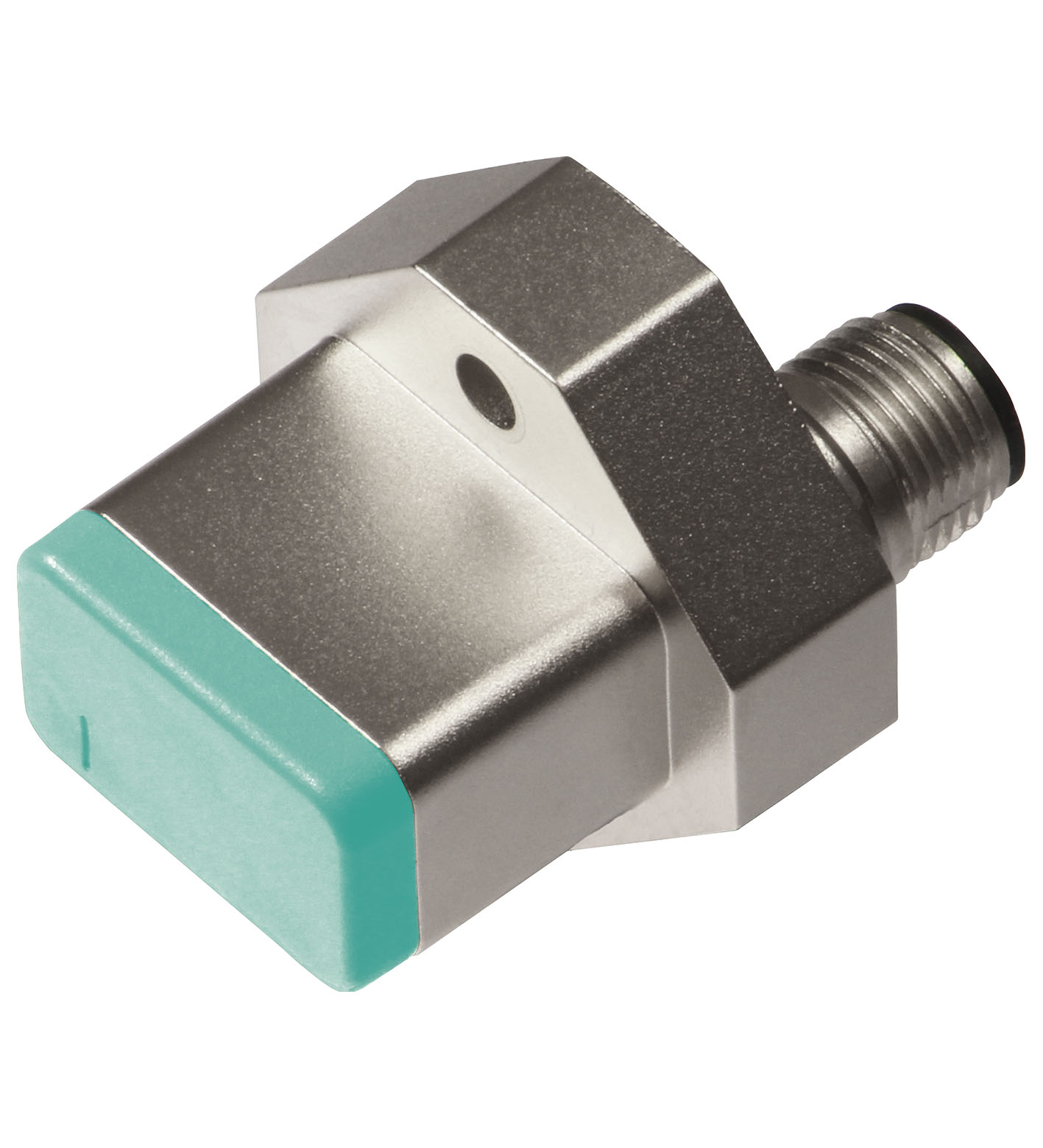

PMI14V-F112-2EPE2-IO-V15

Inductive positioning system. Parameterization and diagnosis via IO-Link, 3 configurable switching frames, Measuring range 0 ... 14 mm, Output polarity: DC, Type of voltage: DC, Interface type: IO-Lin...

Inductive positioning system. Parameterization and diagnosis via IO-Link, 3 configurable switching frames, Measuring range 0 ... 14 mm, Output polarity: DC, Type of voltage: DC, Interface type: IO-Link, Output type: 2 Push-pull (4 in 1) outputs , 1 switch output PNP , short-circuit protected , reverse polarity protected , overvoltage protected , programmable. Installation: flush. Object distance: max. 2.5 mm. Measuring range: 0 ... 14 mm. Operating voltage: 10 ... 30 V. Reverse polarity protection: reverse polarity protected. Linearity error: ± 0.3 mm. Repeat accuracy: ± 0.05 mm. Resolution: 33 µm. Temperature drift: ± 0.5 mm. No-load supply current: ≤ 20 mA. Operating voltage indicator: LED green. MTTFd: 490 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Interface type: IO-Link. Mode: COM2 (38.4 kBit/s). Value range: 0000h ... 7000h. Output type: 2 Push-pull (4 in 1) outputs , 1 switch output PNP , short-circuit protected , reverse polarity protected , overvoltage protected , programmable. Operating current: ≤ 100 mA / Output. Switching hysteresis: 3-step, adjustable 0.2 m ... 0.8 mm. Voltage drop: ≤ 3 V. Short-circuit protection: pulsing. Standard conformity: . StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 IEC 61131-9:2013: . Standards: EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 IEC 61131-9:2013. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: 5-pin, M12 x 1 connector. Housing material: diecast zinc, not laquered or coated. Degree of protection: IP67. Material: . Targetmild steel, e. g. 1.0037, SR235JR (formerly St37-2): . Target: mild steel, e. g. 1.0037, SR235JR (formerly St37-2). Dimensions: . Height30.5 mmWidth35 mmLength35 mm: . Height: 30.5 mm. Width: 35 mm. Length: 35 mm. Note: The data relating to accuracy only apply to a distance to the object to be detected of 1 ... 2.5 mm.

Brand	Pepperl Fuchs
Lifecycle status	active
