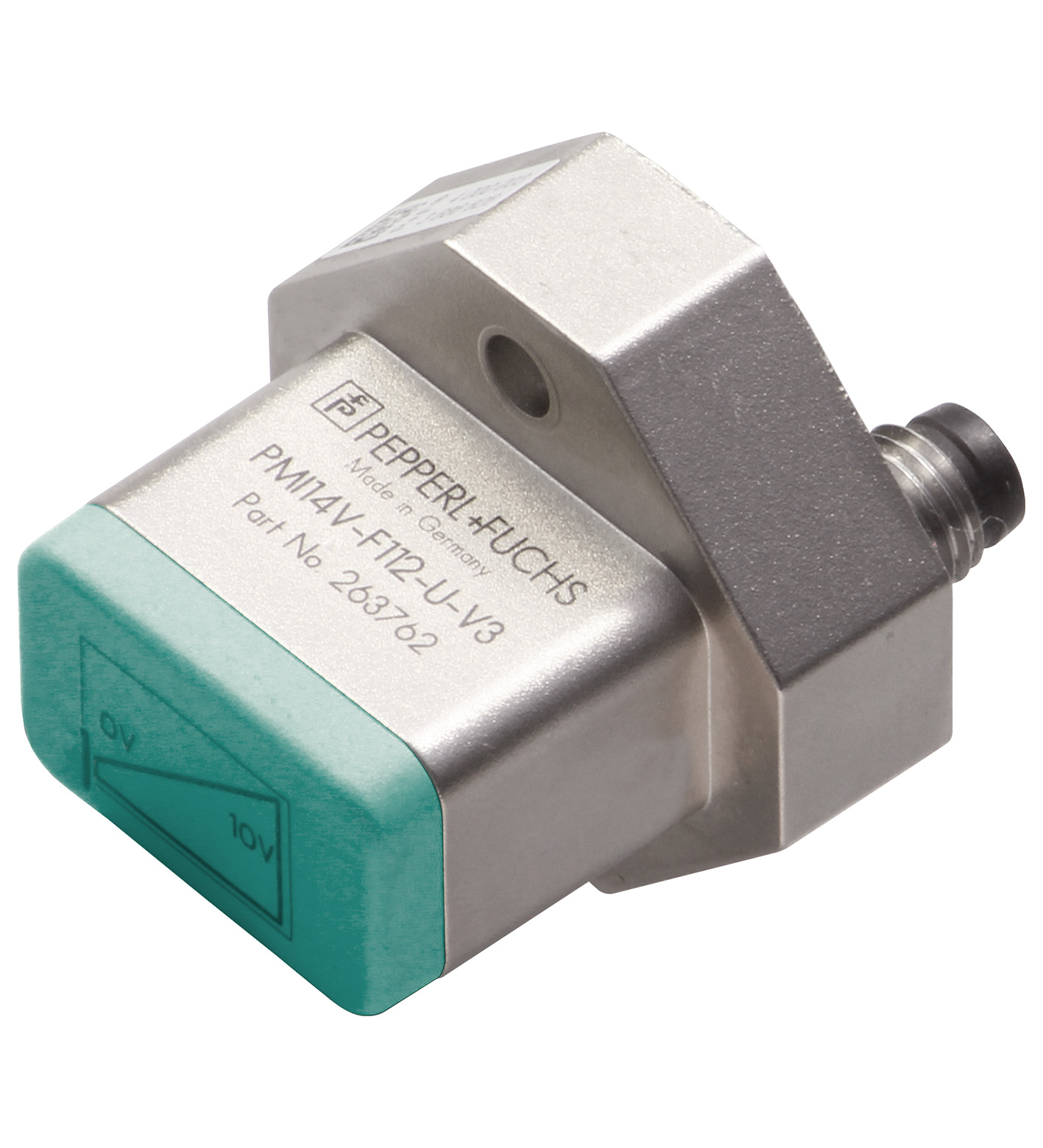

PMI14V-F112-U-V3

Inductive positioning system. Analog output 0 ... 10 V, Scalable measuring range, programmable via key, Measuring range 0 ... 14 mm, Switching element function: Analog voltage output, Output polarity:...

Inductive positioning system. Analog output 0 ... 10 V, Scalable measuring range, programmable via key, Measuring range 0 ... 14 mm, Switching element function: Analog voltage output, Output polarity: DC, Operating voltage: 18 ... 30 V DC, Type of voltage: DC, Output type: 1 voltage output: 0 ... 10 V, UL approval: cULus Listed <BR>Load Type: General Purpose <BR>Circuitry: Class 2 Power Source <BR>Enclosure Type Rating: Type 1 <BR>Supply/Switching Voltage: 30 V DC. Switching element function: Analog voltage output. Installation: flush. Object distance: max. 2.5 mm. Measuring range: 0 ... 14 mm. Operating voltage: 18 ... 30 V DC. Reverse polarity protection: reverse polarity protected. Linearity error: ± 0.3 mm. Repeat accuracy: ± 0.05 mm. Resolution: 33 µm. Temperature drift: ± 0.4 mm. No-load supply current: ≤ 20 mA. Operating voltage indicator: LED. MTTFd: 490 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Output type: 1 voltage output: 0 ... 10 V. Load resistor: ≥ 2000 Ω. Short-circuit protection: limited to 6 mA. Standard conformity: . StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012: . Standards: EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: M8 x 1 connector, 3-pin. Housing material: diecast zinc, not laquered or coated. Degree of protection: IP67. Material: . Targetmild steel, e. g. 1.0037, SR235JR (formerly St37-2): . Target: mild steel, e. g. 1.0037, SR235JR (formerly St37-2). Dimensions: . Height30 mmWidth35 mmLength35 mm: . Height: 30 mm. Width: 35 mm. Length: 35 mm. Note: The data relating to accuracy only apply to a distance to the object to be detected of 1 ... 2.5 mm.

Brand	Pepperl Fuchs
Lifecycle status	active
