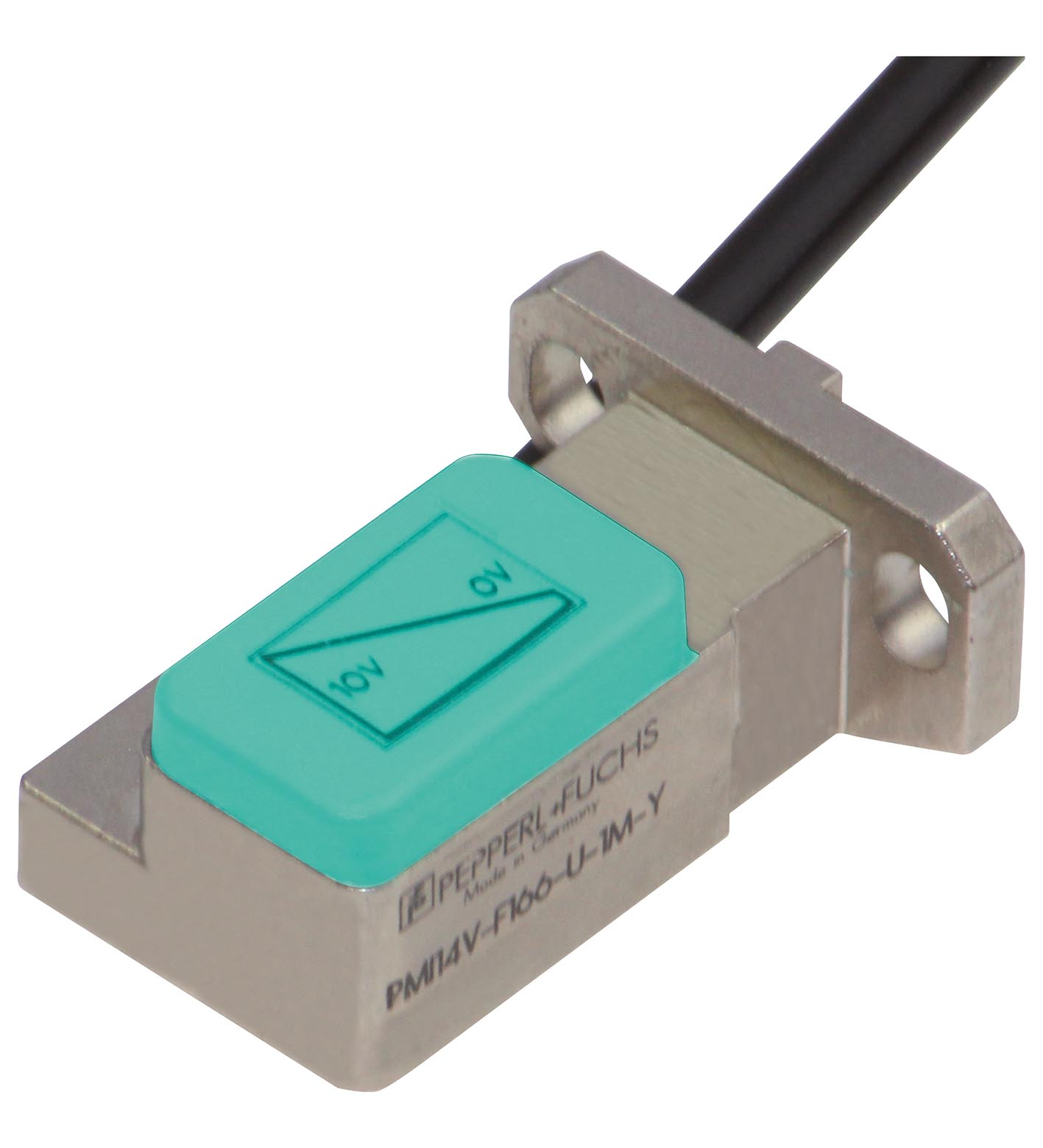

PMI14V-F166-U-1M-V15

Inductive positioning system. Analog output 0 ... 10 V, Measuring range 0 ... 14 mm, Scalable measuring range programmable via cable, Switching element function: Analog voltage output, Output polarity...

Inductive positioning system. Analog output 0 ... 10 V, Measuring range 0 ... 14 mm, Scalable measuring range programmable via cable, Switching element function: Analog voltage output, Output polarity: DC, Operating voltage: 18 ... 30 V DC, Type of voltage: DC, Output type: 1 voltage output: 0 ... 10 V, Connection type: fixed cable with plug, Degree of protection: IP65, Housing: Zinc diecast, nickel-plated <BR>cover , PBT, Threading: M12 x 1. Switching element function: Analog voltage output. Object distance: 0.5 ... 2 mm. Measuring range: 0 ... 14 mm. Operating voltage: 18 ... 30 V DC. Reverse polarity protection: reverse polarity protected. Linearity error: ± 0.3 mm. Repeat accuracy: ± 0.05 mm. Resolution: 33 µm. Temperature drift: ± 0.3 mm (With a target distance of 0.5 mm). No-load supply current: ≤ 20 mA. MTTFd: 830 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Output type: 1 voltage output: 0 ... 10 V. Load resistor: ≥ 1000 Ω. Short-circuit protection: current limit. Standard conformity: . StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003: . Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003. Ambient temperature: -10 ... 70 °C (14 ... 158 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP65. Material: . HousingZinc diecast, nickel-plated cover , PBTTargetmild steel, e. g. 1.0037, SR235JR (formerly St37-2): . Housing: Zinc diecast, nickel-plated cover , PBT. Target: mild steel, e. g. 1.0037, SR235JR (formerly St37-2). Connector: . ThreadingM12 x 1Tightening torque0.6 NmNumber of pins5: . Threading: M12 x 1. Tightening torque: 0.6 Nm. Number of pins: 5. Cable: . Cable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPUR , screenedColorblackNumber of cores5Core cross section0.14 mm2LengthL1 m: . Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR , screened. Color: black. Number of cores: 5. Core cross section: 0.14 mm2. Length: 1 m. Mass: 76 g. Dimensions: . Height17.7 mmWidth30 mmLength39 mm: . Height: 17.7 mm. Width: 30 mm. Length: 39 mm

Brand	Pepperl Fuchs
Lifecycle status	active
