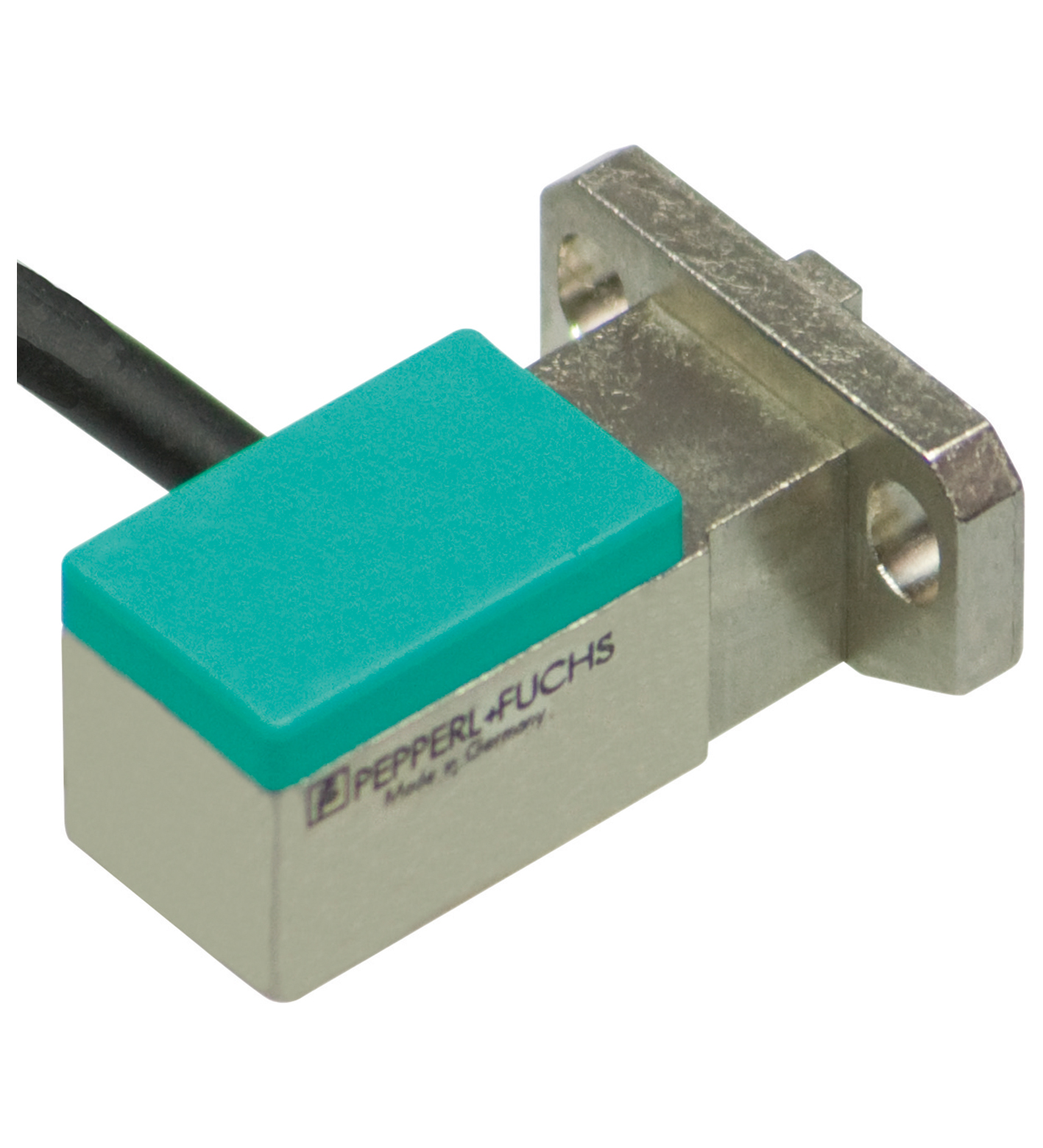

PMI14V-F166-U-1M-Y215627

Inductive positioning system. Analog output 0 ... 10 V, Measuring range 0 ... 14 mm, Scalable measuring range programmable via cable, Switching element function: Analog voltage output, Output polarity...

Inductive positioning system. Analog output 0 ... 10 V, Measuring range 0 ... 14 mm, Scalable measuring range programmable via cable, Switching element function: Analog voltage output, Output polarity: DC, Type of voltage: DC, Output type: 1 voltage output: 0 ... 10 V, UL approval: cULus Listed <BR>Circuitry: Class 2 Power Source <BR>Enclosure Type Rating: Type 1 <BR>Supply/Switching Voltage: 30 V DC, Connection type: 1 m, PUR cable, Housing: Zinc diecast, nickel-plated <BR>cover , PBT. Switching element function: Analog voltage output. Object distance: 0.5 ... 2 mm. Measuring range: 0 ... 14 mm. Operating voltage: 18 ... 30 V. Reverse polarity protection: reverse polarity protected. Linearity error: ± 0.3 mm. Repeat accuracy: ± 0.05 mm. Resolution: 33 µm. Temperature drift: ± 0.4 mm. No-load supply current: ≤ 20 mA. Output type: 1 voltage output: 0 ... 10 V. Load resistor: ≥ 1000 Ω. Short-circuit protection: pulsing. Standard conformity: . StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. Ambient temperature: -10 ... 70 °C (14 ... 158 °F). Connection type: 1 m, PUR cable. Core cross section: 5 x 0.25 mm2. Material: . HousingZinc diecast, nickel-plated cover , PBTTargetmild steel, e. g. 1.0037, SR235JR (formerly St37-2): . Housing: Zinc diecast, nickel-plated cover , PBT. Target: mild steel, e. g. 1.0037, SR235JR (formerly St37-2). Mass: 65 g. Dimensions: . Height17 mmWidth30 mmLength40 mm: . Height: 17 mm. Width: 30 mm. Length: 40 mm

Brand	Pepperl Fuchs
Lifecycle status	active
