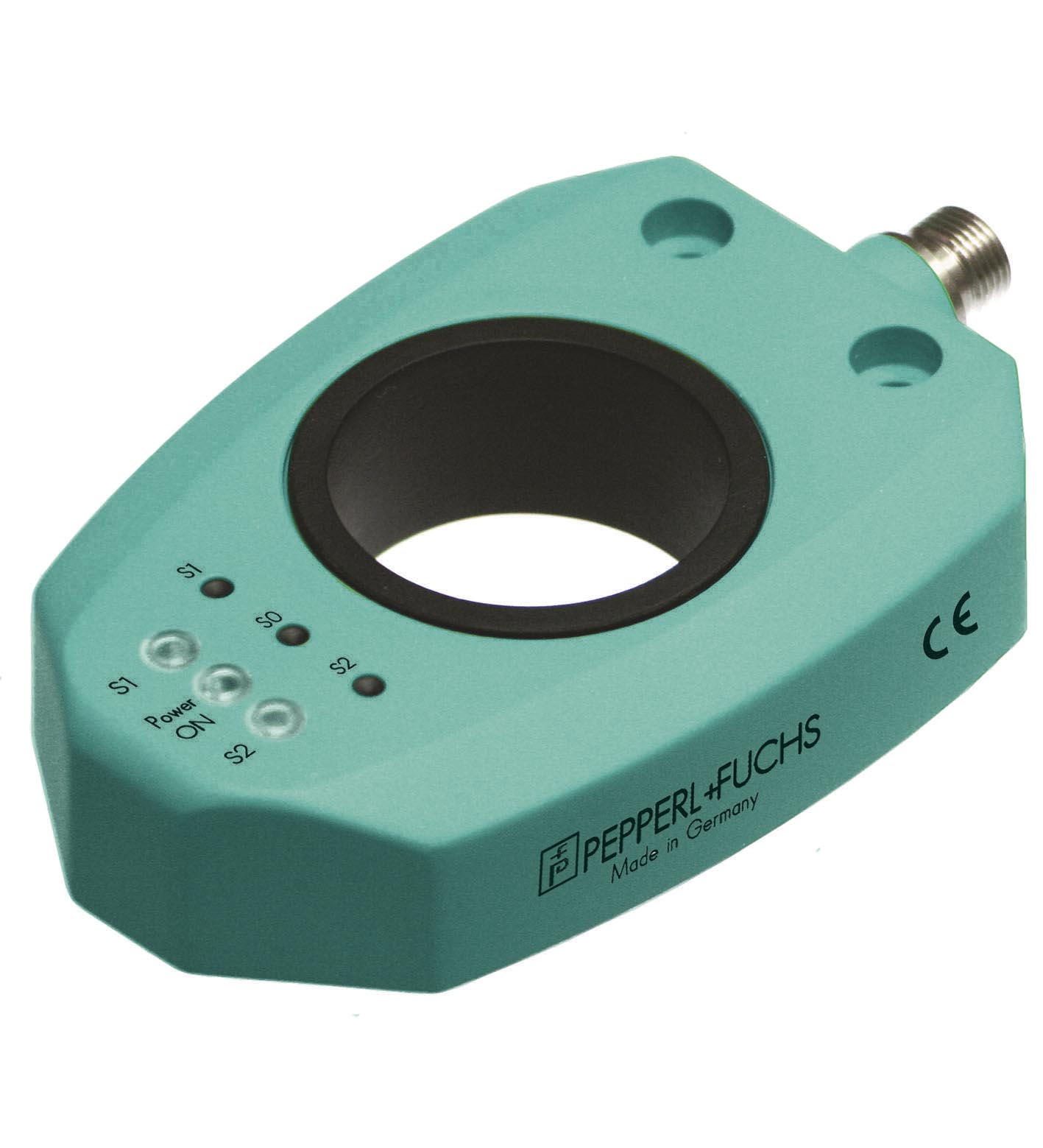

PMI360D-F130-IE8-V15

Ind. angular measuring system. Measuring range 0 ... 360°, Analog output 4 mA ... 20 mA, Adjustable switch points, Output polarity: DC, Measuring range: 360°, Type of voltage: DC, Output type: 2 switc...

Ind. angular measuring system. Measuring range 0 ... 360°, Analog output 4 mA ... 20 mA, Adjustable switch points, Output polarity: DC, Measuring range: 360°, Type of voltage: DC, Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected, Output type: 1 current output: 4 ... 20 mA, UL approval: cULus Listed <BR>Load Type: General Purpose <BR>Circuitry: Class 2 Power Source <BR>Enclosure Type Rating: Type 1 <BR>Supply/Switching Voltage: 30 V DC <BR>Output Switching Current: 100 mA. Installation: non-flush. Measuring range: 360°. Rotational speed: max. 100 min-1. Operating voltage: 18 ... 30 V. Reverse polarity protection: reverse polarity protected. Repeat accuracy: ± 0.25 °. Resolution: 0.4°. Temperature drift: 0.02 ° / °C (-25 °C ... 70 °C). No-load supply current: ≤ 45 mA. Operating voltage indicator: LED green. MTTFd: 265 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected. Operating current: ≤ 100 mA. Voltage drop: ≤ 3 V. Short-circuit protection: pulsing. Output type: 1 current output: 4 ... 20 mA. Linearity error: ± 0.6 ° , (with original actuator). Load resistor: ≤ 400 Ω. Standard conformity: . StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: 5-pin, M12 x 1 connector. Housing material: PBT. Shaft diameter: max. 27.5 mm Steel. Degree of protection: IP67. Mass: 180 g. Dimensions: . Height22 mmWidth76.5 mmLength120 mm: . Height: 22 mm. Width: 76.5 mm. Length: 120 mm

Brand	Pepperl Fuchs
Lifecycle status	active
