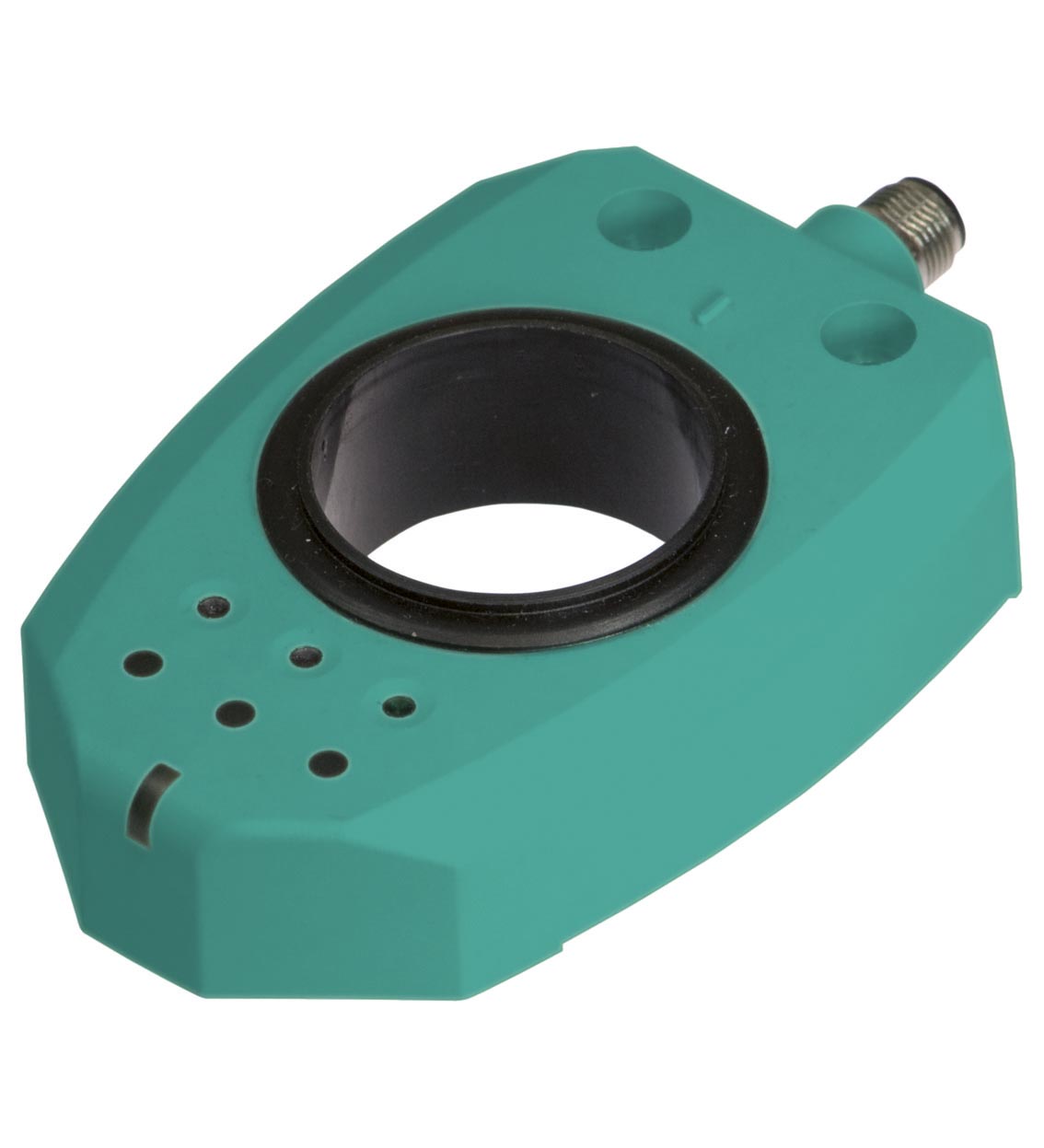

PMI360DV-F130-3E2-V15
Ind. angular measuring system. 3 configurable switching frames, Measuring range: max. 360° <BR>min. 5°, Operating voltage: 18 ... 30 V DC, Output type: 3 switch outputs PNP, NO , reverse polarity prot...
Ind. angular measuring system. 3 configurable switching frames, Measuring range: max. 360° <BR>min. 5°, Operating voltage: 18 ... 30 V DC, Output type: 3 switch outputs PNP, NO , reverse polarity protected , short-circuit protected , programmable, UL approval: cULus Listed <BR>Load Type: Resistive <BR>Circuitry: Class 2 Power Source <BR>Enclosure Type Rating: Type 1 <BR>Supply/Switching Voltage: 30 V DC <BR>Output Switching Current: 3 x 100 mA, CCC approval: CCC approval / marking not required for products rated ≤36 V. Measuring range: max. 360° min. 5°. Adjustment range: 3 switch frames programmable , min. 5°, max. 360°. Rotational speed: max. 100 min-1. Operating voltage: 18 ... 30 V DC. Reverse polarity protection: reverse polarity protected. Repeat accuracy: ± 0.25 °. Resolution: 0.2 °. Temperature drift: 0.02 ° / °C (-25 °C ... 70 °C). No-load supply current: ≤ 45 mA. Time delay before availability: 1 s. MTTFd: 450 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED yellow 1: switching state, Switching output 1. LED yellow 2: switching state, Switching output 2. LED yellow 3: switching state, Switching output 3. LED PWR/ERR: Status display LED, green/red (Power on / missing actuator / keylock). Output type: 3 switch outputs PNP, NO , reverse polarity protected , short-circuit protected , programmable. Operating current: ≤ 100 mA. Switching hysteresis: 1 °. Voltage drop: ≤ 3 V. Short-circuit protection: pulsing. Standard conformity: . StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012: . Standards: EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 3 x 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: 5-pin, M12 x 1 connector. Degree of protection: IP67. Material: . HousingPBTTargetmild steel, e. g. 1.0037, SR235JR (formerly St37-2): . Housing: PBT. Target: mild steel, e. g. 1.0037, SR235JR (formerly St37-2). Mass: 180 g. Dimensions: . Height26.5 mmWidth76.5 mmLength120 mm: . Height: 26.5 mm. Width: 76.5 mm. Length: 120 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
