Pepperl Fuchs

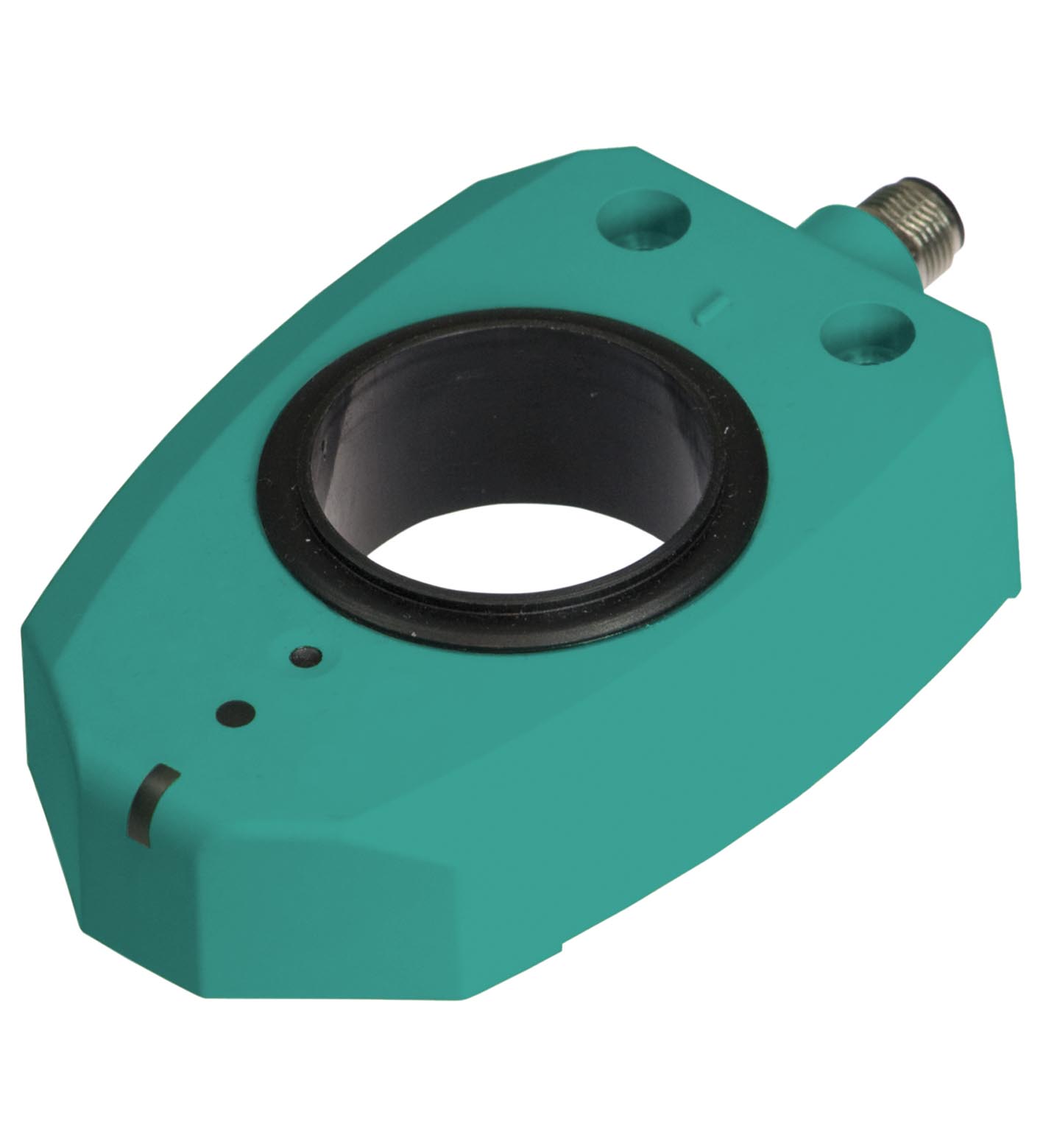

PMI360DV-F130-IU-V15

Ind. angular measuring system. Analog output, load-dependent voltage or current, Parameterizable measuring range, Measuring range: max. 360° min. 45°, Operating voltage: 18 ... 30 V DC, Output type: current output or voltage output (load dependend) 4 ... 20 mA (RL < 400 Ω) 0 ... 10 V (RL > 3.3 kΩ), UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. Measuring range: max. 360° min. 45°. Adjustment range: 360°. Rotational speed: max. 100 min-1. Operating voltage: 18 ... 30 V DC. Reverse polarity protection: reverse polarity protected. Repeat accuracy: ± 0.25 °. Resolution: 0.2 °. Temperature drift: 0.02 ° / °C (-25 °C ... 70 °C). No-load supply current: ≤ 45 mA. MTTFd: 450 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED PWR/ERR: LED green / red. LED U/I: Activator within measuring range. Output type: current output or voltage output (load dependend) 4 ... 20 mA (RL < 400 Ω) 0 ... 10 V (RL > 3.3 kΩ). Linearity error: ± 0.6 ° , (with original actuator). Standard conformity: . StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: 5-pin, M12 x 1 connector. Degree of protection: IP67. Material: . HousingPBTTargetmild steel, e. g. 1.0037, SR235JR (formerly St37-2): . Housing: PBT. Target: mild steel, e. g. 1.0037, SR235JR (formerly St37-2). Mass: 180 g. Dimensions: . Height26 mmWidth76.5 mmLength120 mm: . Height: 26 mm. Width: 76.5 mm. Length: 120 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
