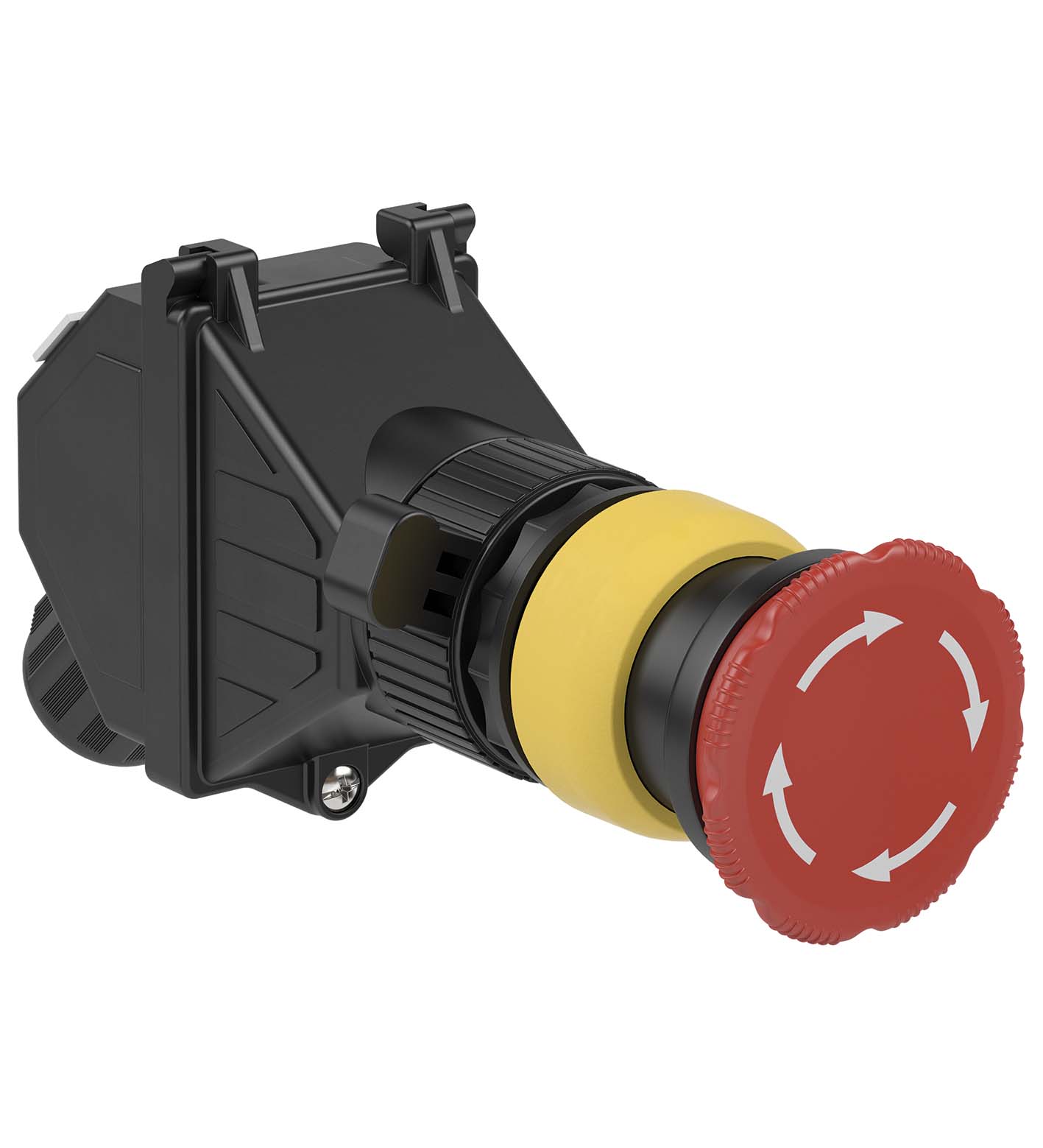

PMP.E4.C.02
Control Unit Ex e, Panel Mount, Emergency Stop Button. Emergency stop mushroom button 40 mm, red, twist-to-release - 2x NC, Ex de and Ex tb certified, Full equipment certified, Polyamide housing for p...
Control Unit Ex e, Panel Mount, Emergency Stop Button. Emergency stop mushroom button 40 mm, red, twist-to-release - 2x NC, Ex de and Ex tb certified, Full equipment certified, Polyamide housing for panel mount, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Cable Gland M20 integrated in protective cover, Degree of protection IP66, Function: mushroom button 40 mm, Housing: Polyamide (PA), Marking: [exsign] II 2 GD <BR>Ex de IIC T6 Gb <BR>Ex tb IIIC T80 °C Db. Operating voltage: 250 V max.. Operating current: 16 A max.. Terminal capacity: 2x 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: mushroom button 40 mm. ColorredContact configuration2x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12 - 12 ... 250 V AC - 16 AAC15 - 12 ... 250 V AC - 10 ADC13 - 12 ... 110 V DC - 1 ADC13 - 12 ... 24 V DC - 1ANumber of poles2Operator actionlatching , twist to release: . Color: red. Contact configuration: 2x NC all NC contacts have a direct opening action for emergency stop functions. Usage category: AC12 - 12 ... 250 V AC - 16 AAC15 - 12 ... 250 V AC - 10 ADC13 - 12 ... 110 V DC - 1 ADC13 - 12 ... 24 V DC - 1A. Number of poles: 2. Operator action: latching , twist to release. Cable type: non-armored cables. Clamping range (D): 5.5 ... 13 mm (D). Covering: Protective cap fully detachable. Cover fixing: Phillips head screw. Degree of protection: IP66. Cable entry: . Number of cable entries1x M20 cable gland in protective cover: . Number of cable entries: 1x M20 cable gland in protective cover. Material: . HousingPolyamide (PA)Finishinherent color blackSealsiliconeWasher gasketsilicone: . Housing: Polyamide (PA). Finish: inherent color black. Seal: silicone. Washer gasket: silicone. Mass: 150 g max.. Dimensions: . Height (A)77 mm (A)Width (B)44 mm (B)Depth (C)105 mm (C)Actuator head diameter (D2)40 mm (D2)Panel wall thickness (PT)1 ... 6 mm (PT)Diameter thru-hole (DT)30.6 mm (DT)Length outside enclosure (H)41.8 mm (H)Width across flats (SW1)24 mm (SW1)Total length (L)153.7 mm (L): . Height (A): 77 mm (A). Width (B): 44 mm (B). Depth (C): 105 mm (C). Actuator head diameter (D2): 40 mm (D2). Panel wall thickness (PT): 1 ... 6 mm (PT). Diameter thru-hole (DT): 30.6 mm (DT). Length outside enclosure (H): 41.8 mm (H). Width across flats (SW1): 24 mm (SW1). Total length (L): 153.7 mm (L). Tightening torque: . Nut torque at enclosure (SW1)2 Nm (SW1): . Nut torque at enclosure (SW1): 2 Nm (SW1). Mounting: via actuator head. Ambient temperature: -40 ... 50 °C (-40 ... 122 °F). EU-type examination certificate: CML 16 ATEX 3106X. Marking II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db: . Marking: II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db. IECEx approval: IECEx CML 16.0046X. UKCA approval: CML 21 UKEX 21275X. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
