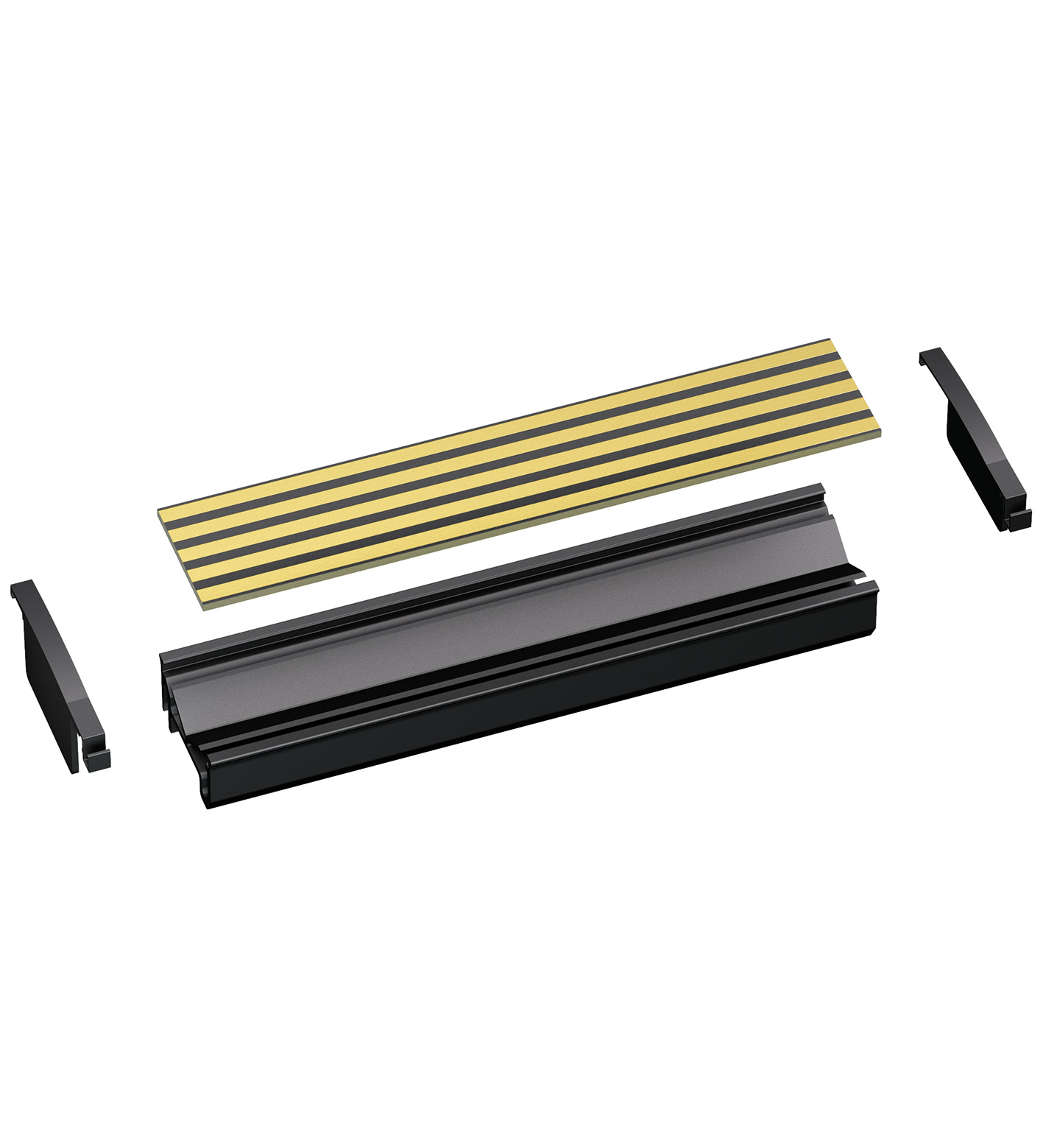

POWERBUS-SETH5.250

Power Bus for DIN Mouning Rail. Bus carrier with bus PCB for 35 mm DIN mounting rail, height 15 mm, Provides DC supply voltage and the bus connection to all equipped SC-System modules, Standard length...

Power Bus for DIN Mouning Rail. Bus carrier with bus PCB for 35 mm DIN mounting rail, height 15 mm, Provides DC supply voltage and the bus connection to all equipped SC-System modules, Standard length 250 mm (9.84 inch), simple to customize to application space, Eliminates daisy-chains. Rated voltage: 24 V DC. Rated current: 3 A. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection: 5 conductors. Supply2 ConductorsFault output1 Conductors: . Supply: 2 Conductors. Fault output: 1 Conductors. Dimensions: 13 x 25 x 250 mm (0.51 x 1.57 x 9.84 inch). Height13 mmWidth25 mmLength250 mm: . Height: 13 mm. Width: 25 mm. Length: 250 mm. Mounting: in 35 mm DIN mounting rail acc. to EN 60715:2001 Height: 15 mm. Scope of delivery: - power bus POWERBUS-SETH5.250 - end cap POWERBUS-CAP. Optional accessories: - cover POWERBUS-COV.250- end cap POWERBUS-CAP- 35 mm DIN mounting rail acc. to EN 60715

Brand	Pepperl Fuchs
Lifecycle status	active
