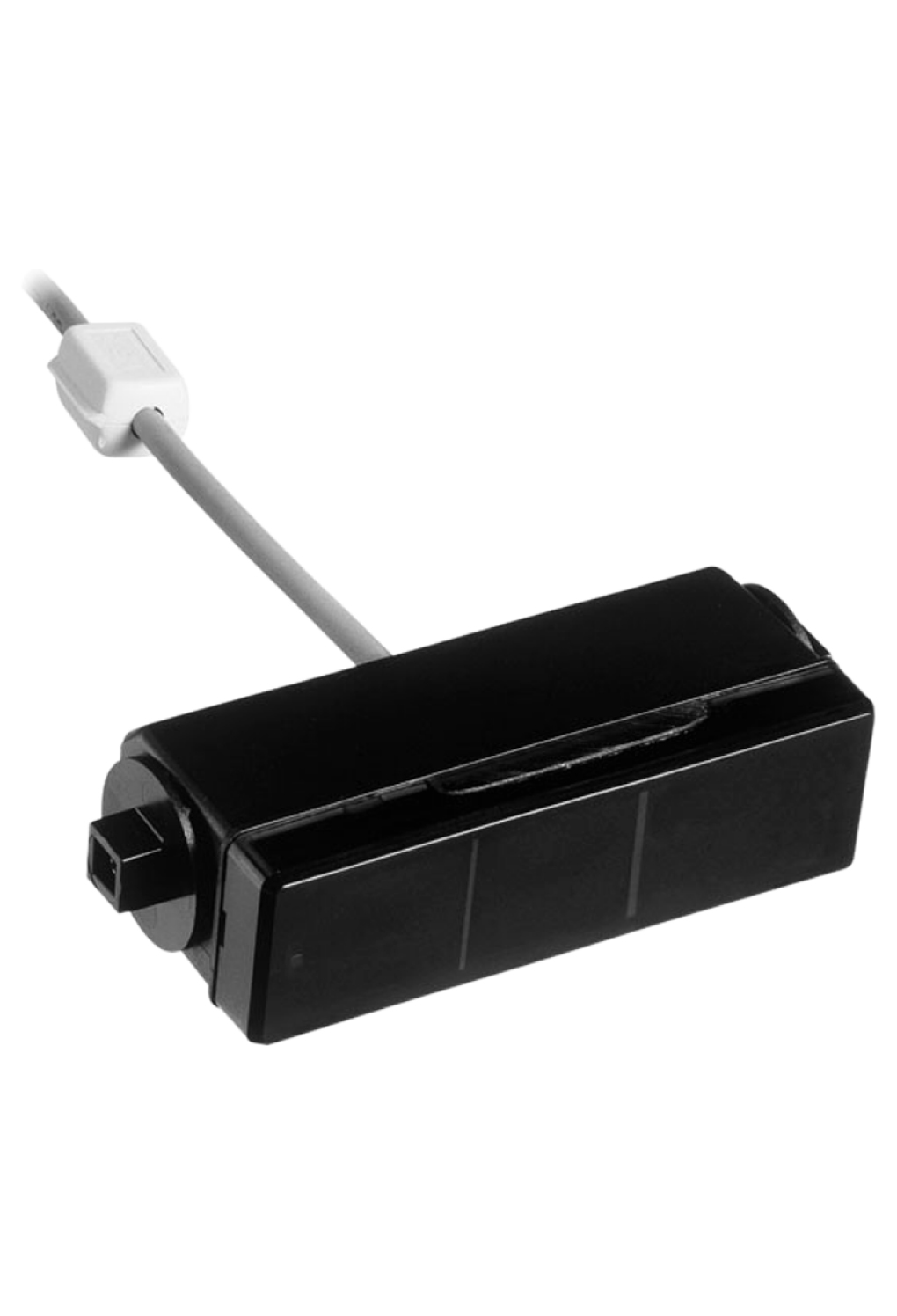

PROSCAN-T/32/76a
Active infrared scanner. Version with E1 approval, Fan-shaped detection field with up to 12 beams, Adjustable detection fields for different door widths, Automatic drift compensation, Version with tes...
Active infrared scanner. Version with E1 approval, Fan-shaped detection field with up to 12 beams, Adjustable detection fields for different door widths, Automatic drift compensation, Version with test input, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 12 ... 38 V DC, Signal output: 1 PNP, short-circuit protected, reverse polarity protected, open collector, Connection: Fixed cable 3 m, halogen-free, with ferrite core. Detection field: total field: 2300 mm x 80 mmleft/right field: 1150 mm x 80 mmcenter field: 1000 mm x 80 mm || (installation height: 2 m). Light source: 12 x IRED. Light type: modulated infrared light. Teach-in time: approx. 4 s. Open time: 3 s / 10 s, programmable. MTTFd: 630 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Function indicator: LED red: on for object detection, flashes during teaching phase. Control elements: Programmble switch for switching type, open time, detection field. Factory setting: total detection field 12 beams. Operating voltage: 12 ... 38 V DC. Ripple: 10 %. No-load supply current: 100 mA. Test input: emitter deactivation with +Ub. Switching type: Output active / inactive programmable. Signal output: 1 PNP, short-circuit protected, reverse polarity protected, open collector. Switching voltage: 38 V DC. Switching current: 200 mA. Response time: < 50 ms. De-energized delay: 200 ms. Standard conformity: . Product standardEN 60947-5-2StandardsEN 50155 Chapter 12.2.3 / 12.2.5 / 12.2.7 / 12.2.8 / 12.2.11 / 12.2.14 Details see test reportFlammabilityFlame retardant in accordance with UN/ECE-R118 or ISO 14572: . Product standard: EN 60947-5-2. Standards: EN 50155 Chapter 12.2.3 / 12.2.5 / 12.2.7 / 12.2.8 / 12.2.11 / 12.2.14 Details see test report. Flammability: Flame retardant in accordance with UN/ECE-R118 or ISO 14572. UN/ECE Regulation No. 10 (E1): Type-approval number: 046982. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Mounting height: 1000 ... 2500 mm. Degree of protection: IP52. Connection: Fixed cable 3 m, halogen-free, with ferrite core. Material: . HousingPC/ABSOptical facePMMA: . Housing: PC/ABS. Optical face: PMMA. Mass: approx. 100 g. Dimensions: . Height45 mmWidth102 mmDepth32 mm: . Height: 45 mm. Width: 102 mm. Depth: 32 mm
