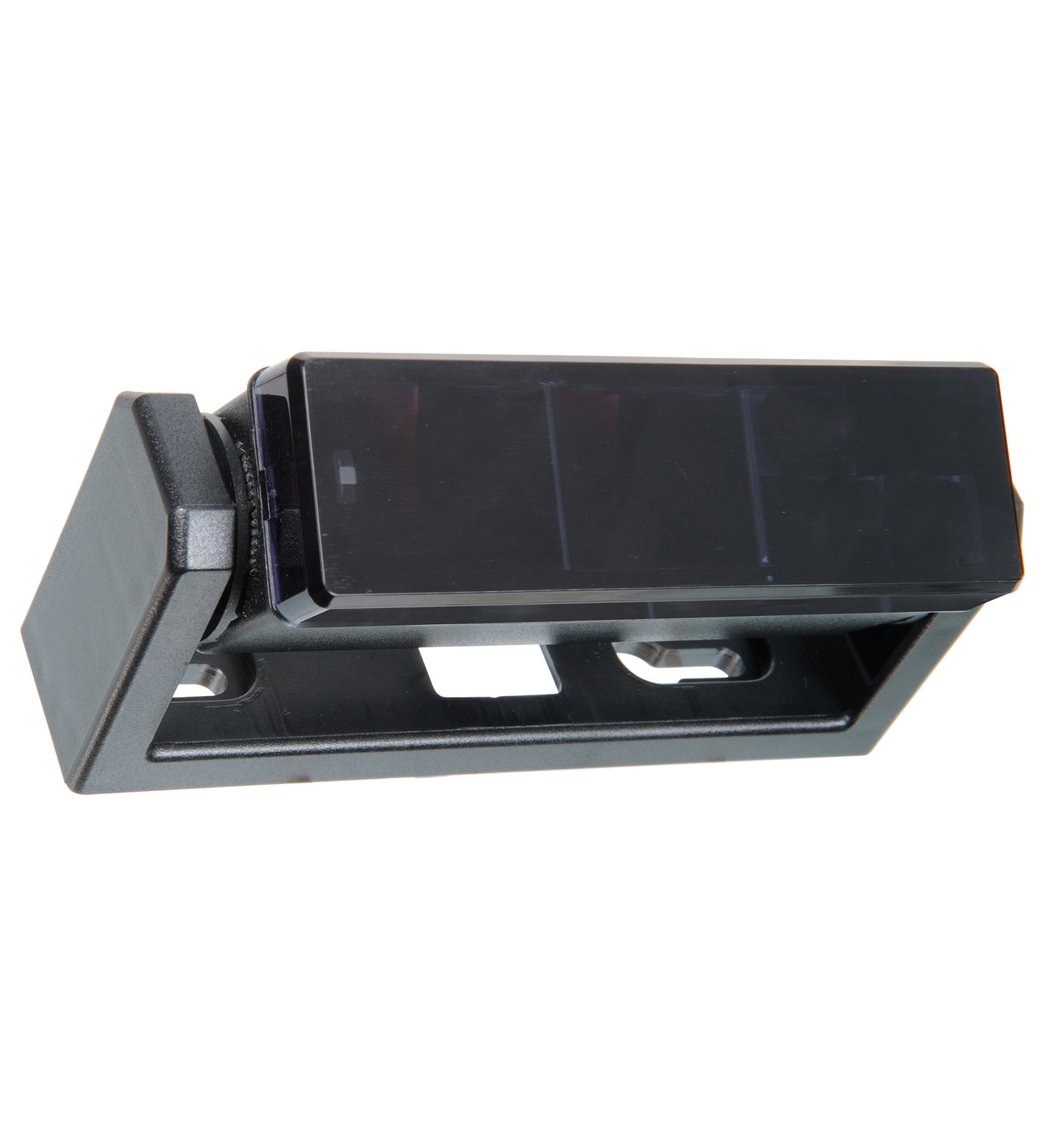

PROSCAN/38a
Active infrared scanner. Fan-shaped detection field with up to 12 beams, Closing safety monitoring over the complete door width, Adjustable detection fields for different door widths, Automatic drift...
Active infrared scanner. Fan-shaped detection field with up to 12 beams, Closing safety monitoring over the complete door width, Adjustable detection fields for different door widths, Automatic drift compensation, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 12 ... 38 V DC / 12 ... 28 V AC, Signal output: Relay, 1 alternator, Connection: 5 m fixed cable. Detection field: total field: 2300 mm x 80 mmleft/right field: 1150 mm x 80 mmcenter field: 1000 mm x 80 mm || (installation height: 2 m). Light source: 12 x IRED. Light type: modulated infrared light. Teach-in time: approx. 4 s. Open time: 3 min/10 s, programmable. Accessories provided: Swivel bracket, Mounting bracket. MTTFd: 780 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Function indicator: LED red: on for object detection, flashes during teaching phase. Control elements: Programmble switch for switching type, open time, detection field. Operating voltage: 12 ... 38 V DC / 12 ... 28 V AC. Ripple: 10 %. No-load supply current: 100 mA. Power consumption: 3 VA. Switching type: Output active / inactive programmable. Signal output: Relay, 1 alternator. Switching voltage: 48 V DC. Switching current: 1 A at 24 V DC. Response time: < 50 ms. De-energized delay: 200 ms. Standard conformity: . Product standardEN 60947-5-2FlammabilityFlame retardant in accordance with UN/ECE-R118 or ISO 14572: . Product standard: EN 60947-5-2. Flammability: Flame retardant in accordance with UN/ECE-R118 or ISO 14572. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Mounting height: 1000 ... 2500 mm. Degree of protection: IP52. Connection: 5 m fixed cable. Material: . HousingPC/ABSOptical facePMMA: . Housing: PC/ABS. Optical face: PMMA. Mass: approx. 100 g. Dimensions: . Height45 mmWidth102 mmDepth32 mm: . Height: 45 mm. Width: 102 mm. Depth: 32 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
