PS1000-A6-12.16

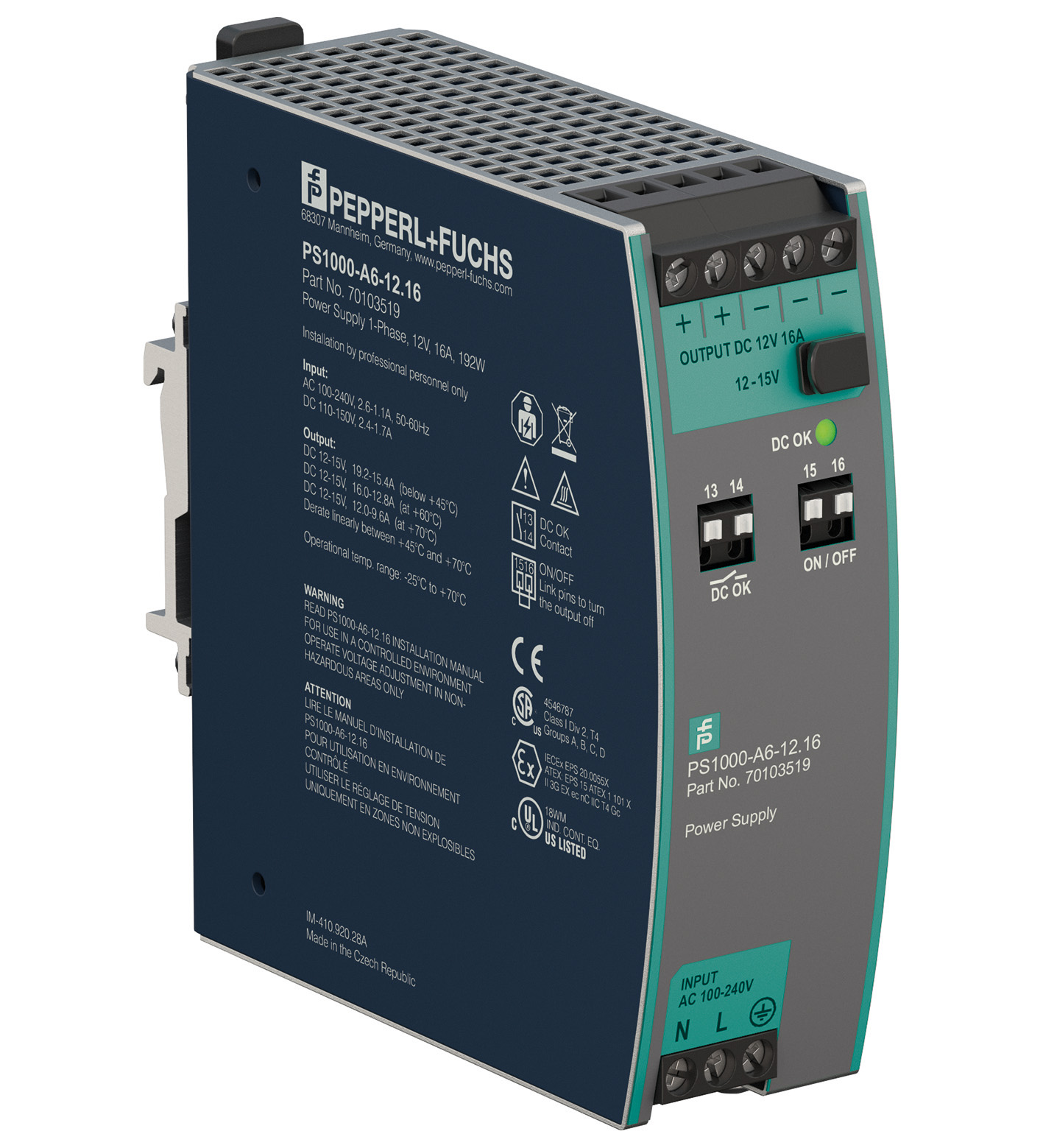

Power Supply. 100 V AC to 240 V AC wide-range input, Output 12 V DC, 16 A, 192 W, 1-phase, Housing width 39 mm, Efficiency up to 94.3 %, Minimal inrush current surge, Remote control for ON/OFF, DC OK...
Power Supply. 100 V AC to 240 V AC wide-range input, Output 12 V DC, 16 A, 192 W, 1-phase, Housing width 39 mm, Efficiency up to 94.3 %, Minimal inrush current surge, Remote control for ON/OFF, DC OK relay contact, Suitable for Zone 2/Div. 2 mounting, Device type: device for DIN rail mounting, Function: Standard, Rated voltage: 12 V DC, Voltage range: 12 ... 15 V DC <BR>factory setting: 12 V. Efficiency: 92.8 % at 120 V AC 94.3 % at 230 V AC. Power dissipation: 14.9 W at 120 V AC 11.6 W at 230 V AC. Voltage range: 100 ... 240 V AC (-15 %/+10 %), 50 ... 60 Hz (±6 %) 110 ... 150 V DC (±20 %). Current: 1.74 A at 120 V AC 0.92 A at 230 V AC 1.9 A at 110 V DC for lower output currents see technical information. Inrush current: 6 A peak at 120 V AC and ambient temperature 40 °C (104 °F) 9 A peak at 230 V AC and ambient temperature 40 °C (104 °F). Capacity factor: 0.99 at 120 V AC 0.96 at 230 V AC. Remote control: terminals 15-, 16+ remote control for ON/OFF. Rated voltage: 12 V DC. Voltage range: 12 ... 15 V DC factory setting: 12 V. Rated current: 16 A. Current: 19.2 ... 15.4 A at ambient temperature < 45 °C (113 °F) 16 ... 12.8 A at ambient temperature 60 °C (140 °F) 12 ... 9.6 A at ambient temperature 70 °C (158 °F) linear power derating see technical information. Power: 192 W. Ripple: max. 50 mV pp. Hold-up time: 50 ms at 120 V AC 50 ms at 230 V AC. Overload behavior: continuous current : output voltage > 6.5 V DC intermittent current : output voltage < 6.5 V DC. Short-circuit current: typ. 55 A for up to 12 ms, load impedance < 30 mΩ. Voltage limitation: typ. 18.2 V DC max. 19 V DC. Connection: terminals 13, 14. Output type: relay contact DC OK - contact is closed if the output voltage is > 90 % of the adjusted output voltage. Contact loading: max. 60 V DC/0.3 A ; 30 V DC/1 A ; 30 V AC/0.5 A resistive load min. 1 mA at 5 V DC. Input/Output: SELV/PELV. Display elements: LED green: status DC OK - LED lights up if the output voltage is > 90 % of the adjusted output voltage. Control elements: potentiometer. Configuration: setting of the output voltage via potentiometer. Electromagnetic compatibility: . Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 , IEC/EN 61000-3-2 , IEC/EN 61000-3-3: . Directive 2014/30/EU: IEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4 , IEC/EN 61000-3-2 , IEC/EN 61000-3-3. Low voltage: . Directive 2014/35/EUEN 61010-1: . Directive 2014/35/EU: EN 61010-1. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000:2019: . Directive 2011/65/EU (RoHS): IEC/EN 63000:2019. Degree of protection: EN 60529. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F) , see technical information. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 5 ... 95 %, noncondensing. Shock resistance: 20 g , 11 ms or 30 g , 6 ms. Vibration resistance: 2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 2 g. Housing material: aluminum alloy , galvanized steel. Degree of protection: IP20. Connection: . Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 NmRelay contact outputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mmRemote controlspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm: . Input/Output: screw terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 Nm. Relay contact output: spring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm. Remote control: spring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm. Mass: approx. 600 g. Dimensions: 39 x 124 x 117 mm (W x H x D) , without DIN mounting rail. Height124 mmWidth39 mmDepth117 mm: . Height: 124 mm. Width: 39 mm. Depth: 117 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. ATEX approval: . ATEX certificateEPS 15 ATEX 1101 XATEX marking II 3G Ex ec nC II T4 Gc: . ATEX certificate: EPS 15 ATEX 1101 X. ATEX marking: II 3G Ex ec nC II T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015+A1:2018 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-7:2015+A1:2018 , EN 60079-15:2010. UL approval: E223176. IECEx approval: . IECEx certificateIECEx EPS 20.0055XIECEx markingEx ec nC IIC T4 GcStandardsIEC 60079-0:2017 , IEC 60079-7:2017 , IEC 60079-15:2017: . IECEx certificate: IECEx EPS 20.0055X. IECEx marking: Ex ec nC IIC T4 Gc. Standards: IEC 60079-0:2017 , IEC 60079-7:2017 , IEC 60079-15:2017. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
