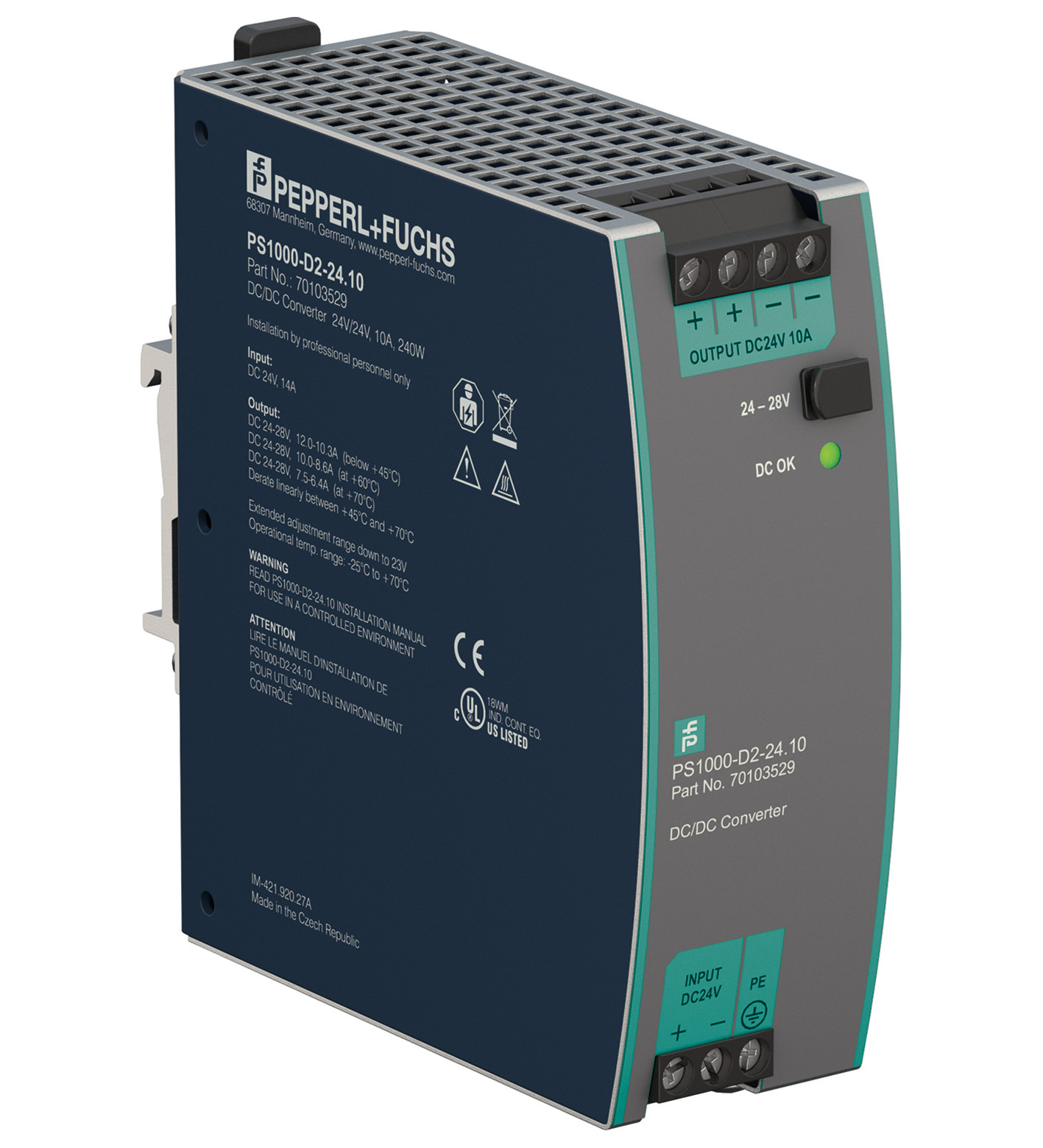

PS1000-D2-24.10
DC/DC Converter. 24 V DC input, Isolated output 24 V DC, 10 A, 240 W, Housing width 42 mm, Efficiency up to 94.2 %, Minimal inrush current surge, Reverse input polarity protection, 20 % output power r...
DC/DC Converter. 24 V DC input, Isolated output 24 V DC, 10 A, 240 W, Housing width 42 mm, Efficiency up to 94.2 %, Minimal inrush current surge, Reverse input polarity protection, 20 % output power reserves, Device type: device for DIN rail mounting, Function: Standard, Voltage range: 24 ... 28 V DC <BR>factory setting: 24.1 V. Efficiency: 94.2 %. Power dissipation: 14.8 W. Rated voltage: 24 V DC. Voltage range: 18 ... 35 V DC. Current: 10.5 mA at 24 V DC. Inrush current: 6 A peak at ambient temperature 25 °C (77 °F). Voltage range: 24 ... 28 V DC factory setting: 24.1 V. Rated current: 10 A. Current: 12 ... 10.3 A at ambient temperature < 45 °C (113 °F) 10 ... 8.6 A at ambient temperature 60 °C (140 °F) 7.5 ... 6.4 A at ambient temperature 70 °C (158 °F) linear power derating see technical information. Power: 240 W. Ripple: max. 50 mV pp. Hold-up time: 4 ms at 24 V DC. Short-circuit current: max. 15 A. Input/Output: SELV/PELV. Display elements: LED green: status DC OK - LED lights up if the output voltage is > 21 V. Control elements: potentiometer. Configuration: setting of the output voltage via potentiometer. Electromagnetic compatibility: . Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4: . Directive 2014/30/EU: IEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4. Low voltage: . Directive 2014/35/EUEN 61010-1: . Directive 2014/35/EU: EN 61010-1. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000:2019: . Directive 2011/65/EU (RoHS): IEC/EN 63000:2019. Degree of protection: EN 60529. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F) , see technical information. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 5 ... 95 %, noncondensing. Shock resistance: 20 g , 11 ms or 30 g , 6 ms. Vibration resistance: 2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 2 g. Housing material: aluminum alloy , galvanized steel. Degree of protection: IP20. Connection: . Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 Nm: . Input/Output: screw terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 1 Nm. Mass: approx. 500 g. Dimensions: 42 x 124 x 117 mm (W x H x D) , without DIN mounting rail. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. UL approval: E223176. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
