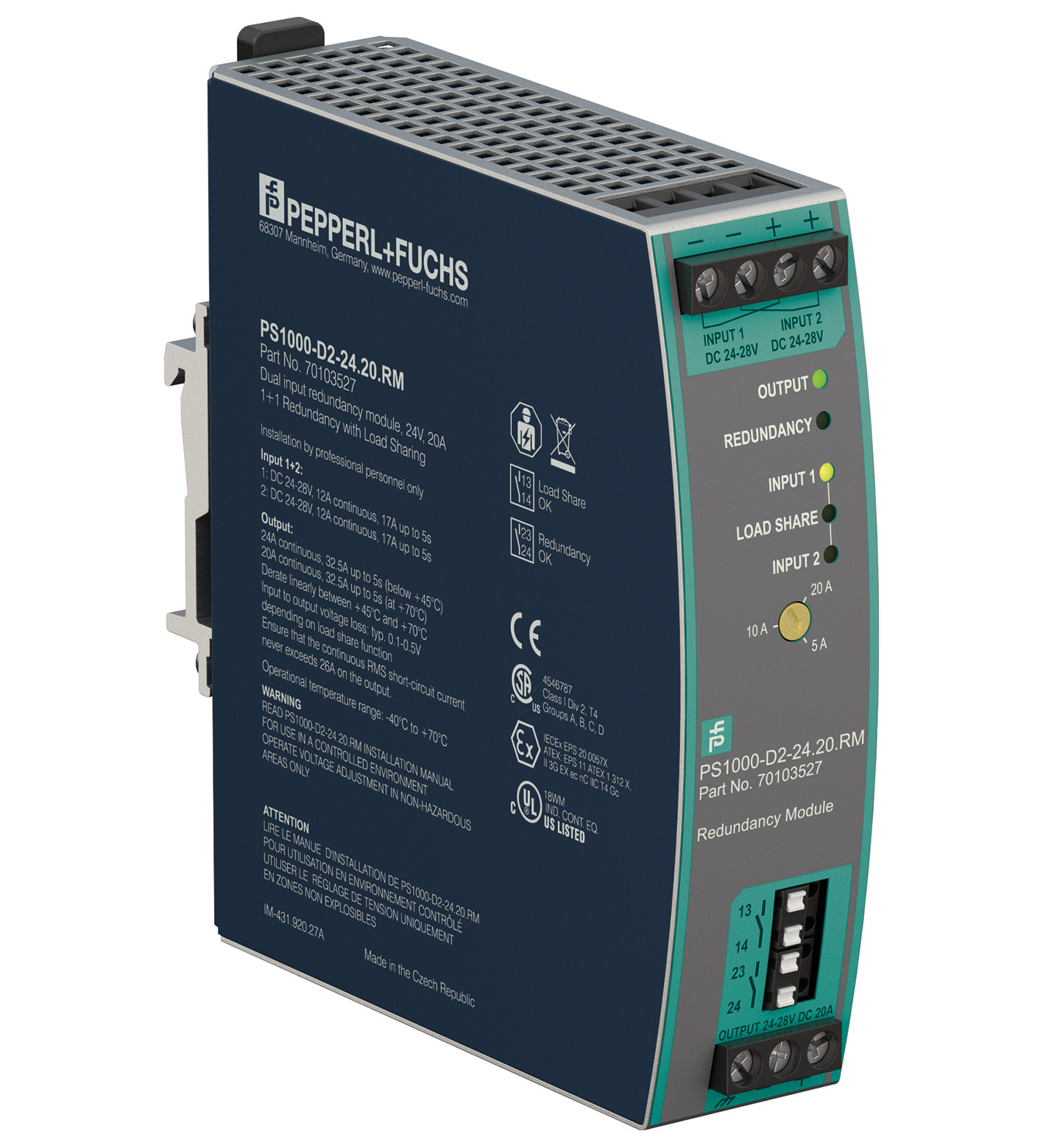

PS1000-D2-24.20.RM

Redundancy Module. 24 V DC to 28 V DC input, 2 inputs with 1 output, Output 24 V DC, 20 A, Housing width 32 mm, Built-in decoupling mosfets for 1+1 and N+1 redundancy, Automatic load sharing, Reverse...

Redundancy Module. 24 V DC to 28 V DC input, 2 inputs with 1 output, Output 24 V DC, 20 A, Housing width 32 mm, Built-in decoupling mosfets for 1+1 and N+1 redundancy, Automatic load sharing, Reverse input polarity protection, Easy wiring: distribution terminal for negative pole included, Redundancy status indicator, Suitable for Zone 2/Div. 2 mounting, Device type: device for DIN rail mounting, Function: Redundancy Module, Voltage range: 24 ... 28 V DC. Voltage drop: input to output 0.1 ... 0.5 V at input 2 x 5 A 0.2 ... 0.5 V at input 2 x 10 A 0.24 ... 0.5 V at input 2 x 12 A load share dependent. Power dissipation: 1.7 W no load 2.6 ... 4.7 W at input 2 x 5 A 5.6 ... 8.7 W at input 2 x 10 A. Rated voltage: 24 ... 28 V. Voltage range: 18 ... 35 V DC. Current: 2 x 12 A at ambient temperature < 45 °C (113 °F) 2 x 10 A at ambient temperature 70 °C (158 °F) 2x 17 mA for max. 5 s for lower output currents see technical information. Voltage range: 24 ... 28 V DC. Current: 24 A at ambient temperature < 45 °C (113 °F) 20 A at ambient temperature < 70 °C (158 °F) 32.5 A for max. 5 s max. 26 A in overload or short circuit mode (voltage < 6 V DC). Connection: terminals 13, 14 : relay contact load share terminals 23, 24 : relay contact redundancy. Output type: relay contact load share - contact is closed if the adjustment of the output voltages are sufficient - contact is open if an even load share does not occur and readjustment of the output voltage is required relay contact redundancy - contact is closed if no fault is detected - contact is open if one or both input voltages are below 22 V DC or above 30 V DC- contact is open if the output current is higher than the adjusted value of the output current- contact is open if an internal defect of the device is detected. Contact loading: max. 60 V DC/0.3 A ; 30 V DC/1 A ; 30 V AC/0.5 A resistive load min. 1 mA at 5 V DC. Input/Output: SELV/PELV. Display elements: LED green: output status- LED lights up if the output current is smaller than the adjusted value of the output current LEDs green: load share status- LEDs indicate the load share status between the two power supplies LED green: redundancy status- LED lights up if no fault is detected- LED flashes if one ore both input values are below 22 V or above 30 V- LED flashes if the output current is higher than the adjusted value of the output current- LED flashes if an internal defect is detected. Control elements: rotary switch. Configuration: setting of the output current via rotary switch - switch setting to 5 A in combination with two 5A power supplies (1+1 redundancy)- switch setting to 10 A in combination with two 10A power supplies (1+1 redundancy)- switch setting to 20 A for N+1 redundant systems. Electromagnetic compatibility: . Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4: . Directive 2014/30/EU: IEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4. Low voltage: . Directive 2014/35/EUEN 61010-1: . Directive 2014/35/EU: EN 61010-1. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000:2019: . Directive 2011/65/EU (RoHS): IEC/EN 63000:2019. Degree of protection: EN 60529. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F) , see technical information. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 5 ... 95 %, noncondensing. Shock resistance: 20 g , 11 ms or 30 g , 6 ms. Vibration resistance: 2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 2 g. Housing material: aluminum alloy , galvanized steel. Degree of protection: IP20. Connection: . Input/Outputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 0.8 NmRelay contact outputspring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm: . Input/Output: screw terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: max. 0.8 Nm. Relay contact output: spring terminals conductor cross section: max. 1.5 mm2 (AWG 24-16) cable diameter: max. 1.6 mm, wire end ferrules included stripped insulation length: 7 mm. Mass: approx. 310 g. Dimensions: 32 x 124 x 117 mm (W x H x D) , without DIN mounting rail. Height124 mmWidth32 mmDepth117 mm: . Height: 124 mm. Width: 32 mm. Depth: 117 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. ATEX approval: . ATEX certificateEPS 11 ATEX 1 312 XATEX marking II 3G Ex ec nC II T4 Gc: . ATEX certificate: EPS 11 ATEX 1 312 X. ATEX marking: II 3G Ex ec nC II T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010. UL approval: E223176. IECEx approval: . IECEx certificateIECEx EPS 20.0057XIECEx markingEx ec nC IIC T4 GcStandardsIEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010: . IECEx certificate: IECEx EPS 20.0057X. IECEx marking: Ex ec nC IIC T4 Gc. Standards: IEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
