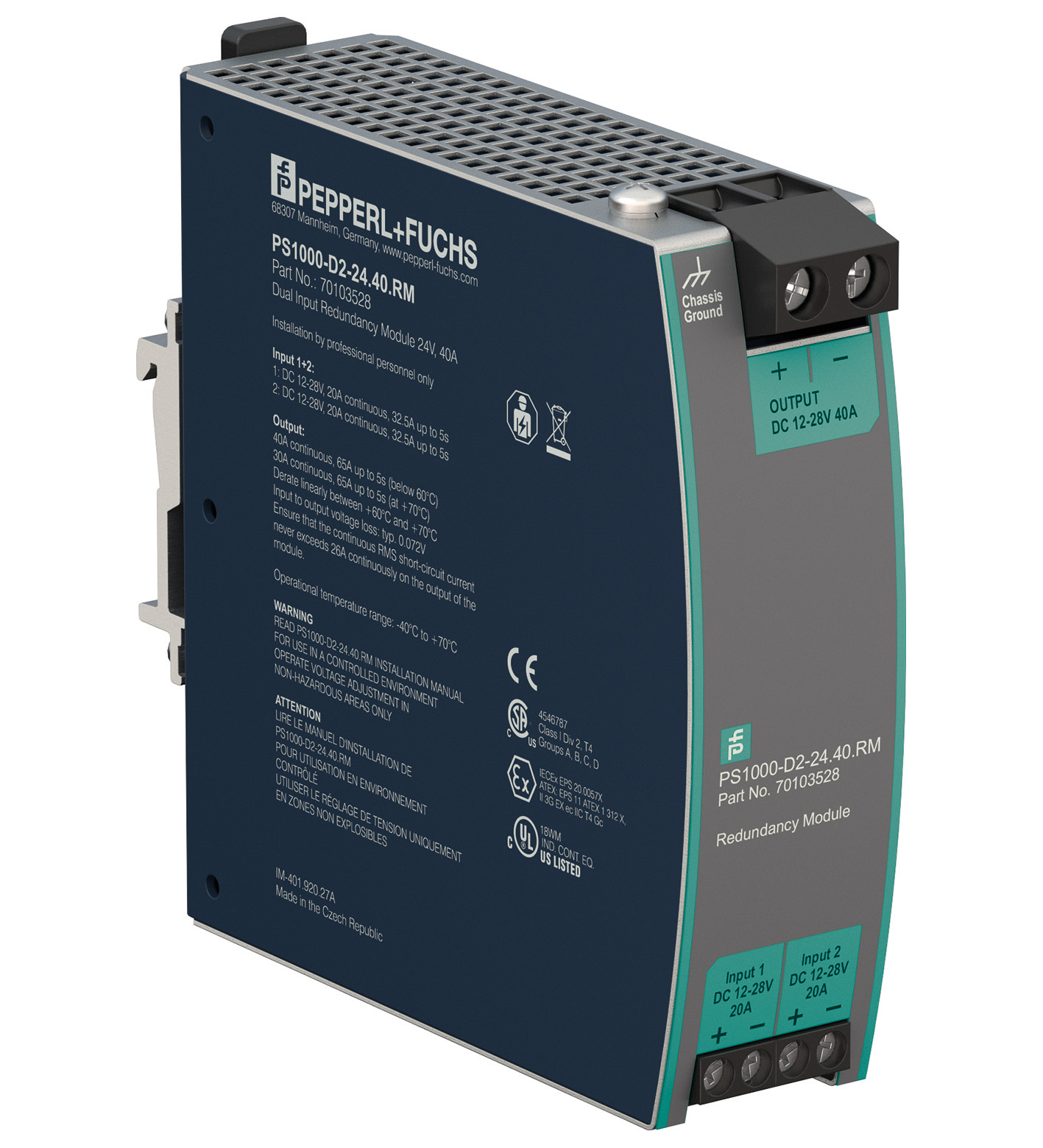

PS1000-D2-24.40.RM

Redundancy Module. 12 V DC to 28 V DC input, 2 inputs with 1 output, Output 24 V DC, 40 A, Housing width 36 mm, Built-in decoupling mosfets for 1+1 and N+1 redundancy, Only 72 mV voltage drop at 20 A...

Redundancy Module. 12 V DC to 28 V DC input, 2 inputs with 1 output, Output 24 V DC, 40 A, Housing width 36 mm, Built-in decoupling mosfets for 1+1 and N+1 redundancy, Only 72 mV voltage drop at 20 A output current, Only 1.7 W loss at 2 x 10 A and 5.9 W at 2 x 20 A input current, Reverse input polarity protection, Suitable for Zone 2/Div. 2 mounting, Device type: device for DIN rail mounting, Function: Redundancy Module, Voltage range: 12 ... 28 V DC. Voltage drop: input to output 72 mV at input 2 x 10 A 140 mV at input 2 x 20 A. Power dissipation: 0.23 W no load 1.7 W at input 2 x 10 A 5.9 W at input 2 x 20 A. Rated voltage: 12 ... 28 V. Voltage range: 8.4 ... 36.4 V DC. Current: 2 x 20 A at ambient temperature < 60 °C (140 °F) 2 x 15 A at ambient temperature 70 °C (158 °F) 2 x 20 ... 32.5 A for up to 5 s for lower output currents see technical information. Voltage range: 12 ... 28 V DC. Current: 40 A at ambient temperature < 60 °C (140 °F) 30 A at ambient temperature < 70 °C (158 °F) 65 A for up to 5 s max. 26 A in overload or short circuit mode (voltage < 6 V DC). Input/Output: SELV/PELV. Electromagnetic compatibility: . Directive 2014/30/EUIEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4: . Directive 2014/30/EU: IEC/EN 61000-6-1 , IEC/EN 61000-6-2 , IEC/EN 61000-6-3 , IEC/EN 61000-6-4. Low voltage: . Directive 2014/35/EUEN 61010-1: . Directive 2014/35/EU: EN 61010-1. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000:2019: . Directive 2011/65/EU (RoHS): IEC/EN 63000:2019. Degree of protection: EN 60529. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F) , see technical information. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 5 ... 95 %, noncondensing. Shock resistance: 20 g , 11 ms or 30 g , 6 ms. Vibration resistance: 2 ... 17.8 Hz : ± 1.6 mm , 17.8 ... 500 Hz : 2 g. Corrosion resistance: IEC 60068-2-60, Method 4 ISA-71.04, severity level G3. Housing material: aluminum alloy , galvanized steel. Degree of protection: IP20. Connection: . Inputscrew terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: recommendet 0.8 NmOutputscrew terminals conductor cross section: max. 16 mm2 (AWG 22-8) cable diameter: max. 5.2 mm, wire end ferrules included stripped insulation length: 12 mm tightening torque: recommendet 1.2 Nm: . Input: screw terminals conductor cross section: max. 6 mm2 (AWG 20-10) cable diameter: max. 2.8 mm, wire end ferrules included stripped insulation length: 7 mm tightening torque: recommendet 0.8 Nm. Output: screw terminals conductor cross section: max. 16 mm2 (AWG 22-8) cable diameter: max. 5.2 mm, wire end ferrules included stripped insulation length: 12 mm tightening torque: recommendet 1.2 Nm. Mass: approx. 280 g. Dimensions: 36 x 124 x 127 mm (W x H x D) , without DIN mounting rail. Height124 mmWidth36 mmDepth127 mm: . Height: 124 mm. Width: 36 mm. Depth: 127 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. ATEX approval: . ATEX certificateEPS 11 ATEX 1 312 XATEX marking II 3G Ex ec II T4 Gc: . ATEX certificate: EPS 11 ATEX 1 312 X. ATEX marking: II 3G Ex ec II T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-7:2016 , EN 60079-15:2010. UL approval: E223176. IECEx approval: . IECEx certificateIECEx EPS 20.0057XIECEx markingEx ec IIC T4 GcStandardsIEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010: . IECEx certificate: IECEx EPS 20.0057X. IECEx marking: Ex ec IIC T4 Gc. Standards: IEC 60079-0:2011 , IEC 60079-7:2015 , IEC 60079-15:2010. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
