PSC2.CP.SR.26.26.16-Y7017109*

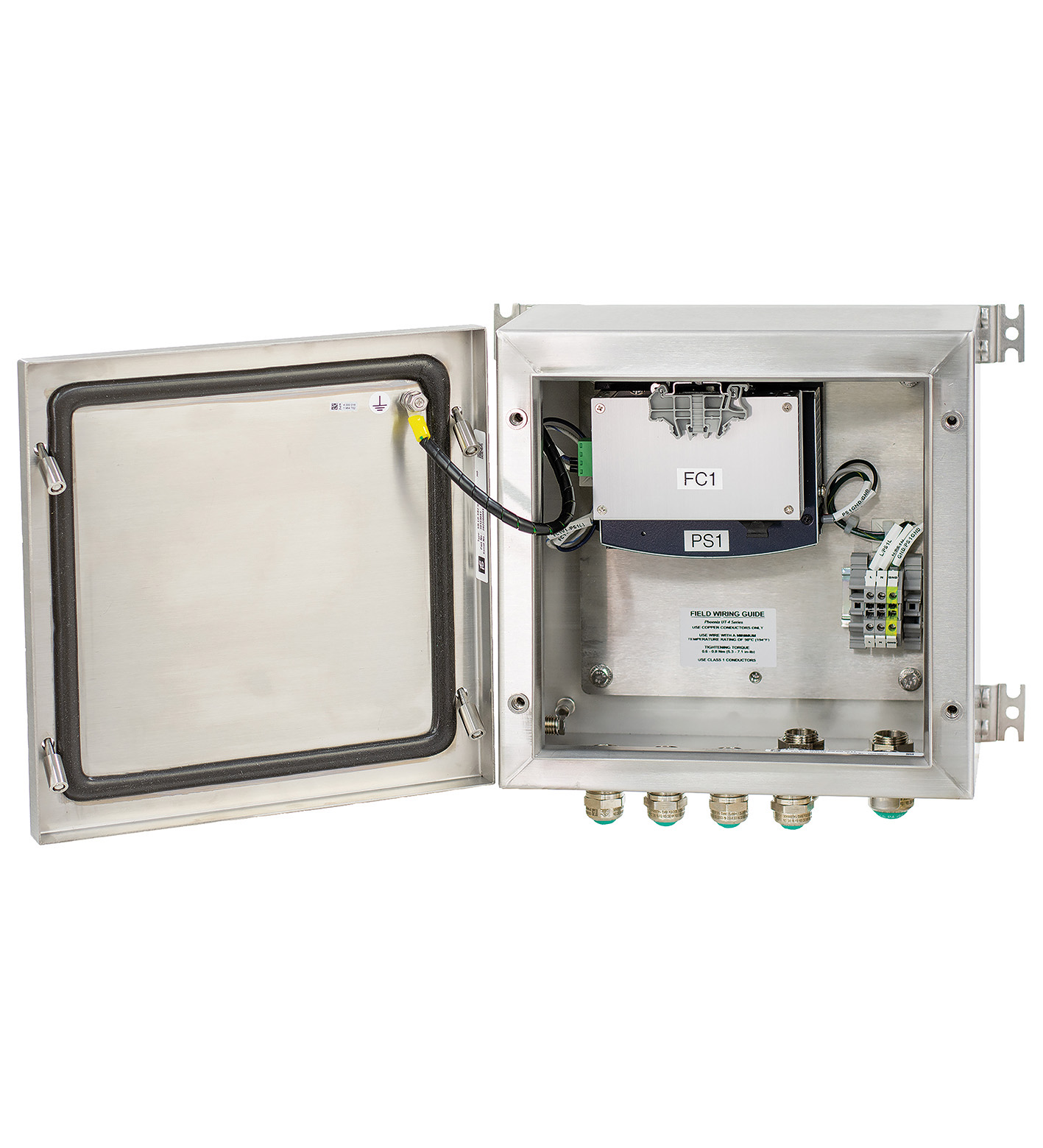

Fiber Optic Media Converter Box. Extended communication range: Fiber optics allow Ethernet devices to communicate over greater distances, enhancing network flexibility, Connect up to 4 Ethernet device...
Fiber Optic Media Converter Box. Extended communication range: Fiber optics allow Ethernet devices to communicate over greater distances, enhancing network flexibility, Connect up to 4 Ethernet devices to a fiber optic network: Enables integration of multiple devices, improving scalability and efficiency, Suitable for outdoor use: Stainless steel and high temperature rating make it suitable for extreme conditions. Rated voltage: AC: 100 ... 240 V 50/60 Hz DC: 24 V. Input current: AC: 1.09 A DC: 0.1 A. Interface type: Ethernet Interface4 x 10/100BaseT(X) Ports (RJ45 connector) All models support:- Auto negotiation speed- Full/half duplex mode- Auto MDI/MDI-X connection. Communication: IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control. Ambient temperature: -25 ... 50 °C (-13 ... 122 °F). Operating temperature: -20 ... 50 °C (-4 ... 122 °F). Relative humidity: 5 ... 95 %, non-condensing. Degree of protection: IP66 / Type 4X. Material: . Housing316L stainless steel Enclosure cover: Fully detachableCover fixing: Stainless steel A4 (V4A) hexagonal head screws, optional quarter-turn key locksSurfacebrushed finish: . Housing: 316L stainless steel Enclosure cover: Fully detachableCover fixing: Stainless steel A4 (V4A) hexagonal head screws, optional quarter-turn key locks. Surface: brushed finish. Dimensions: 260 mm x 260 mm x 160 mm. ETL approval: . ETL markingClass I Division 2 Groups ABCD T4Class II Division 2 Groups FG T135°CApproved forSuitable for Class I, Division 2 Groups B,C,D T4For ETLusNFPA 70 (NEC)UL50-2007UL50E-2007UL508AUL 121201 For cETLCSA C22.2 No.14CSA22.1-12 (CEC)CSA C22.2 No. 94.1-07CSA C22.2 No. 94.2-07CSA C22.2 No. 213: . ETL marking: Class I Division 2 Groups ABCD T4Class II Division 2 Groups FG T135°C. Approved for: Suitable for Class I, Division 2 Groups B,C,D T4For ETLusNFPA 70 (NEC)UL50-2007UL50E-2007UL508AUL 121201 For cETLCSA C22.2 No.14CSA22.1-12 (CEC)CSA C22.2 No. 94.1-07CSA C22.2 No. 94.2-07CSA C22.2 No. 213. Approved for: ATEX / IECEx Zone 2/22NEC Class I, II Div. 2
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
