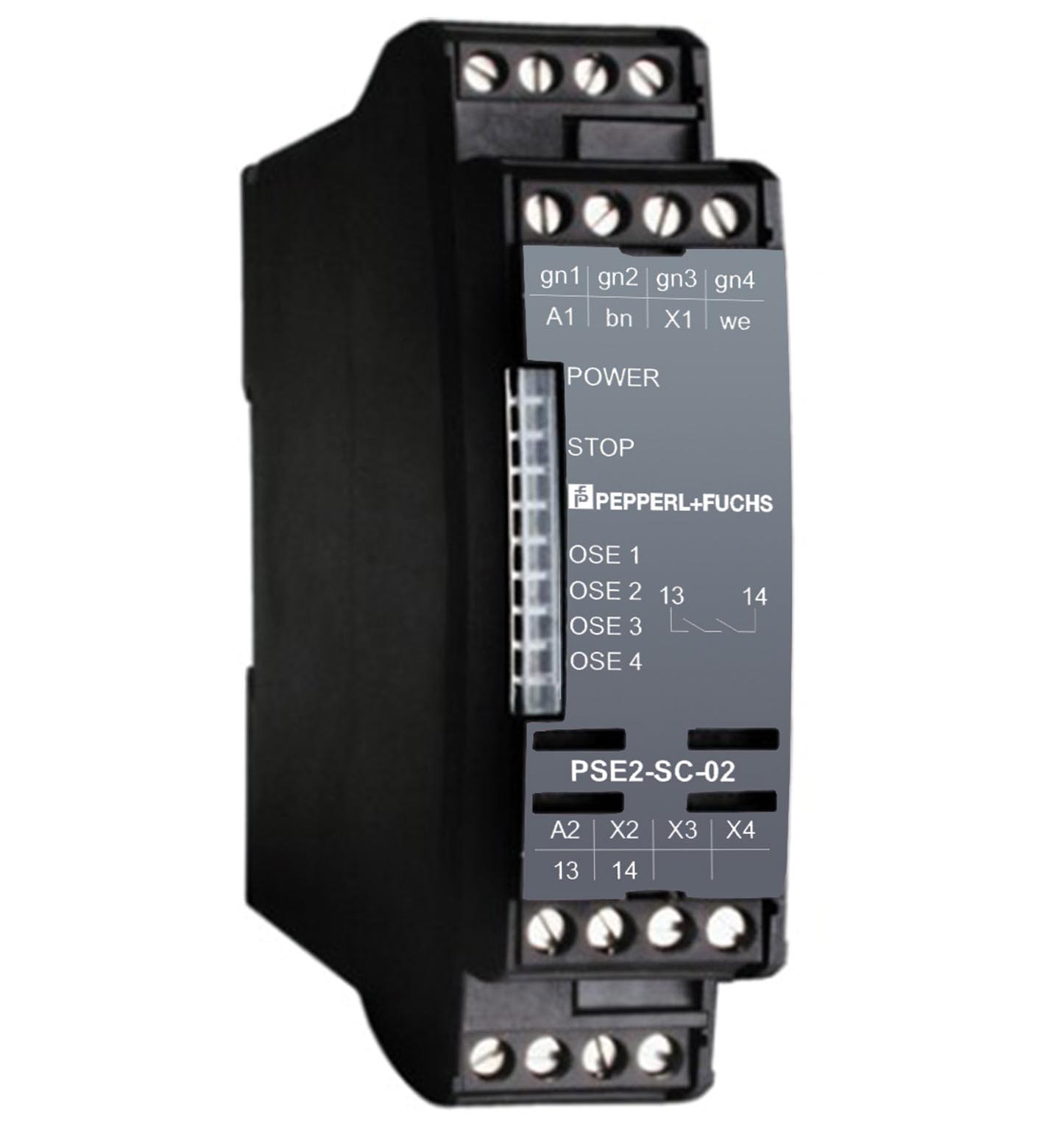

PSE2-SC-02
Safety control unit. Safety control unit, For evaluating safety thru-beam sensors PSE4-SL, Safety category 3 according to EN61496-1, 24 V DC supply voltage, 1 safe output contact, Performance level PL...
Safety control unit. Safety control unit, For evaluating safety thru-beam sensors PSE4-SL, Safety category 3 according to EN61496-1, 24 V DC supply voltage, 1 safe output contact, Performance level PLd (EN13849-1) is attainable, Component of PSE4 modular system, Number of channels: 4-channel, Performance level (PL): PL d, Category: Cat. 3, Operating voltage: 24 V DC +20/-10 % <BR>24 V AC ± 10 %, Connection: screw terminals , lead cross section 2 x 1 mm<sup>2</sup>. Permissible cable length: 200 m. Performance level (PL): PL d. Category: Cat. 3. MTTFd: 109 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 87 %. Operation indicator: LED green: Power on. Function indicator: LED green. Operating voltage: 24 V DC +20/-10 % 24 V AC ± 10 %. Power consumption: < 4 W. Surge protection: overvoltage category III. Signal output: relay, 1 NO. Switching voltage: 230 V AC / 24 V DC. Switching current: 3 A AC / 4 A DC. Mechanical life: > 107 switching cycles. Response time: 18 ms. Output type: Signal output, PNP, open collector. Switching voltage: UB - 1 V. Switching current: max. 50 mA. Functional safety: ISO 13849-1. Product standard: EN 12978 ; ISO 13856-2. TÜV approval: TÜV Rheinland 968/M 301.00/11. Ambient temperature: 5 ... 55 °C (41 ... 131 °F). Pollution degree: 2. Degree of protection: IP20. Connection: screw terminals , lead cross section 2 x 1 mm2. Material: PC / PA black. Mass: approx. 150 g. Dimensions: . Height100 mmWidth22.5 mmDepth120 mm: . Height: 100 mm. Width: 22.5 mm. Depth: 120 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
