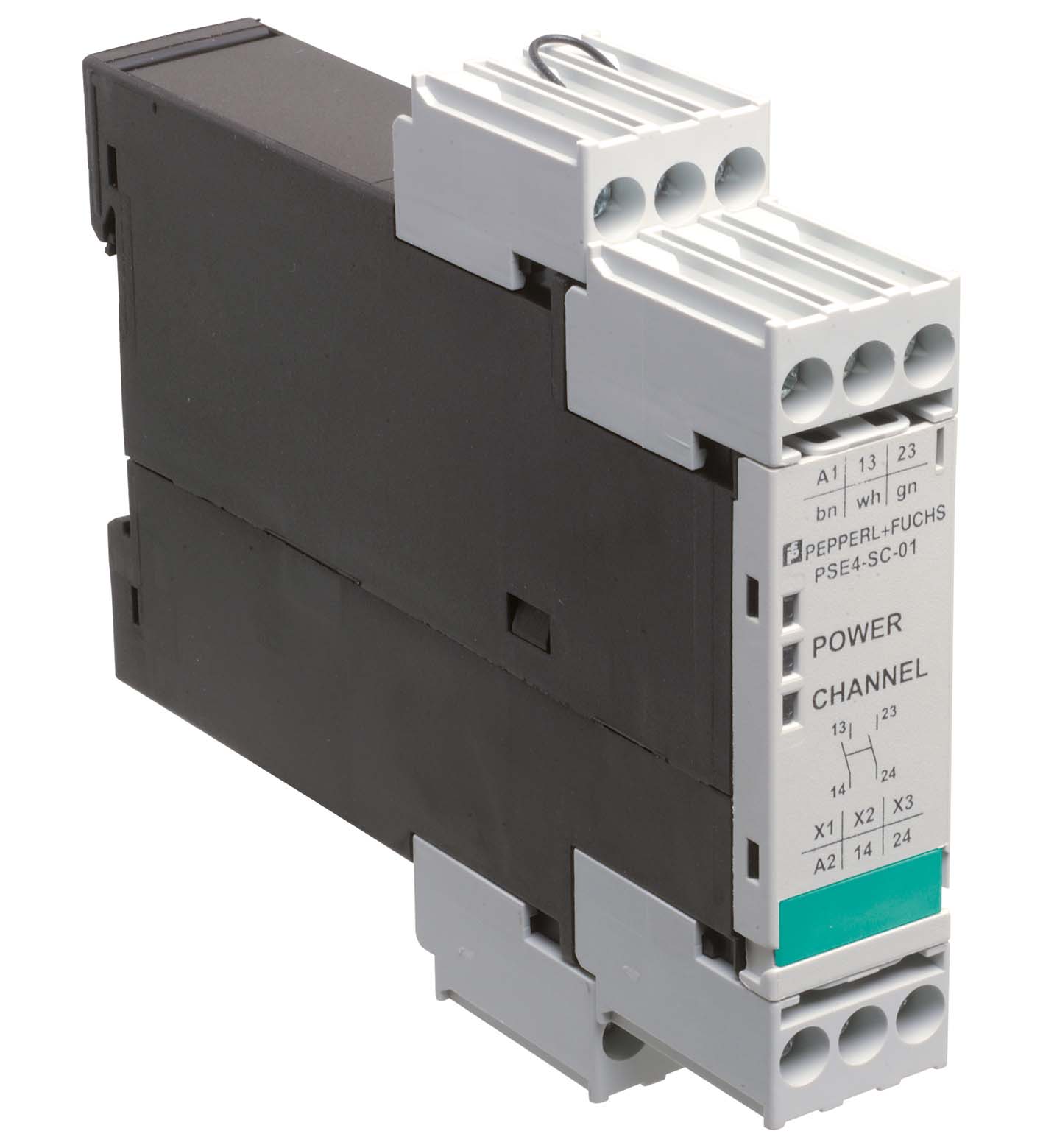

PSE4-SC-01
Safety control unit. Safety control unit, For evaluating safety thru-beam sensors PSE4-SL, Safety category 4 according to EN61496-1, 24 V DC supply voltage, 2 safe output contacts, Performance level P...
Safety control unit. Safety control unit, For evaluating safety thru-beam sensors PSE4-SL, Safety category 4 according to EN61496-1, 24 V DC supply voltage, 2 safe output contacts, Performance level PLe (EN13849-1) is attainable, Component of PSE4 modular system, Number of channels: 1-channel, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC +20/-10 %, Connection: screw terminals , Cable cross-section 0.2 ... 2.5 mm<sup>2</sup>. Permissible cable length: 200 m. Performance level (PL): PL e. Category: Cat. 4. MTTFd: 100 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 99 %. Operation indicator: LED green: Power on. Function indicator: LED green. Operating voltage: 24 V DC +20/-10 %. Power consumption: < 4 W. Signal output: relay, 2 NO. Switching voltage: max. 250 V AC/DC. Switching current: max. 4 A. Switching power: 1000 VA. Response time: 32 ms. Functional safety: ISO 13849-1. Product standard: EN 12978 ; ISO 13856-2. UL approval: cULus Listed File no: NRNT.E344450. TÜV approval: TÜV Rheinland 968/M 301.00/11. Ambient temperature: 5 ... 55 °C (41 ... 131 °F). Pollution degree: 2. Degree of protection: IP20. Connection: screw terminals , Cable cross-section 0.2 ... 2.5 mm2. Material: Polyethylene (PE). Mass: approx. 200 g. Dimensions: . Height100 mmWidth22.5 mmDepth120 mm: . Height: 100 mm. Width: 22.5 mm. Depth: 120 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
