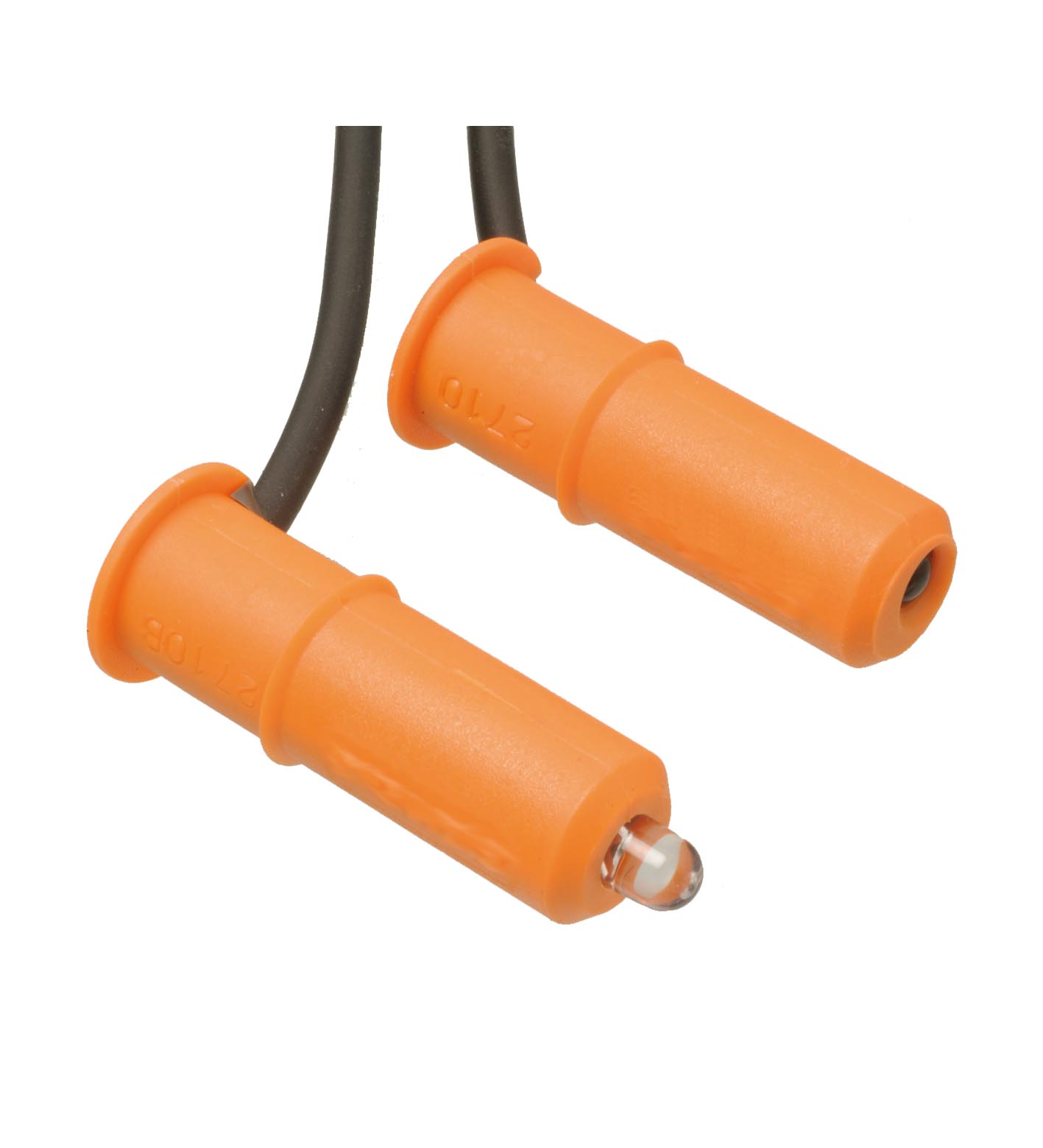

PSE4-SL-01

Safety edge. Safety thru-beam sensor, Evaluation via safety control unit PSE4-SC-01, Modulated infrared light, For mounting in sensor strip PSE4-RUB and -ROI, No additional mounting materials required...

Safety edge. Safety thru-beam sensor, Evaluation via safety control unit PSE4-SC-01, Modulated infrared light, For mounting in sensor strip PSE4-RUB and -ROI, No additional mounting materials required, Component of PSE4 modular system. Effective detection range: 0.4 ... 10 m. Number of protective field beams: 1. Light source: LED. Light type: modulated infrared light. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. Operating voltage: Power supply via control unit. Functional safety: ISO 13849-1. Product standard: EN 12978 ; ISO 13856-2. UL approval: cULus Listed File no: NRNT.E344450. TÜV approval: TÜV Rheinland 968/M 301.00/11. Ambient temperature: 5 ... 55 °C (41 ... 131 °F). Degree of protection: IP68. Connection: fixed cable Emitter: 10 m Receiver: 2.9 m. Mech. capacity: 500 N. Material: . HousingPolyethylene (PE) ; Emitter: gray / Receiver: blackCablePUR: . Housing: Polyethylene (PE) ; Emitter: gray / Receiver: black. Cable: PUR. Mass: per 150 g. Dimensions: . Length37 mmDiameter11 mm: . Length: 37 mm. Diameter: 11 mm

Brand	Pepperl Fuchs
Lifecycle status	active
